Deye Microinverter SUN-M160G4-EU-Q0 | 1600W 4 MPPT

₦283,500.00

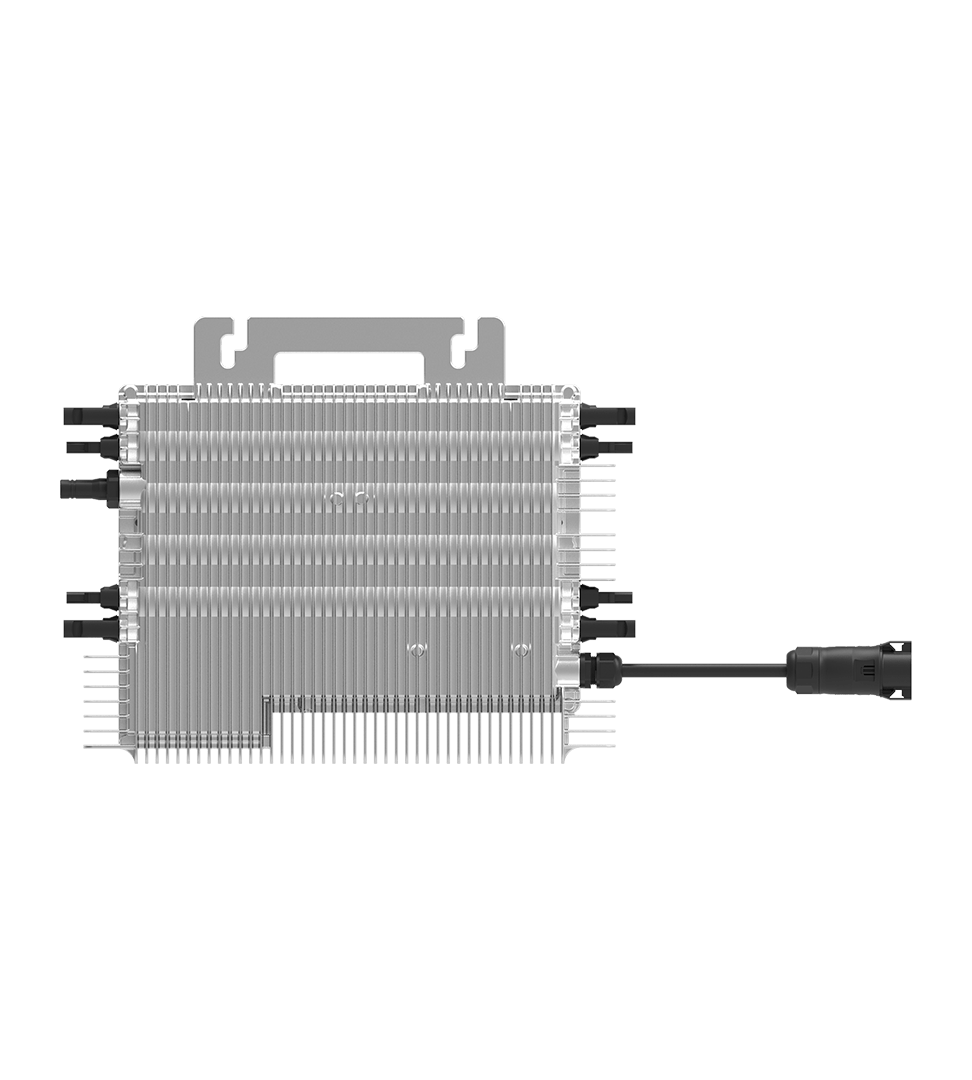

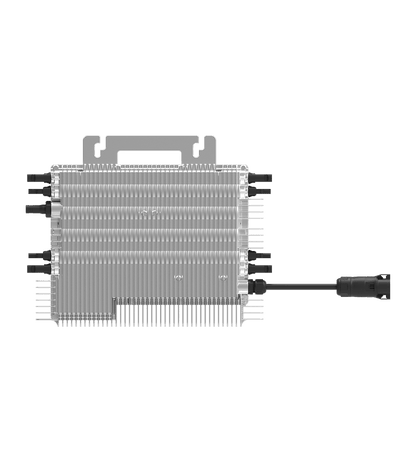

  • Front view, four DC pairs and AC lead

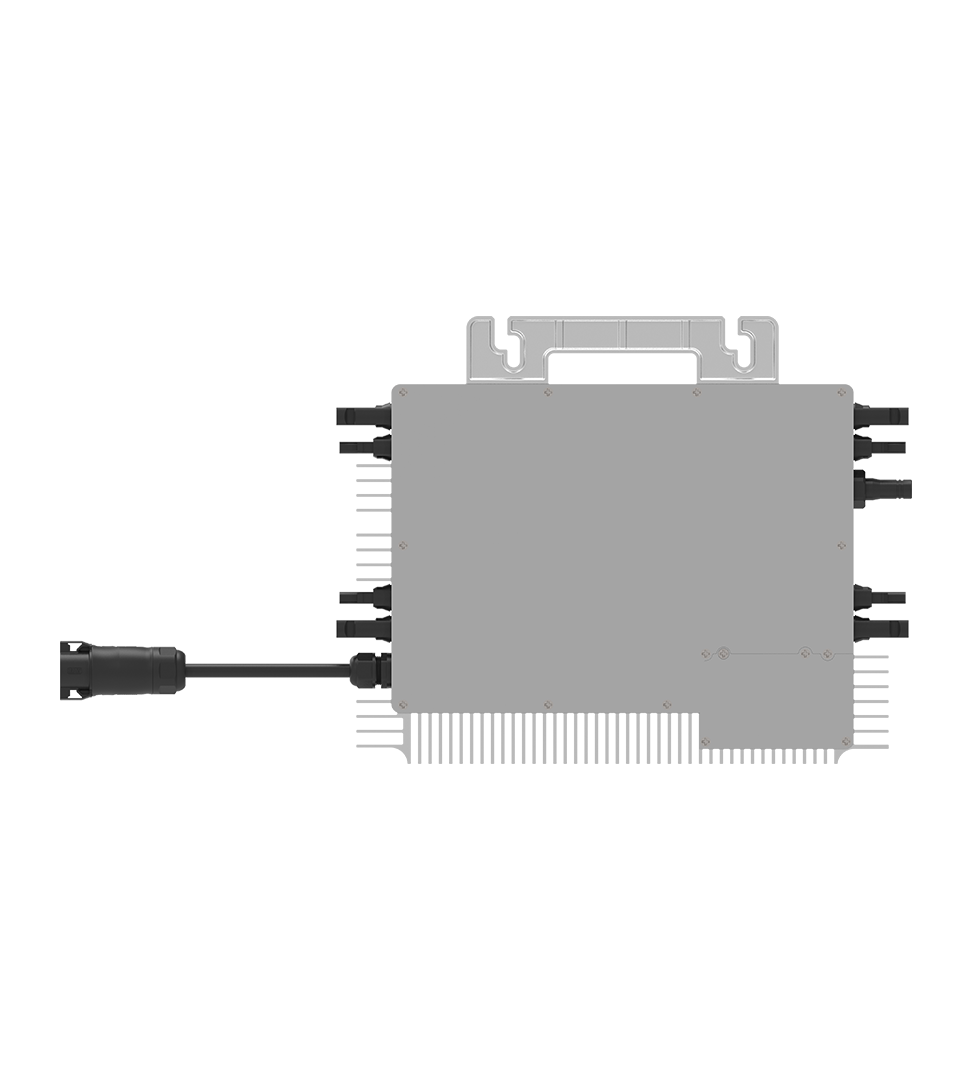

  • Rear view, 4-MPPT cabinet

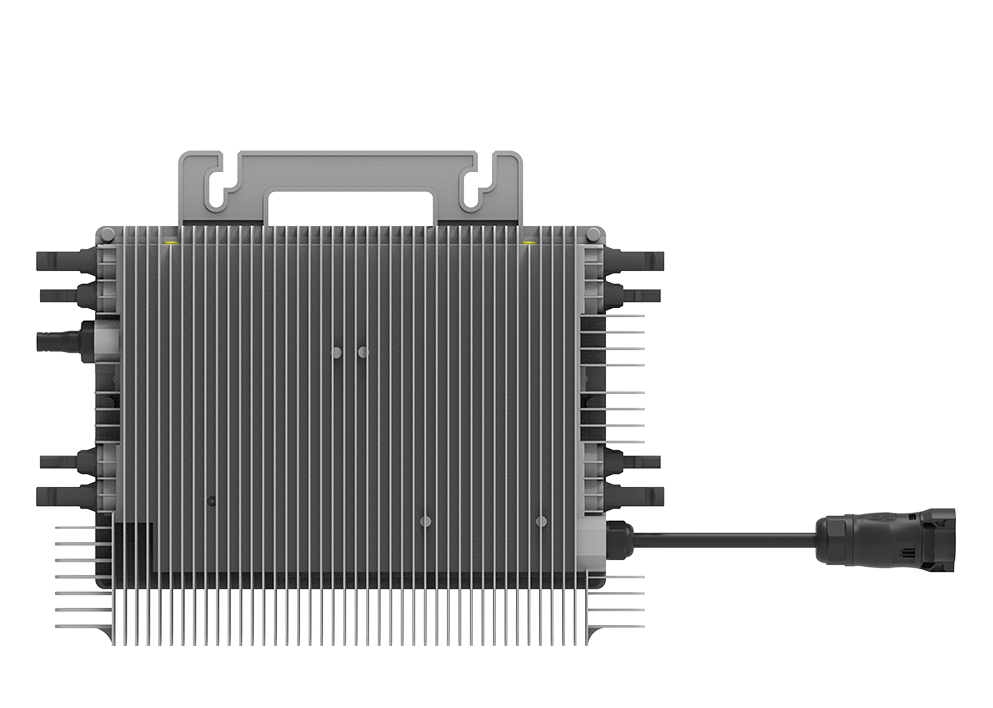

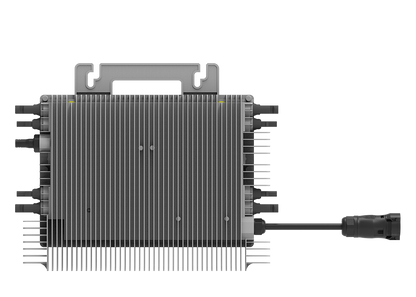

  • Angle view, IP67 fins

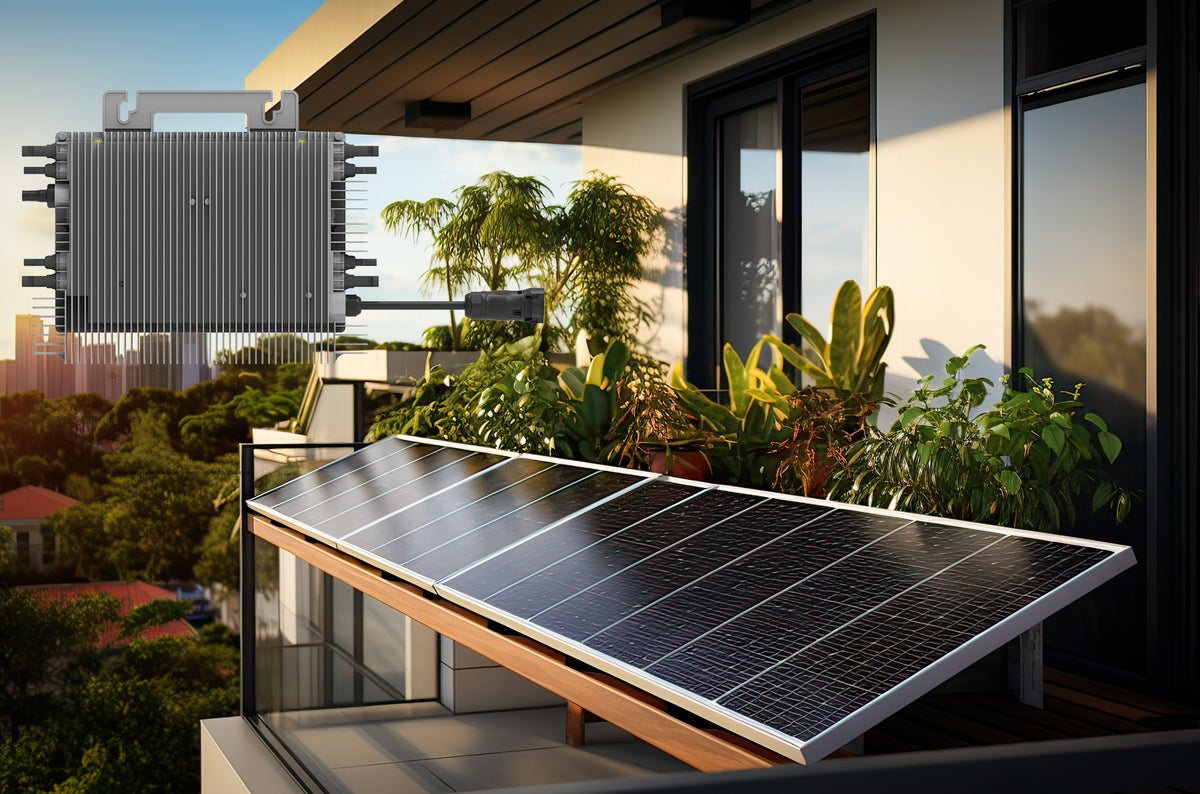

  • Balcony rail install
₦283,500.00
₦283,500.00
Tax included.
Low stock! Only 10 left

Deye G4 four-MPPT microinverter for four PV modules. 1600 W rated AC, 18A DC inputs, IP67, integrated Wi-Fi, bidirectional metering, and a 10-year warranty.

Key specifications

Model

SUN-M160G4-EU-Q0

Rated AC power

1600 W · 7.3 / 7 A (220/230 V)

PV pairing

210-560 W (4 modules) · 4 MPPTs, 1 string each

Max. / Euro / MPPT

96.5% / 96.0% / >99%

Input window

60 V max · 25-55 V MPPT · start-up 20 V · 18+18+18+18A

Protection

IP67 · isolated · rapid shutdown · anti-backflow metering

Size / weight

358 × 255.5 × 36.5 mm · 4.95 kg · natural cooling

Warranty

10 years

PV and AC output

Four MPPTs, one string each. Max PV voltage 60 V, MPPT 25-55 V, start-up 20 V, rated 42.5 V. Operating current 18+18+18+18A, short-circuit 27+27+27+27A. Recommended module set 210-560 W (4 modules).

Rated AC 1600 W / 1600 W VA, 7.3 / 7 A at 220/230 V (0.85Un-1.1Un), L/N/PE, 50/60 Hz. Up to 4 units per AC branch. THDi <3%, PF 0.9 lead to 0.9 lag.

Safety and monitoring

Rapid shutdown, anti-islanding, earth-fault detection, and Type II AC surge. Isolated topology, DC reverse polarity, AC overcurrent/overvoltage/short-circuit, thermal, and insulation monitoring.

Integrated Wi-Fi with bidirectional measurement records consumption and supports anti-backflow without extra CT wiring.

Mechanics and environment

Cabinet 358 × 255.5 × 36.5 mm excluding connectors and brackets, 4.95 kg, IP67, natural cooling, noise <=25 dB. Operating −40 to +65°C, humidity 0-100%, altitude 2000 m. OVC II (DC) / OVC III (AC).

Grid: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, VDE-AR-N 4105. Safety/EMC: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2. 10-year warranty.

Deye Microinverter SUN-M160G4-EU-Q0 | 1600W 4 MPPT

₦283,500.00

  • Max. / Euro

    96.5%

    conversion efficiency

  • Rated output

    1600W

    rated AC output

  • MPP trackers

    4

    independent module inputs

  • AC branch

    4

    units per AC branch

4-MPPT balcony microinverter

1600 W from four modules. Plug in and monitor on Wi-Fi.

SUN-M160G4-EU-Q0 is the 1600 W model in the SUN-M130/160/180/200/220G4-EU-Q0-I series. Four MPPTs, 18A DC, rapid shutdown, and bidirectional Wi-Fi metering for European balcony and small-roof PV.

Why this four-MPPT microinverter

Four module-level trackers, 18A DC inputs, Wi-Fi metering, and an IP67 cabinet for balcony rails and compact rooftops.

  • Four independent MPPTs

    Four trackers, one string each, keep module-level yield when a panel is shaded or facing a different way.

  • 18A DC input

    Each tracker accepts 18A / 27A short-circuit current, so the series can pair with modules up to 770 W.

  • Bidirectional metering

    Wi-Fi metering records consumption and supports anti-backflow without extra current-transformer wiring.

  • IP67 outdoor body

    Isolated topology, natural cooling, <=25 dB, and a 358 x 255.5 x 36.5 mm, 4.95 kg cabinet.
PV module 1
4-MPPT microinverter
Balcony socket
PV module 2
PV module 3
PV module 4
Wi-Fi monitor
  • 1600W rated AC
  • 4 MPPT one string each
  • Wi-Fi on-board monitor
  • 4 max. per branch

Balcony kit

Four modules. One plug. Wi-Fi metering.

Each tracker takes one module in the 210-560 W (4 modules) window at up to 18A. The AC lead is built for quick-plug kits. Bidirectional Wi-Fi metering records generation and consumption.

Safety stack
Isolated topology
Rapid shutdown
<100 ms discharge
NS self-check
Type II AC surge

Safety

Rapid shutdown. Isolated. Anti-backflow ready.

Rapid shutdown, earth-fault detection, Type II AC surge, and isolated topology. Bidirectional measurement on Wi-Fi supports anti-backflow without extra current transformers.

Specified for European balcony and small rooftops

  • Module-level monitoring

    Integrated Wi-Fi reports each tracker so you can see yield without a separate dongle.

  • European grid codes

    IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE R25, G98, VDE-AR-N 4105.

  • Protection suite

    Reverse polarity, AC overcurrent/overvoltage/short-circuit, thermal, insulation, anti-islanding, earth fault, Type II AC surge, rapid shutdown.

  • 10-year warranty

    IP67 cabinet and a 10-year warranty. Confirm cover for the installation country.
Specifications

Technical data

Model SUN-M160G4-EU-Q0
Series SUN-M130/160/180/200/220G4-EU-Q0-I
Max. PV input power 210-560 W (4 modules)
Max. PV voltage / start-up / MPPT 60 V · 20 V · 25-55 V · rated 42.5 V
PV current 18+18+18+18A operating · 27+27+27+27A short-circuit · 4 MPPT / 1 string
Rated AC power / apparent 1600 W / 1600 W VA
AC current (220/230 V) 7.3 / 7 A
Grid 220/230 V · 0.85Un-1.1Un · L/N/PE · 50/45-55, 60/55-65 Hz
Max. units per branch 4
Power factor / THDi / DC injection 0.9 lead-0.9 lag · THDi <3% · <0.5% In
Efficiency 96.5% max · 96.0% Euro · >99% MPPT
Communications Integrated Wi-Fi, bidirectional metering
Protection Rapid shutdown · anti-islanding · earth fault · Type II AC surge · isolated
Environment IP67 · −40 to +65°C · 0-100% RH · 2000 m · <=25 dB
Size / weight / cooling 358 × 255.5 × 36.5 mm · 4.95 kg · natural cooling
Grid codes IEC 61727, IEC 62116, CEI 0-21, EN 50549, G98, VDE-AR-N 4105, OVE R25
Safety / EMC IEC/EN 61000-6-1/2/3/4 · IEC/EN 62109-1/2
Warranty 10 years

How many PV modules does it take?

Four modules, one per MPPT. Recommended set is 210-560 W (4 modules). Max PV voltage is 60 V with a 25-55 V MPPT window and 18A per tracker.

How does this SKU differ from the rest of the G4-I series?

SUN-M160G4-EU-Q0 is rated 1600 W AC and pairs with four modules in the 210-560 W range, with up to 4 units on one AC branch. SUN-M200G4-EU-Q0 is 2000 W, 210-700 W modules, and 3 units per branch. Input voltage, 18A DC, efficiency, size, and protection are the same.

Does it support anti-backflow?

Yes. Bidirectional Wi-Fi measurement can record consumption and help prevent backflow, without extra current-transformer wiring. Follow local plug-in solar rules.

What warranty is included?

This product has a 10-year warranty and IP67 protection. Confirm cover for the installation country with Deye or your distributor.

Ready for a 1600 W four-module kit

Four MPPTs, 18A DC, IP67, Wi-Fi metering, and 10-year cover in a 4.95 kg cabinet.
