Deye Microinverter SUN-M100G4-EU-Q0 | 1000W 2 MPPT

₦200,200.00

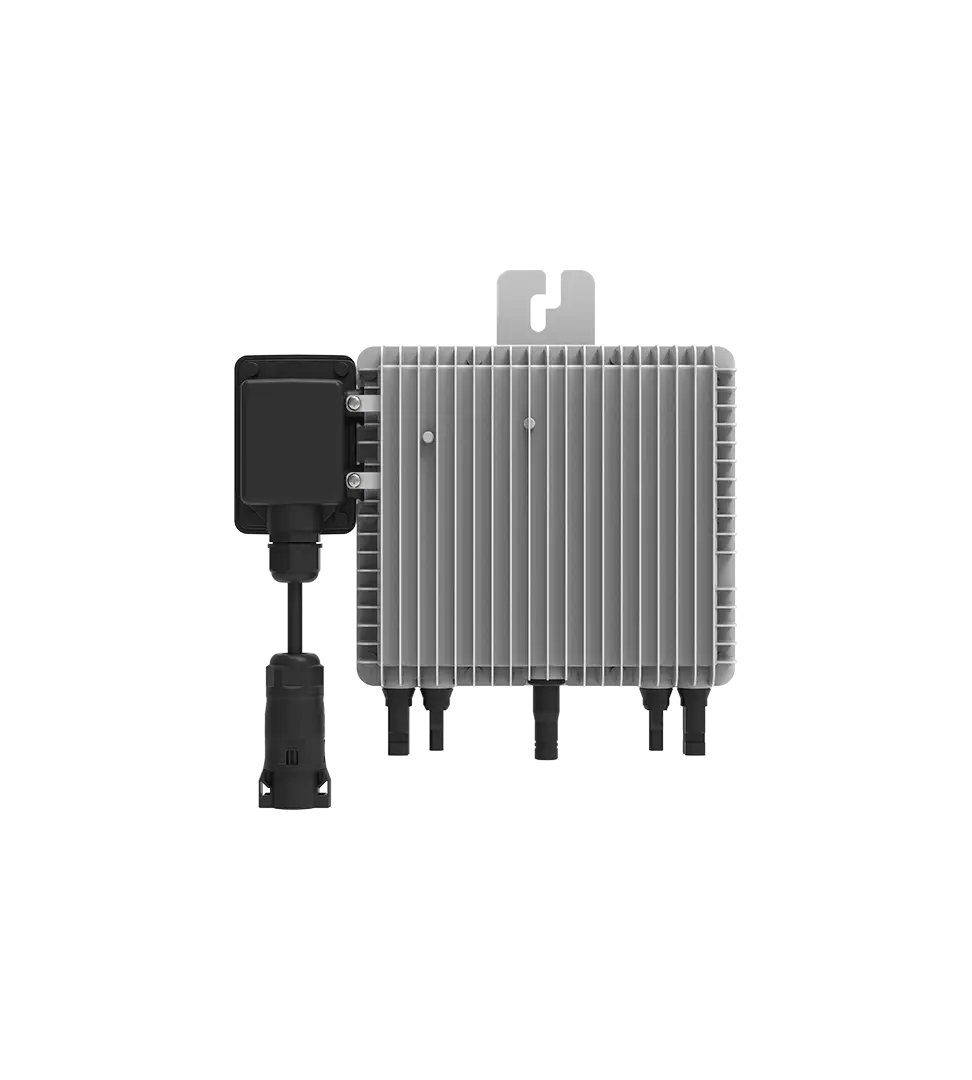

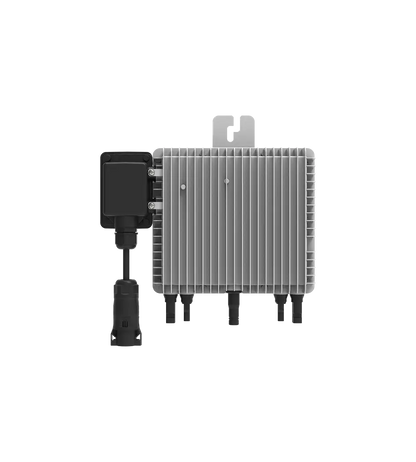

  • Front view, heatsink, DC pair and AC lead

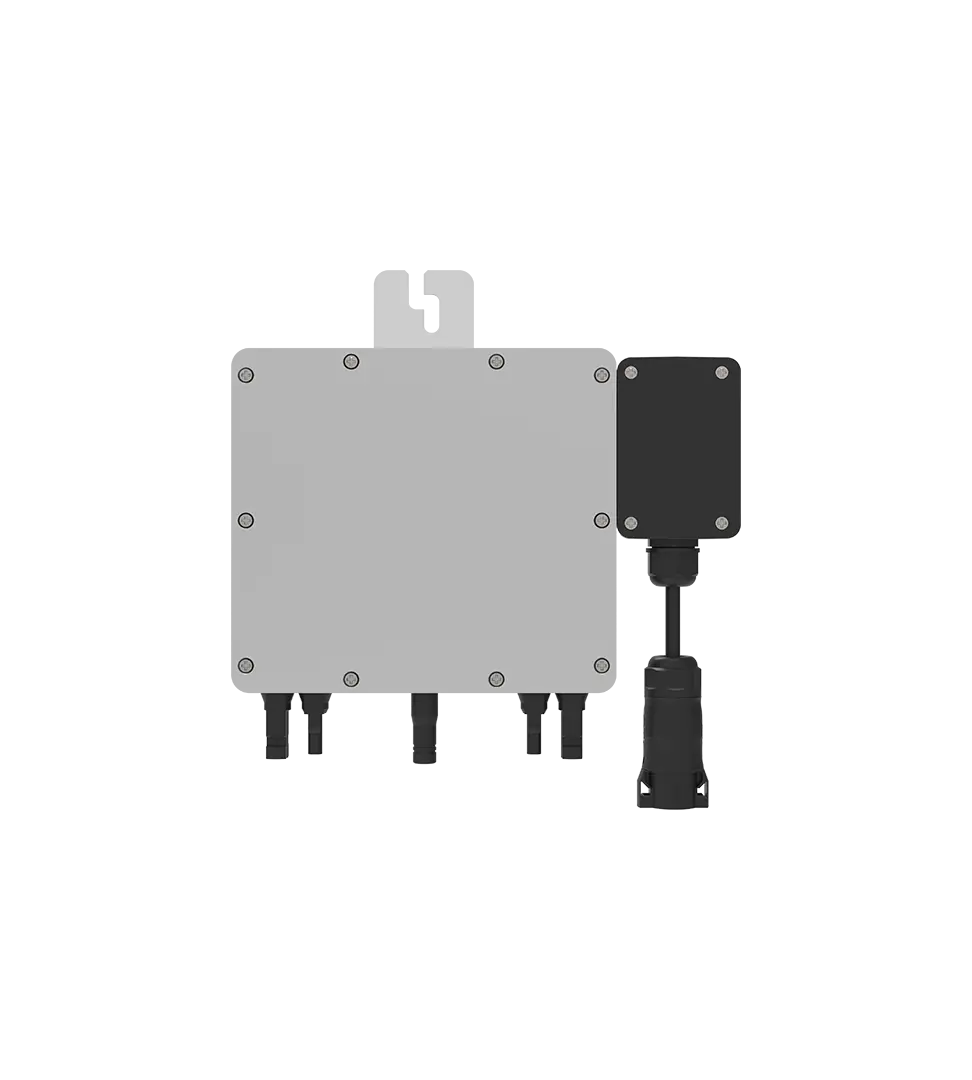

  • Rear view, hang-mount cabinet

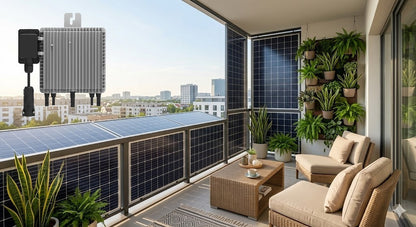

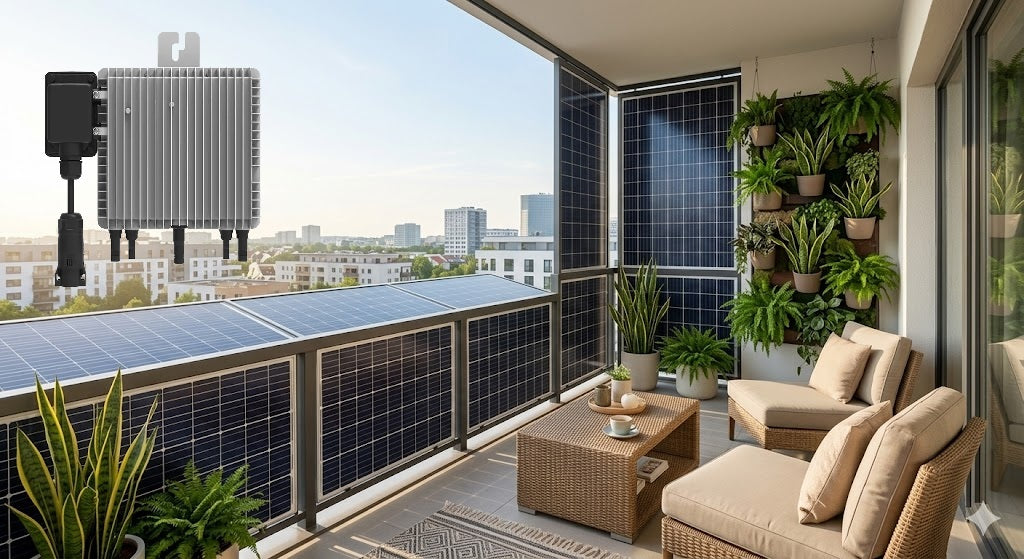

  • Two-module balcony install
₦200,200.00
₦200,200.00
Tax included.
Low stock! Only 10 left

Deye G4 balcony microinverter for two PV modules. 1000 W rated AC, dual MPPT, IP67, integrated Wi-Fi, and 15-year warranty.

Key specifications

Model

SUN-M100G4-EU-Q0

Rated AC power

1000 W · 4.6 / 4.4 A (220/230 V)

PV pairing

210-700 W (2 modules) · 2 MPPTs, 1 string each

Max. / Euro / MPPT

96.5% / 96.0% / >99%

Input window

60 V max · 25-55 V MPPT · start-up 20 V · 13+13 A

Protection

IP67 · isolated · rapid shutdown · <100 ms AC discharge

Size / weight

280.5 x 190 x 40 mm · 3 kg · natural cooling

Warranty

15 years (25-year design life)

PV and AC output

Two MPPTs, one string each. Max PV voltage 60 V, MPPT 25-55 V, start-up 20 V, rated 42.5 V. Operating current 13+13 A, short-circuit 19.5+19.5 A. Recommended module pair 210-700 W (2 modules).

Rated AC 1000 W / 1000 W VA, 4.6 / 4.4 A at 220/230 V (0.85Un-1.1Un), L/N/PE, 50/60 Hz. Up to 5 units per AC branch. THDi <3%, PF 0.9 lead to 0.9 lag.

Safety and monitoring

Rapid shutdown, complete NS protection with self-check, and AC discharge under 100 ms (DIN VDE V 0126-95). Isolated topology, DC reverse polarity, AC overcurrent/overvoltage/short-circuit, thermal, insulation monitoring, anti-islanding, Type II AC surge.

Integrated Wi-Fi for module-level monitoring. External relay for low-temperature life and easier service.

Mechanics and environment

Cabinet 280.5 x 190 x 40 mm excluding connectors and brackets, 3 kg, IP67, natural cooling, noise <=25 dB. Operating -40 to +65 C with derating above 45 C, humidity 0-100%, altitude 2000 m. OVC II (DC) / OVC III (AC).

Grid: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, G98, VDE-AR-N 4105. Safety/EMC: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2. 15-year warranty.

Deye Microinverter SUN-M100G4-EU-Q0 | 1000W 2 MPPT

₦200,200.00

  • Max. / Euro

    96.5%

    conversion efficiency

  • Rated output

    1000W

    rated AC output

  • MPP trackers

    2

    independent module inputs

  • AC branch

    5

    units per AC branch

Balcony microinverter

1000 W from two modules. Plug in and monitor on Wi-Fi.

SUN-M100G4-EU-Q0 is the 1000 W model in the SUN-M60/80/100G4-EU-Q0 series. Two MPPTs, quick-plug AC, rapid shutdown, and <100 ms discharge for European balcony PV.

Why this microinverter for balcony PV

Module-level MPPT, a weather-sealed cabinet, and a quick-plug AC lead - specified for European balcony kits.

  • Dual MPPT, two modules

    Two independent trackers (2/1) and 13 A per input follow each module, so shade on one panel does not drag the other.

  • Quick-plug balcony PV

    Designed for balcony kits: hang two modules, plug the AC connector, and monitor over integrated Wi-Fi.

  • <100 ms AC discharge

    Fast AC discharge meets DIN VDE V 0126-95 (<200 ms) so residual voltage drops quickly after disconnect.

  • IP67 outdoor body

    Isolated topology, natural cooling, <=25 dB, and a 280.5 x 190 x 40 mm, 3 kg cabinet for rail or wall hang.
PV module 1
Microinverter
Balcony socket
PV module 2
Wi-Fi monitor
  • 1000W rated AC
  • 2 MPPT one string each
  • Wi-Fi on-board monitor
  • 5 max. per branch

Balcony kit

Two modules. One plug. Wi-Fi on board.

Each tracker takes one module in the 210-700 W (2 modules) window. The AC lead is built for quick-plug balcony systems. Integrated Wi-Fi reports module-level yield without an extra dongle.

Safety stack
Isolated topology
Rapid shutdown
<100 ms discharge
NS self-check
Type II AC surge

Safety

Rapid shutdown. Isolated. Under 100 ms.

AC residual voltage discharges in under 100 ms, meeting DIN VDE V 0126-95. Isolated topology, NS protection with self-check, Type II AC surge, and an external relay specified for low temperature and long life.

Specified for European balcony and small rooftops

  • Module-level monitoring

    Integrated Wi-Fi reports each tracker so you can see yield without a separate dongle.

  • European grid codes

    IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, G98, VDE-AR-N 4105.

  • Protection suite

    Reverse polarity, AC overcurrent/overvoltage/short-circuit, thermal, insulation, anti-islanding, Type II AC surge, NS self-check.

  • 15-year warranty

    25-year design life and we provide 15-year warranty.
Specifications

Technical data

Model SUN-M100G4-EU-Q0
Series SUN-M60/80/100G4-EU-Q0
Max. PV input power 210-700 W (2 modules)
Max. PV voltage / start-up / MPPT 60 V · 20 V · 25-55 V · rated 42.5 V
PV current 13+13 A operating · 19.5+19.5 A short-circuit · 2 MPPT / 1 string
Rated AC power / apparent 1000 W / 1000 W VA
AC current (220/230 V) 4.6 / 4.4 A
Grid 220/230 V · 0.85Un-1.1Un · L/N/PE · 50/45-55, 60/55-65 Hz
Max. units per branch 5
Power factor / THDi / DC injection 0.9 lead-0.9 lag · THDi <3% · <0.5% In
Efficiency 96.5% max · 96.0% Euro · >99% MPPT
Communications Integrated Wi-Fi
Protection Rapid shutdown · NS self-check · Type II AC surge · isolated topology
Environment IP67 · -40 to +65 C (>45 C derating) · 0-100% RH · 2000 m · <=25 dB
Size / weight / cooling 280.5 x 190 x 40 mm · 3 kg · natural cooling
Grid codes IEC 61727, IEC 62116, CEI 0-21, EN 50549, G98, VDE-AR-N 4105
Safety / EMC IEC/EN 61000-6-1/2/3/4 · IEC/EN 62109-1/2
Warranty 15 years · 25-year design life

How many PV modules does it take?

Two modules, one per MPPT. Recommended pair power is 210-700 W (2 modules). Max PV voltage is 60 V with a 25-55 V MPPT window.

How does this SKU differ from the rest of the G4 series?

SUN-M100G4-EU-Q0 is rated 1000 W AC and pairs with two modules in the 210-700 W range, with up to 5 units on one AC branch. SUN-M80G4-EU-Q0 is 800 W, 210-560 W modules, and 6 units per branch. Input voltage, efficiency, size, and protection are the same.

Is it suitable for a balcony plug-in kit?

Yes. Easy installation for quick-plug balcony PV, integrated Wi-Fi, IP67, and rapid shutdown. Always follow the destination country rules for plug-in solar and anti-backflow if required.

What warranty is included?

This product has a 25-year design lifetime and 15-year warranty. Confirm cover for the installation country with Deye or your distributor.

Ready for a 1000 W balcony kit

Dual MPPT, IP67, Wi-Fi, and 15-year cover in a 3 kg cabinet.
