Deye Logger DL1000B-WIFI | Inverter Monitoring Stick

From ₦72,700.00

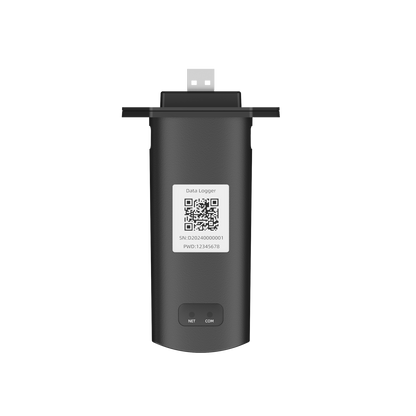

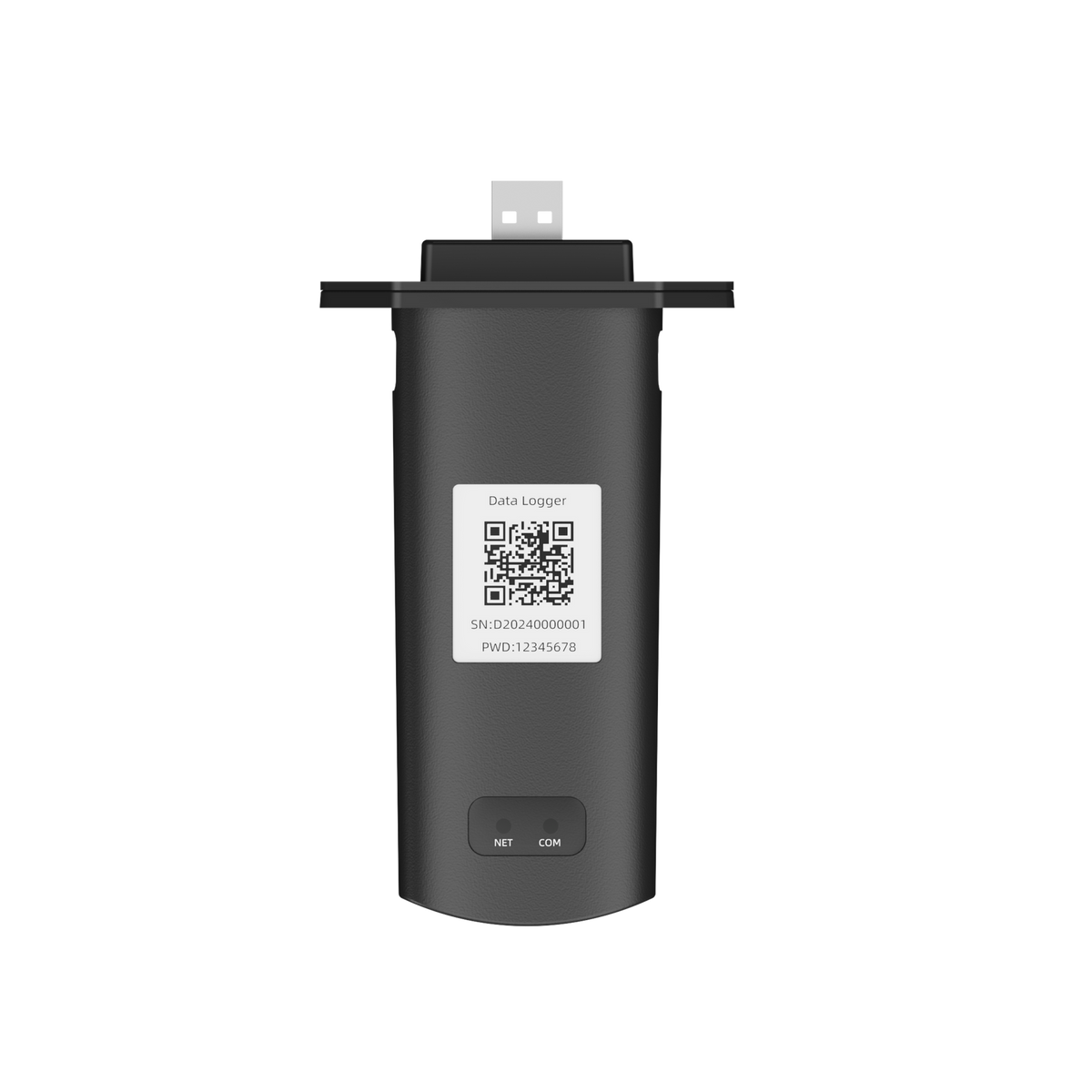

  • Deye DL1000B-WIFI inverter data logger

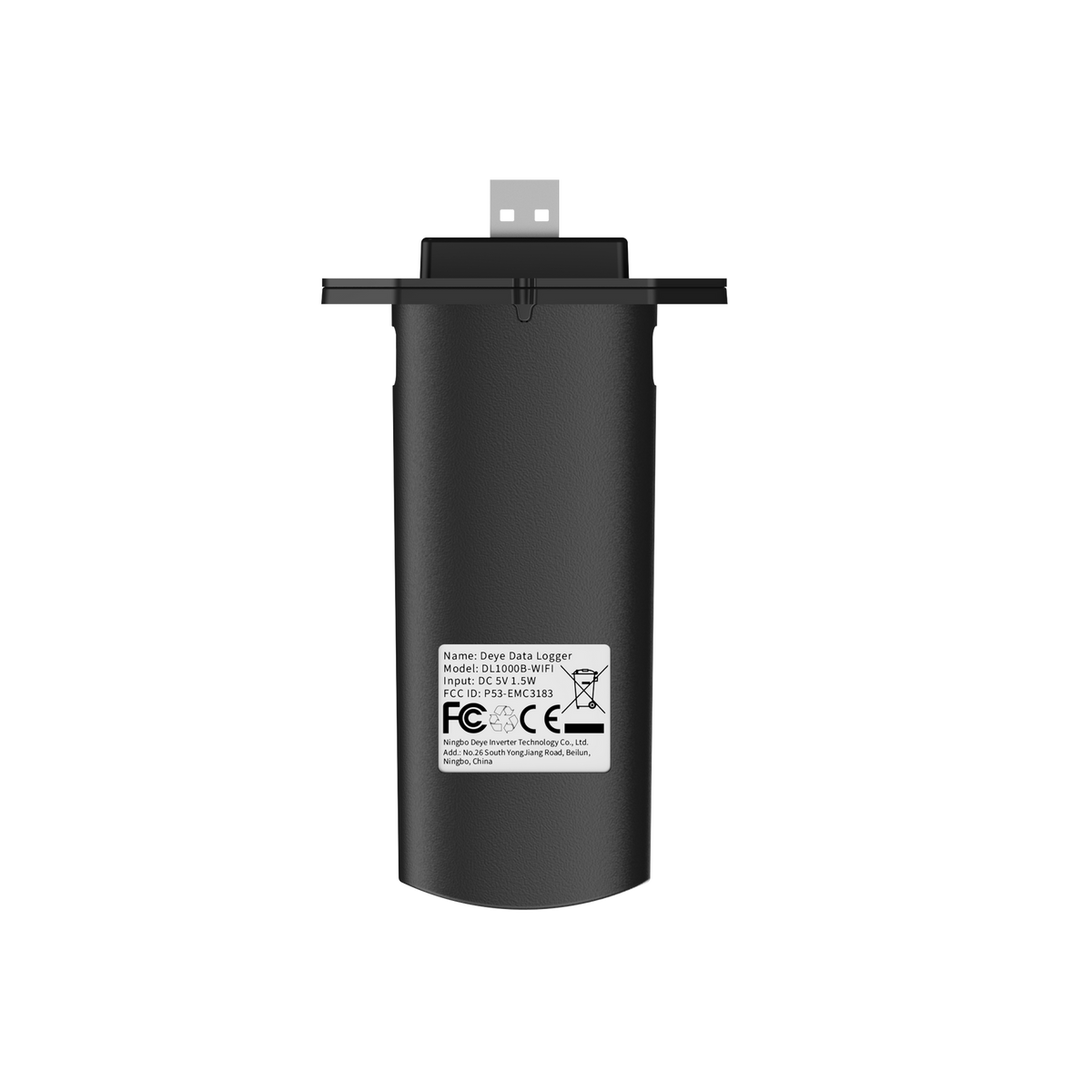

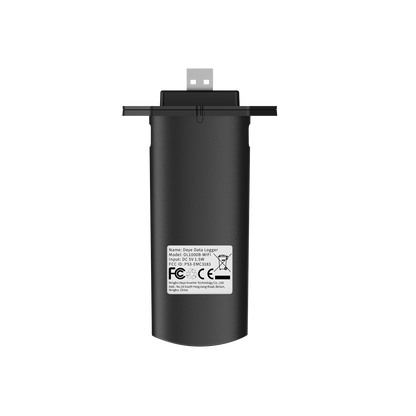

  • Deye DL1000B-WIFI logger angle 2

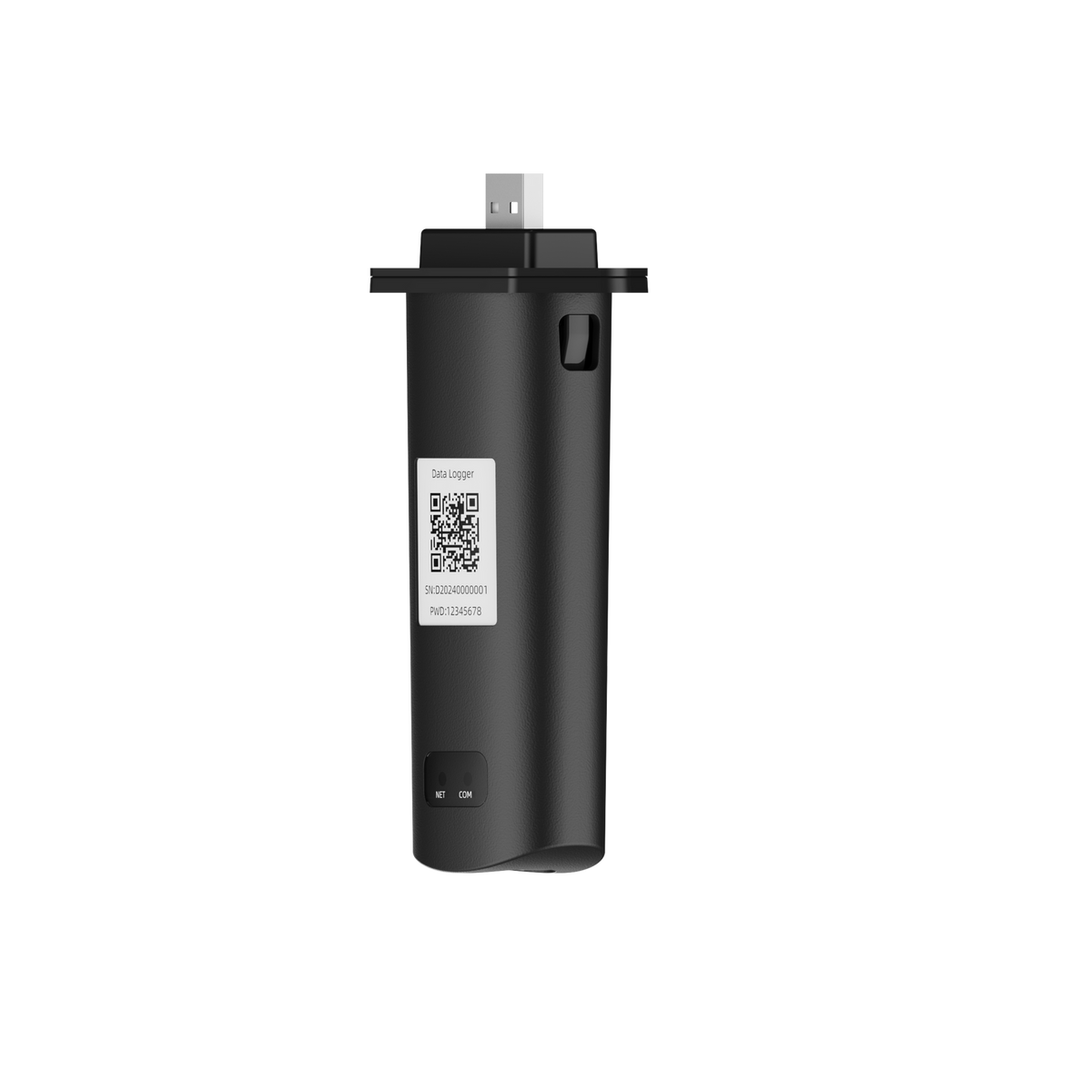

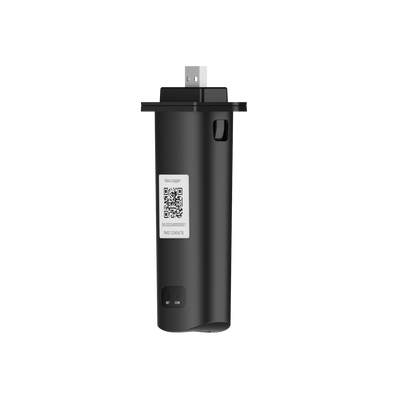

  • Deye DL1000B-WIFI logger angle 3

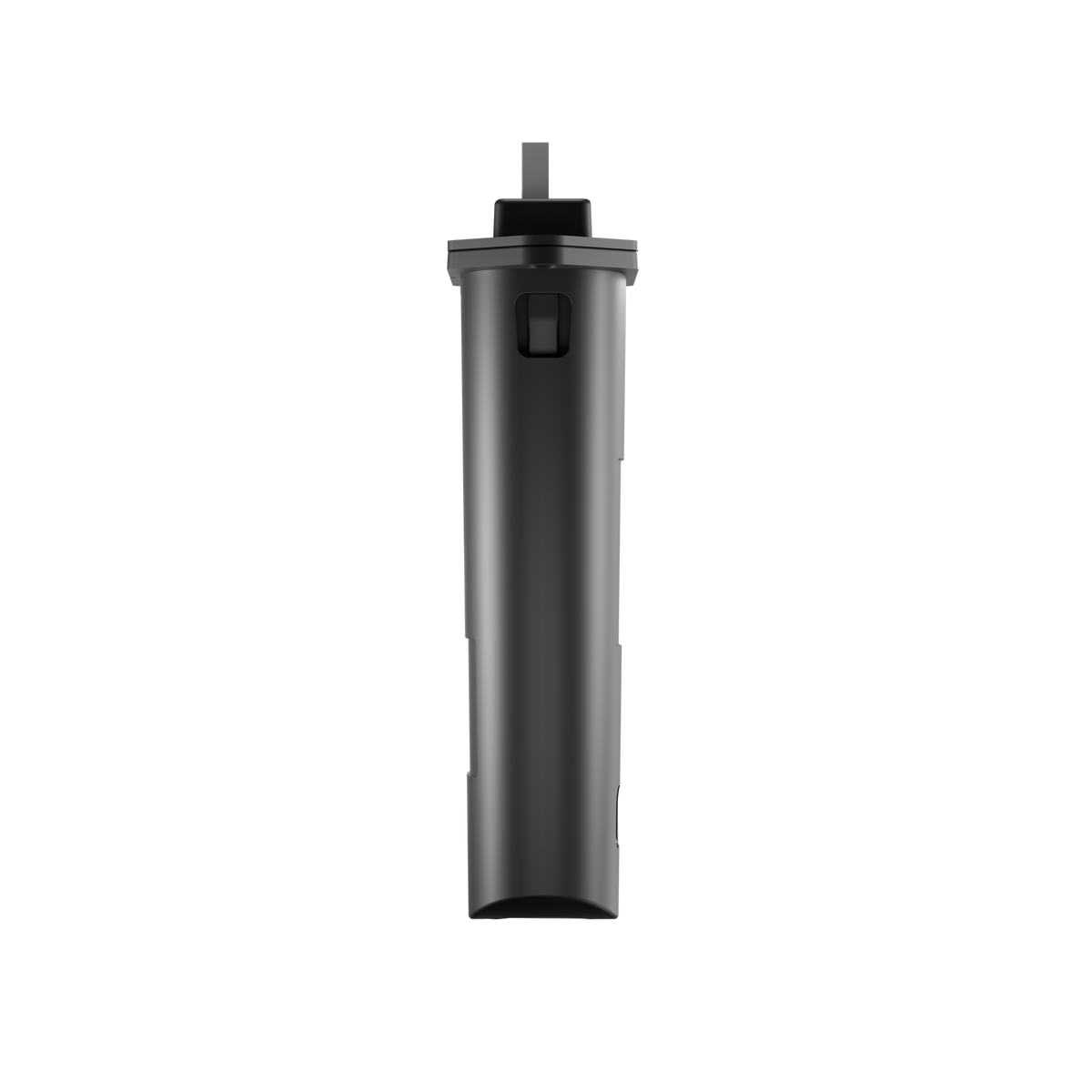

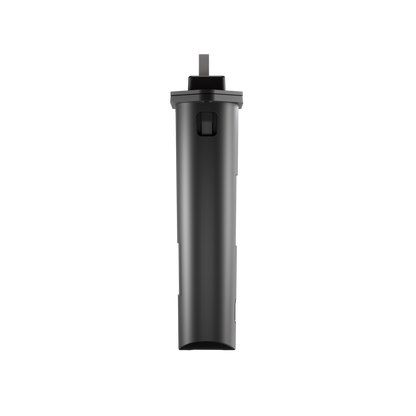

  • Deye DL1000B-WIFI logger angle 4

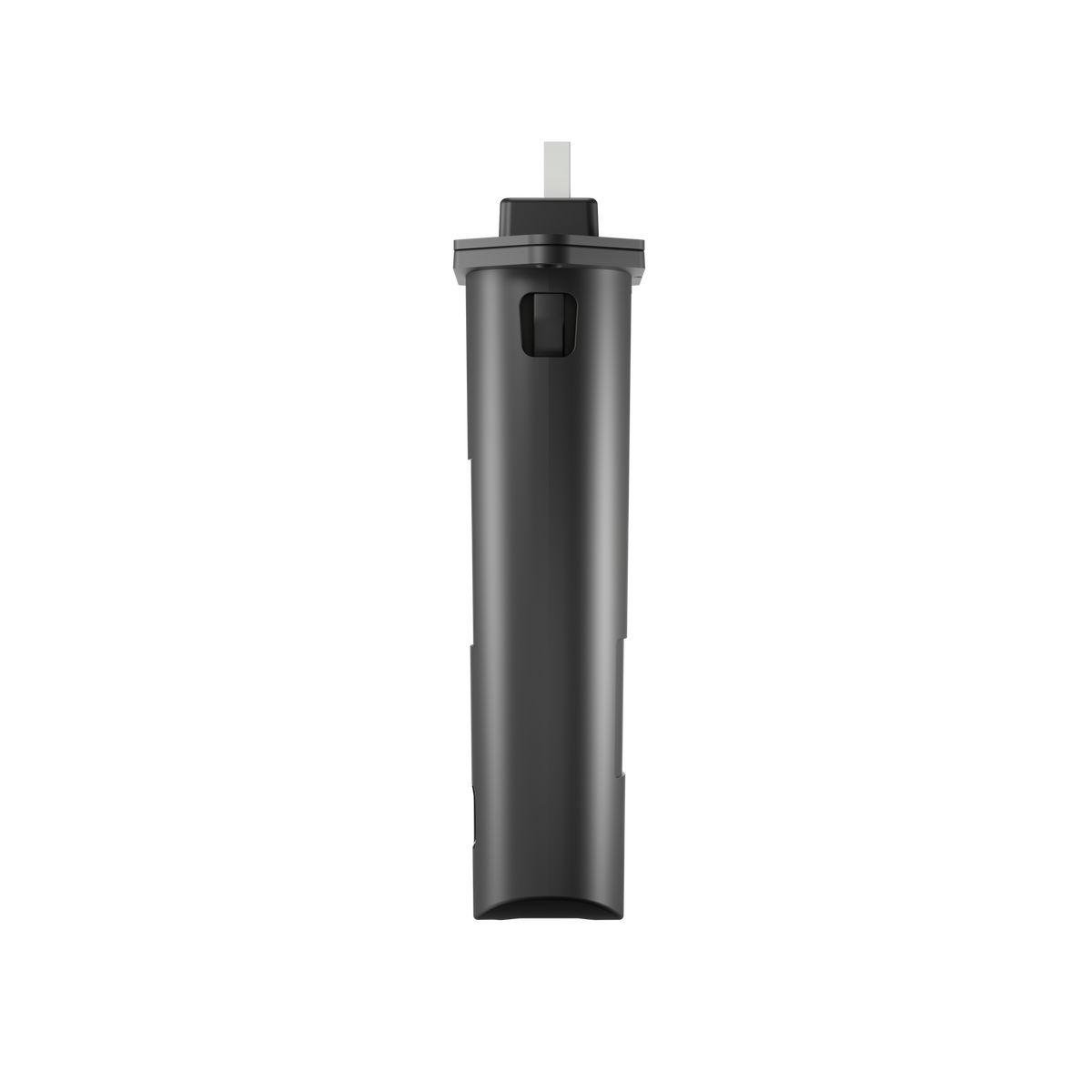

  • Deye DL1000B-WIFI logger angle 5

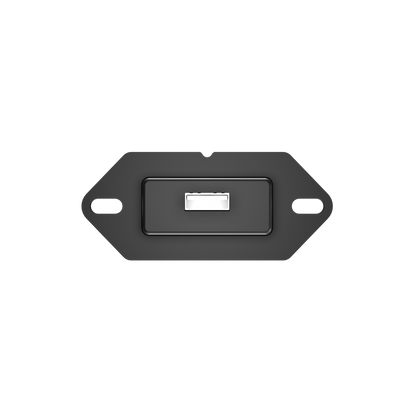

  • Deye DL1000B-WIFI logger angle 6
Inverter type
₦72,700.00
₦72,700.00
Tax included.

USB WiFi stick for Deye inverters. Pushes status and generation to Deye Cloud on 2.4GHz WiFi, with BLE 5.3 for on-site app setup. Official stick: DC 5V / 1.5W, IP65, 1-minute interval, data backfill, local/remote OTA. Pick the inverter type so the DPI board and cable match.

Key specifications

Model

DL1000B-WIFI

Type

Inverter USB data logger · Deye Cloud

WiFi / BLE

2.4GHz (2400–2500MHz) · BLE 5.3

Power

USB DC 5V · 1.5W

Interval / serial

Default 1 minute (1–30 mins) · 9600bps

Enclosure

IP65 · 116.6×70.5×30.5mm · −40°C to +65°C

This listing

WiFi01/02/03/04 by inverter family · also 4G / ETH / DL2000B

Not this SKU

Not DYNT-WIFI (heat-pump logger)

What it does

The DL1000B-WIFI stick collects inverter data and sends working status and generation to Deye Cloud over WiFi, so you can monitor a PV plant without standing at the inverter.

WiFi 2.4GHz and Bluetooth BLE. MODBUS transparent transmission, custom commands, local/remote firmware upgrade, inverter parameter adjustment and remote debugging. BLE local mode in the app reads live inverter data on site. If WiFi drops, the stick keeps saving data and backfills Cloud when it reconnects.

Match the inverter before you order

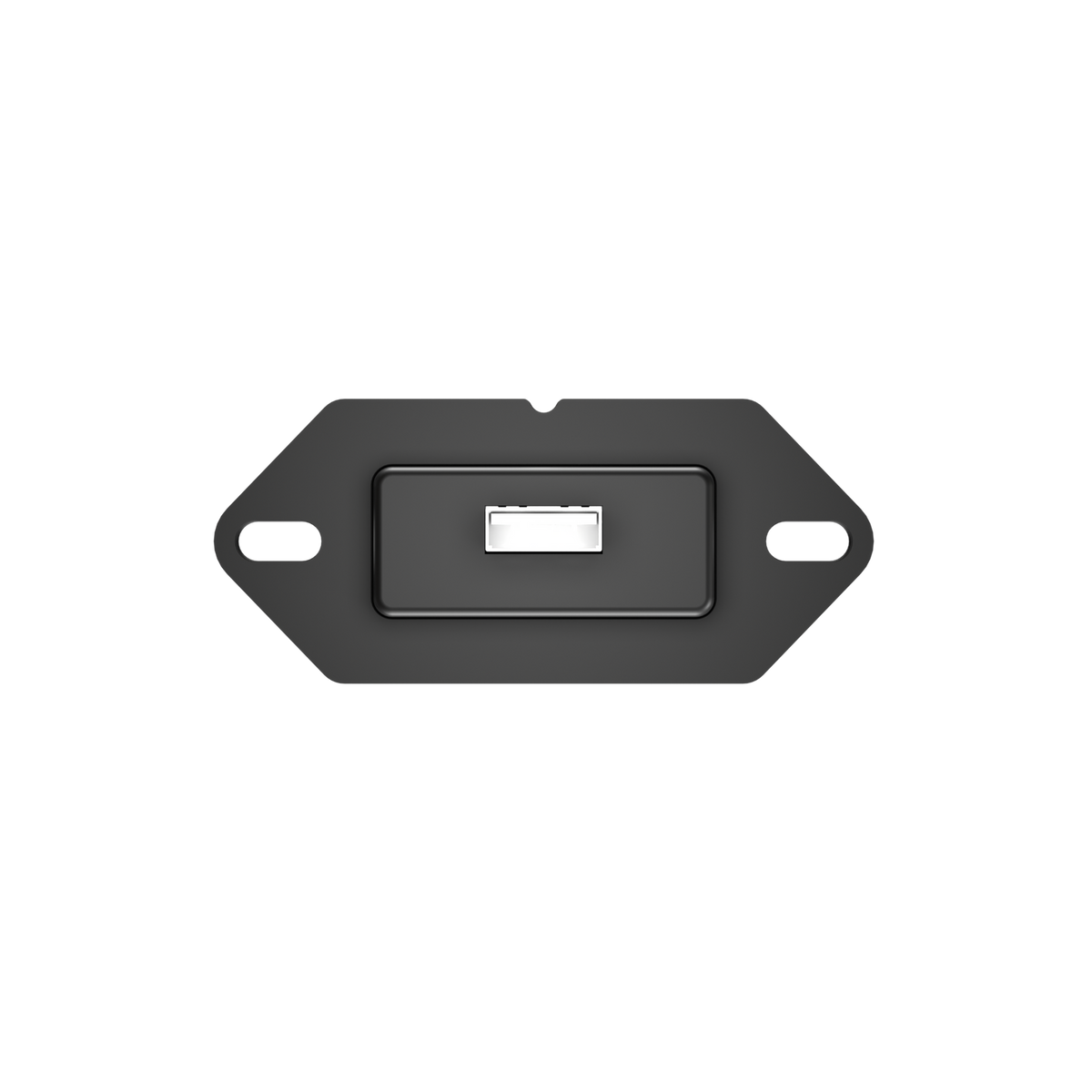

The stick is USB. To fit the inverter, this pack includes a DPI board and data cable. Replace the original DPI board, then plug the logger into USB. Different inverter families need different boards and cables — that is why this page has several options.

WiFi SKUs: DL1000B-WIFI01 SG05LP3 14–20kW · WIFI02 SG02LP1 · WIFI04 SG05LP3 / SG01LP1 / SG01 / SG02HP3 · WIFI03 SG03 / SG04 / SG05LP1 / SG04LP3. This listing also offers DL 1000B 4G, DL 1000B ETH and DL 2000B Wifi as other comms options. Official electrical data below is for DL1000B-WIFI.

Install, lights and environment

USB: VCC DC 5V (≥1.5W), RXD/TXD 3.3V TTL UART, GND. NET blue on = Cloud connected. COM blue on = inverter comms OK. Plug and play after the DPI swap. Typical swap about 15–20 minutes.

Operating −40°C to +65°C, humidity 10%–90% non-condensing. Storage −45°C to +90°C. IP65. Encrypted Cloud link. Service can remote-debug through Deye Cloud.

Deye Logger DL1000B-WIFI | Inverter Monitoring Stick

₦72,700.00

Inverter USB data logger

Put the inverter on Deye Cloud.

WiFi 2.4GHz to Cloud, BLE for the app on site, 1-minute logs with backfill. Choose the inverter family so the DPI board in the box is the right one.

Why this logger

  • WiFi to Deye Cloud

    2.4GHz (2400–2500MHz) onboard antenna. Uploads inverter status and generation around the clock. Encrypted transmission.

  • BLE 5.3 on site

    App local mode over Bluetooth for setup and live data without the home WiFi. Max TX 18dBm.

  • 1-minute logs, then backfill

    Default 1-minute interval (1–30 mins). If the stick is offline it keeps storing; when WiFi returns it uploads the gap.

  • OTA and remote debug

    Local and remote OTA for logger and inverter. Parameter changes and debugging through Cloud, so fewer truck rolls.
Specifications

Technical data

Model DL1000B-WIFI
WiFi frequency 2400–2500MHz · 2.4GHz
WiFi standard 802.11 b/g/n
Antenna Onboard
BLE BLE 5.3 · 2400–2500MHz · max 18dBm
Data interface USB · DC 5V ≥1.5W · 3.3V TTL UART
Power dissipation 1.5W
LEDs NET · COM
Operating temperature −40°C to +65°C
Operating humidity 10%–90% (no condensing)
Storage −45°C to +90°C · humidity <40%
Ingress protection IP65
Dimension W×D×H 116.6mm×70.5mm×30.5mm
Serial speed Default 9600bps
Data interval Default 1 minute (1–30 mins optional)
Features Plug and play · App BLE local mode · local/remote OTA · data backfill · encrypted transmission · AT / local web config

What is the DL1000B-WIFI data logger?

A WiFi data stick that collects inverter performance and sends it to Deye Cloud. Remote monitoring, firmware updates and diagnostics for a Deye inverter — from the app or web portal.

What connectivity does it offer?

WiFi 2.4GHz for Cloud, Bluetooth BLE 5.3 for local app setup. WiFi keeps uploading; BLE is for on-site work without the home network.

How often does it update data?

Default every 1 minute (1–30 mins optional) with automatic backfill if the link drops. When WiFi returns, stored points upload so the history stays complete.

Which inverters are compatible?

Deye inverters, but the DPI board and cable change by family. Select SG05LP3 14–20kW, SG02LP1, SG05LP3/SG01LP1/SG01/SG02HP3, or SG03/SG04/SG05LP1/SG04LP3. 4G, ETH and DL2000B Wifi are listed separately. This is not DYNT-WIFI.

What's in the package?

Logger, DPI board (model-specific), data cable, installation guide. Replace the original DPI, then connect USB. About 15–20 minutes.

Are data and firmware handled in Cloud?

Yes. Encrypted link to Deye Cloud. OTA for logger and inverter. Service can remote-diagnose and adjust parameters. Contact us if the inverter is not in the table.

Ready to log the inverter to Cloud

USB stick, WiFi 2.4GHz, BLE 5.3, IP65, 1-minute backfill. Match the DPI to the inverter.
