Three-phase high-voltage hybrid inverter for commercial and industrial solar-plus-storage. 60–80 kW, six MPPTs, dual battery inputs, up to 10 units in parallel (800 kW), and 100% unbalanced output.
Up to
Charge / discharge
On-grid and off-grid
Rated output
C&I hybrid inverter

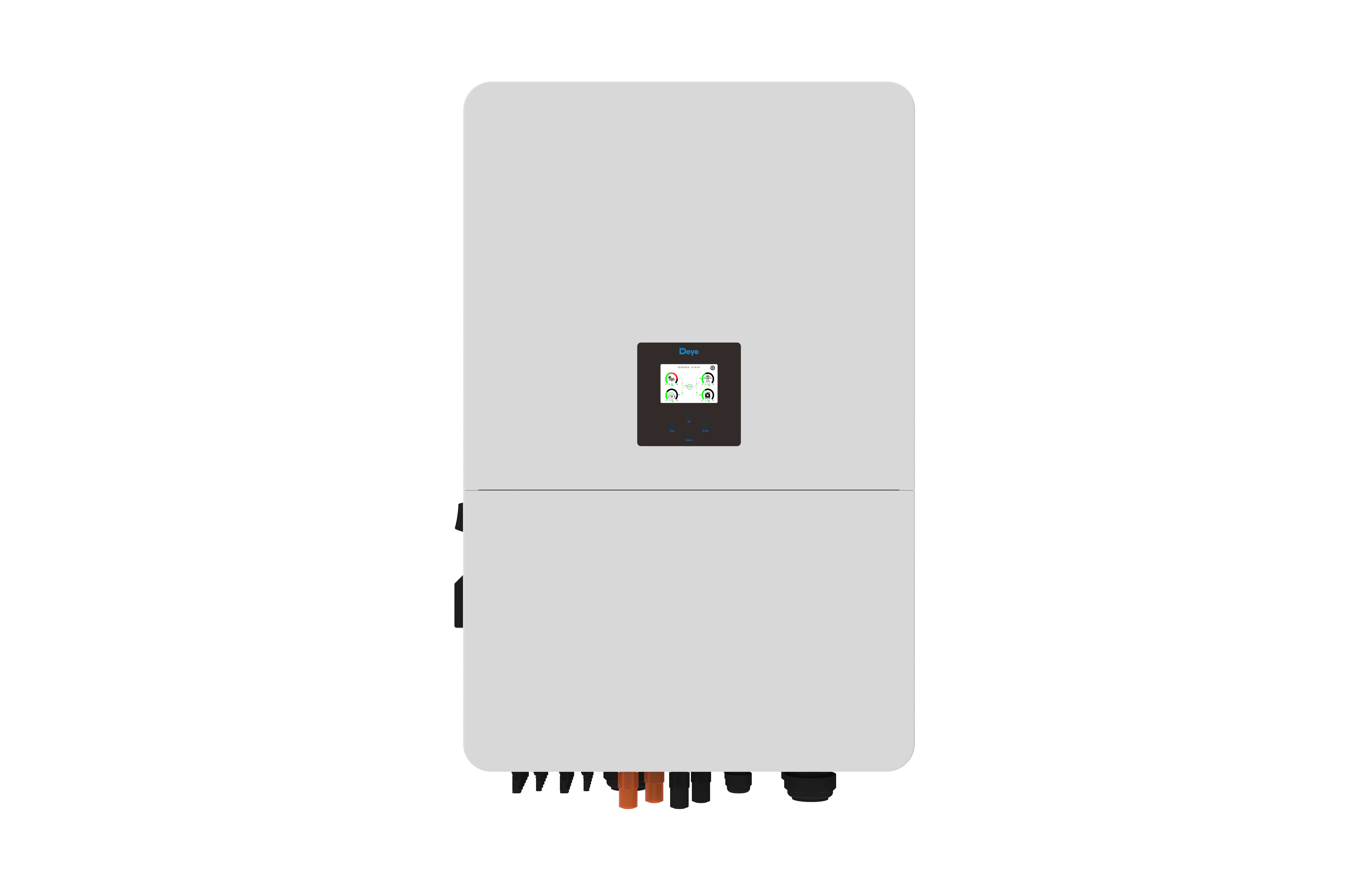

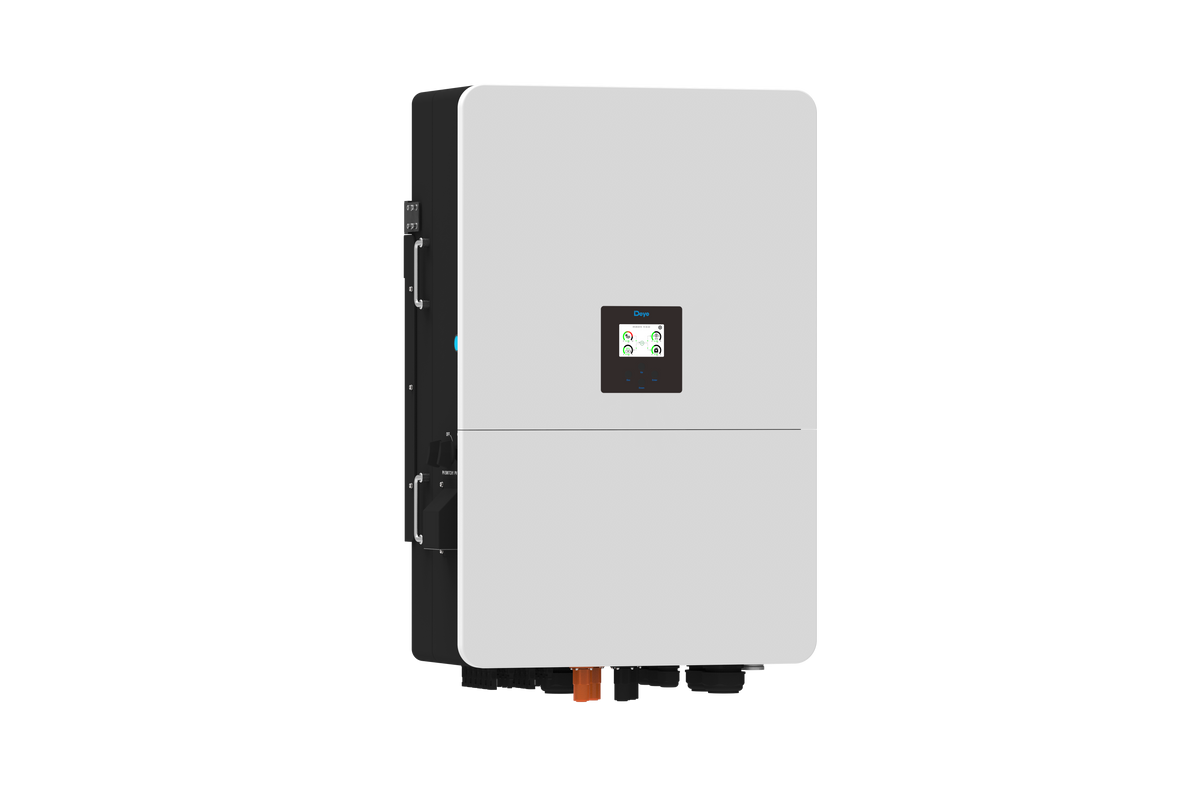

The Deye SUN-SG02HP3-EU-EM6 series couples PV, dual high-voltage battery inputs, grid, backup loads, and a diesel generator in one IP65 cabinet. Specify 60 kW, 70 kW, 75 kW, or 80 kW for new C&I plants, or AC-couple it to an existing solar system.
98.7% conversion efficiency in an IP65 cabinet — built for European C&I grid codes, from peak shaving to full-site backup.
160–1000 V lithium packs, two 80 A inputs, BMS self-adaptation, and six charge/discharge windows for time-of-use control.

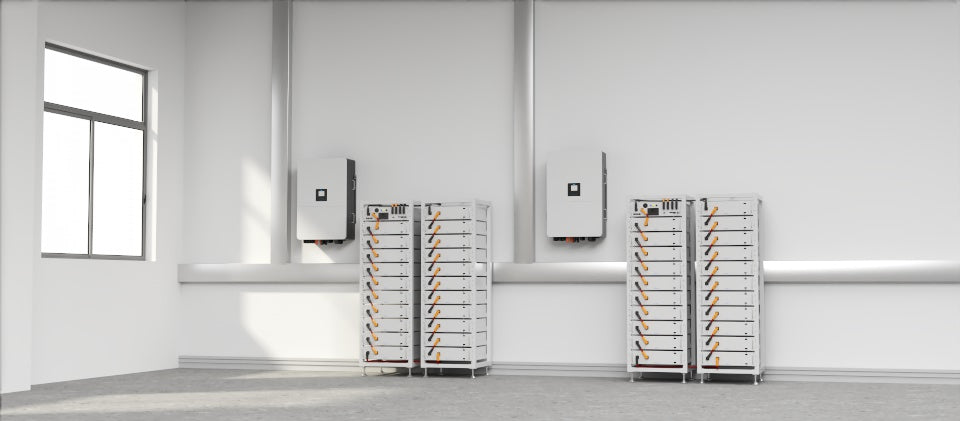

Parallel up to 10 inverters on-grid and off-grid, with multiple batteries in parallel, to grow a plant to 800 kW without a platform change.
Twelve strings on six independent trackers, 200% PV oversizing and 160% DC input, so mixed roofs still harvest at rated AC power.
Retrofit storage onto existing PV with AC coupling. GEN port stores diesel energy or runs Smart Load for EV chargers and boilers.
Hardware

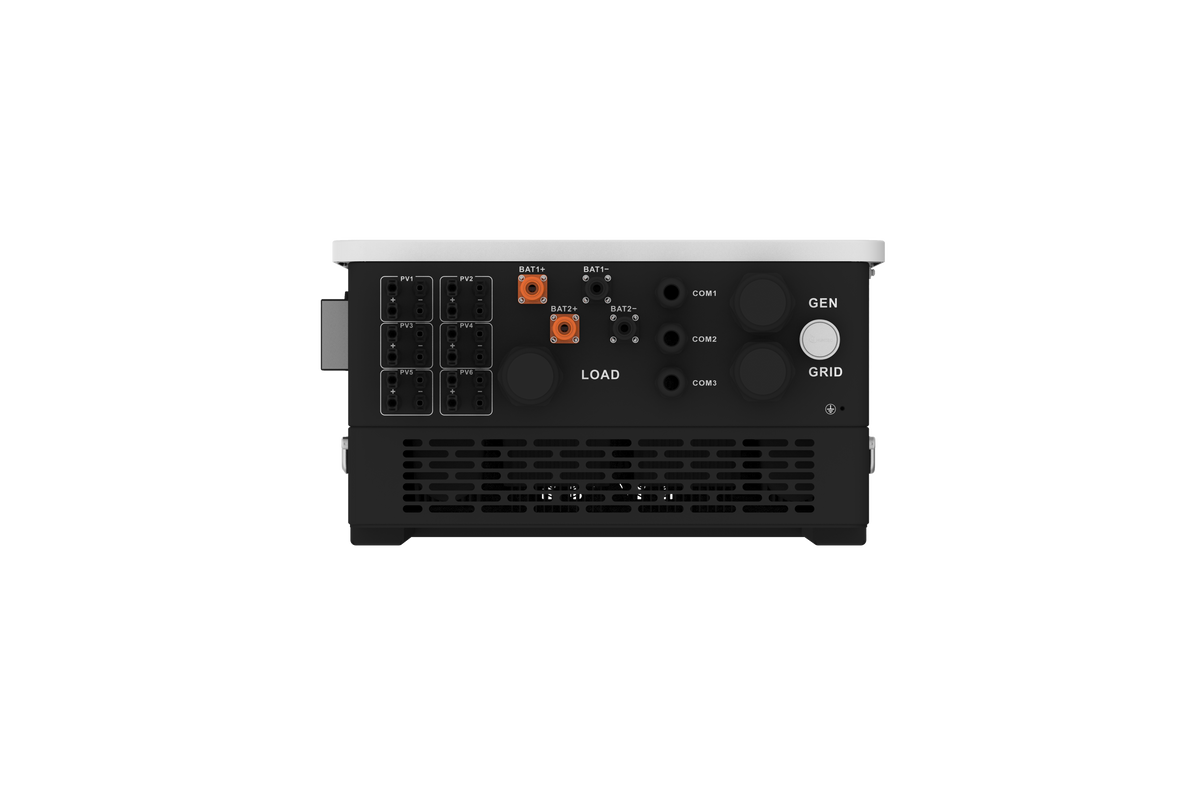

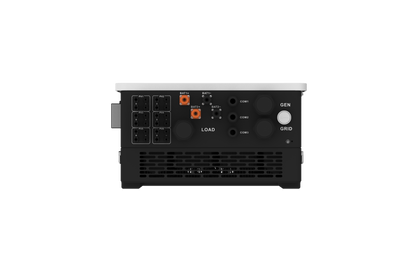

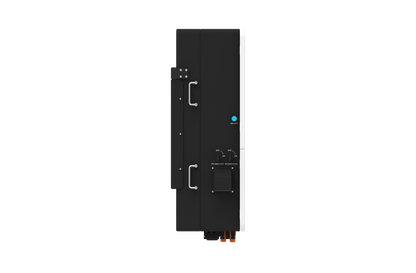

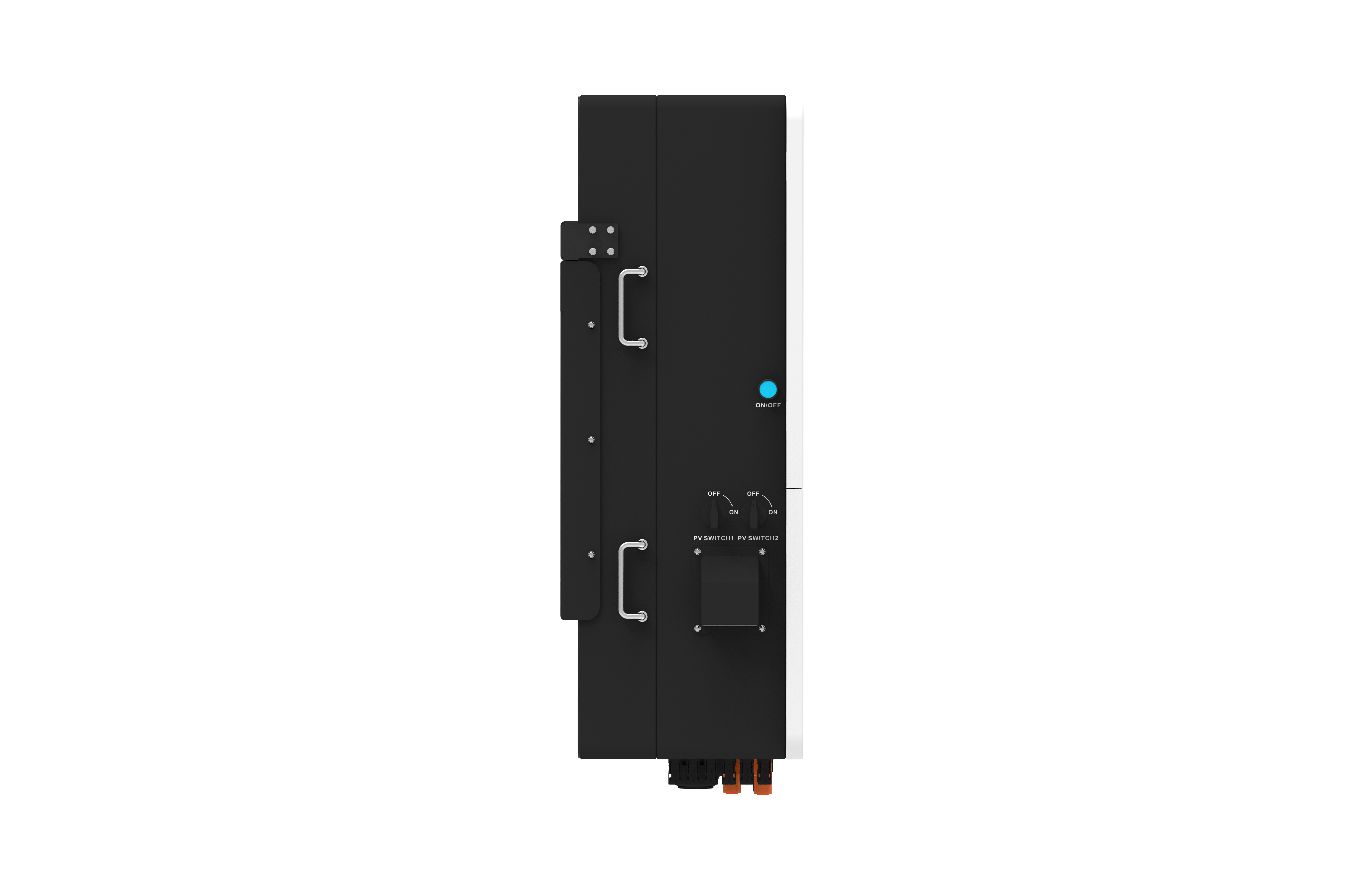

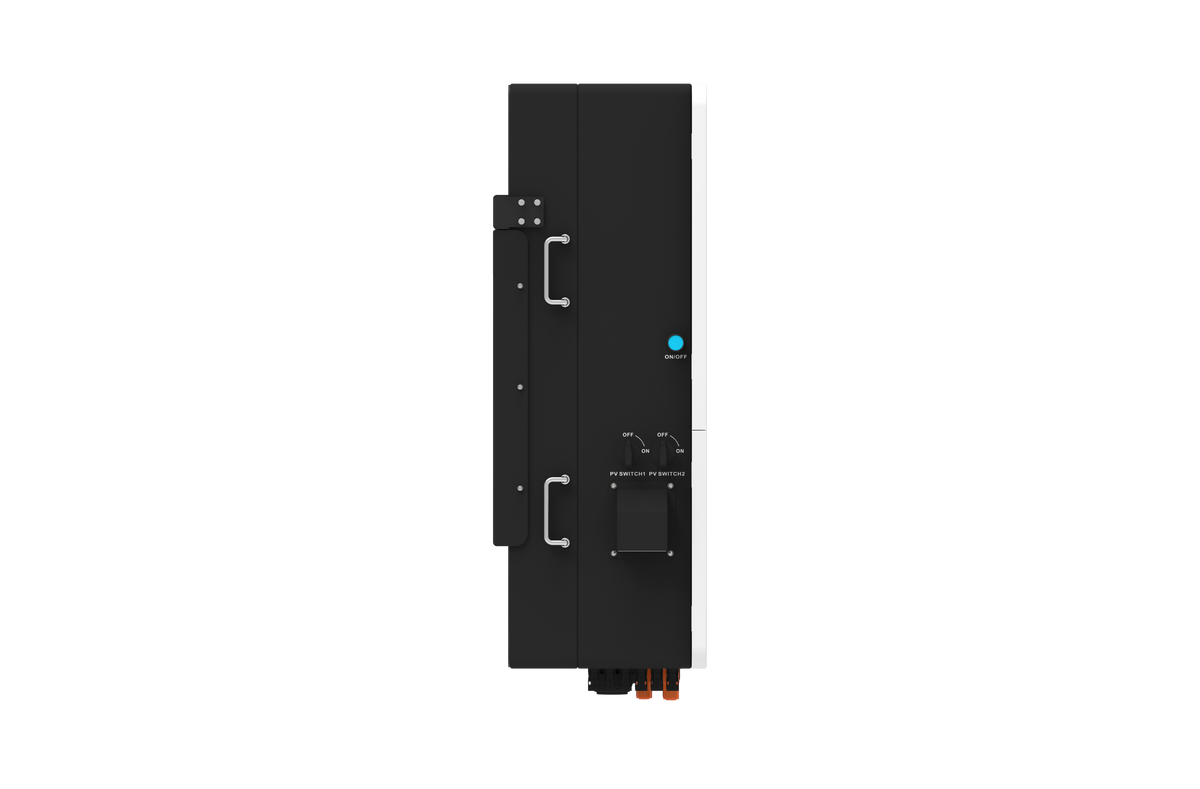

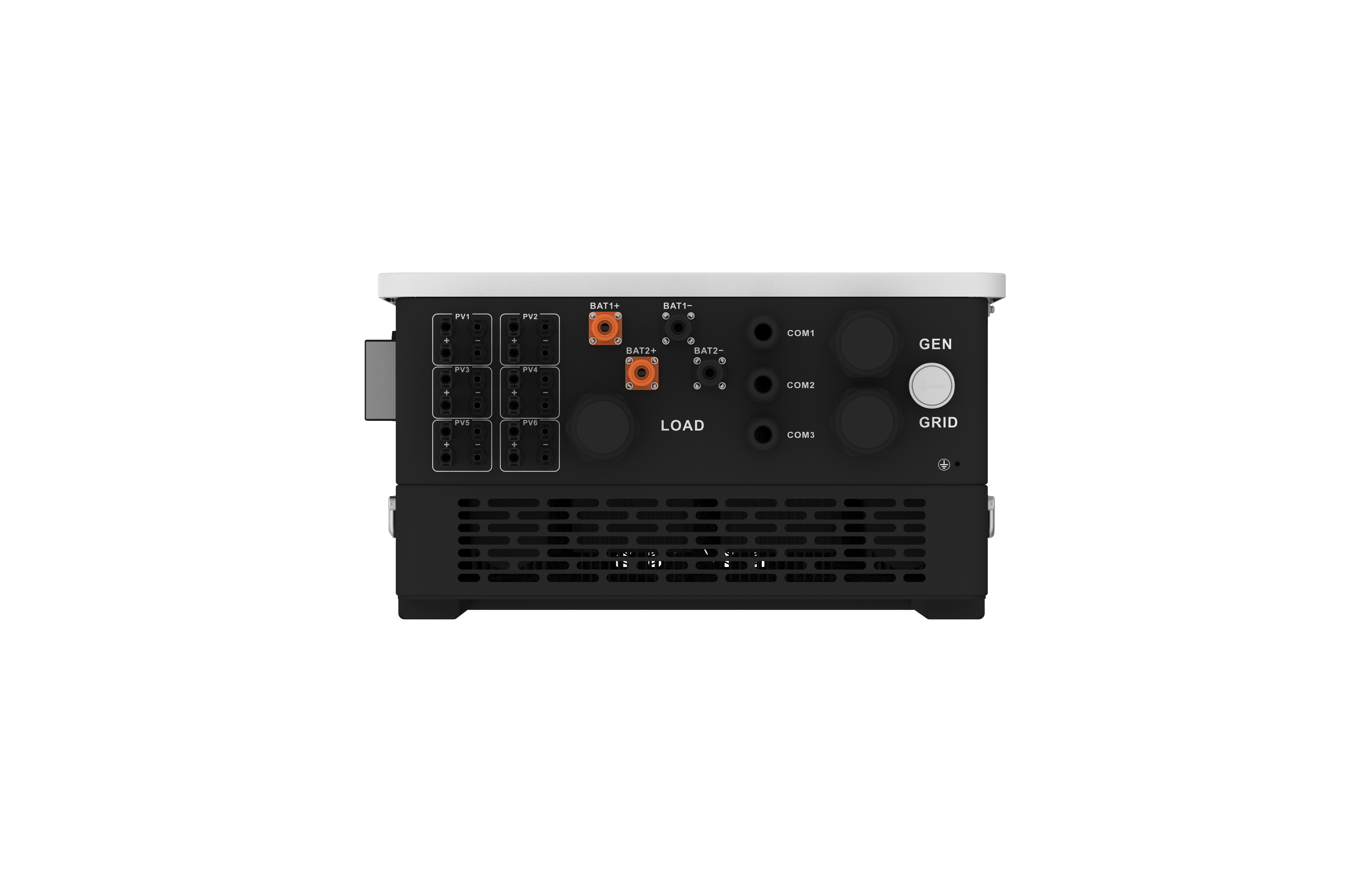

Six PV string groups, dual battery ports, load, generator, and grid terminals sit on the underside. Dual side PV isolators support lock-out during service. About 105 kg for a 60–80 kW three-phase hybrid.
Efficient
Pair lithium batteries from 160 V to 1000 V across two 80 A ports (160 A combined). Max. efficiency 98.7%, Euro efficiency 98.1%, and MPPT efficiency above 99% keep more of every kilowatt-hour for the load or the tariff window.
Flexible
AC-couple to an existing PV inverter without ripping out the original array. GRID, LOAD, and GEN ports on the underside support backup loads, diesel charging, and Smart Load for EV chargers or boilers. Off-grid peak power is 1.5× rated for 10 seconds. Grid-to-load passthrough is 200 A continuous.
Safety, EMC, and grid standards in one package, with the ports installers actually use on site.
Six trackers, two strings each. 36 A operating current and 54 A ISC per tracker for mixed roof orientations.
EN 50549, VDE-AR-N 4105, G99, CEI 0-21, NRS 097 and more. Type II surge on DC and AC. Optional AFCI.
RS485, RS232, and CAN on the inverter. GPRS, WiFi, Bluetooth, 4G, or LAN monitoring for fleet visibility.

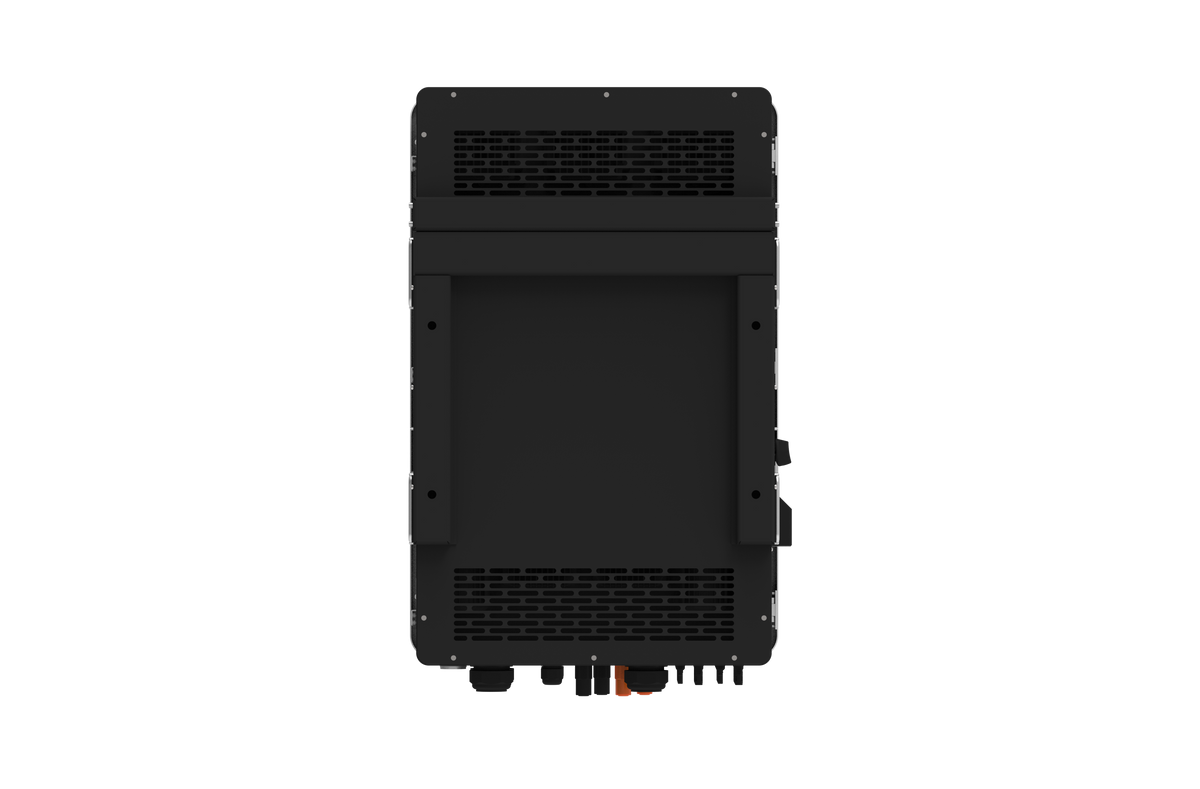

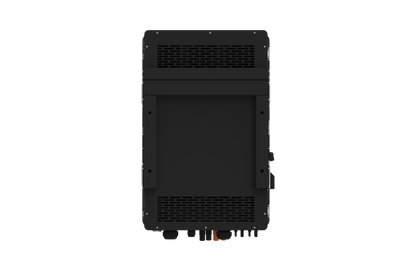

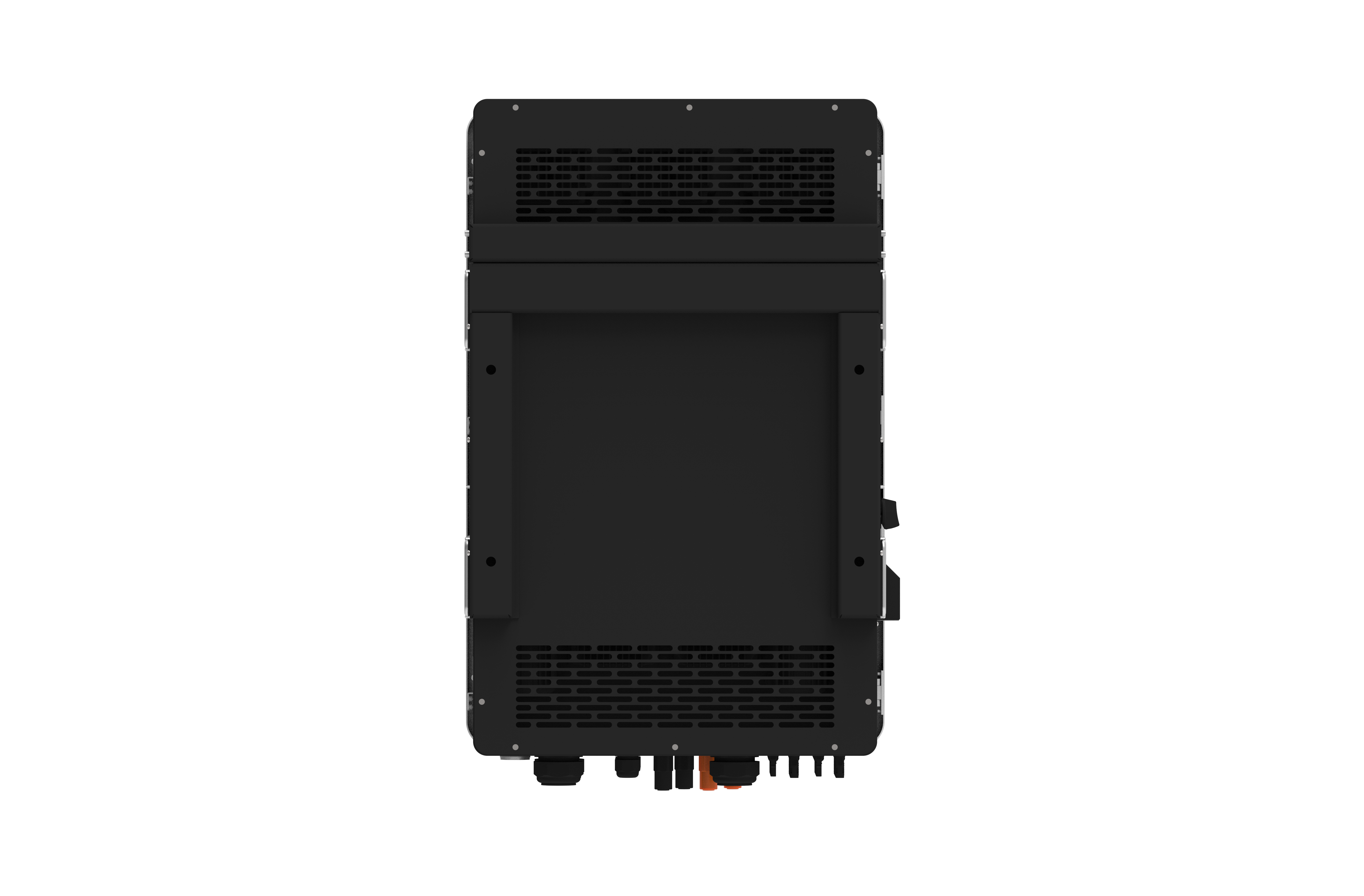

IP65, −40 to +60°C with derating above 45°C, 3000 m altitude, smart air cooling, about 105 kg.
| Models | SUN-60K / 70K / 75K / 80K-SG02HP3-EU-EM6 |
|---|---|
| Rated AC power | 60 / 70 / 75 / 80 kW |
| Max. / Euro / MPPT efficiency | 98.7% / 98.1% / >99% |
| Battery type | Lithium-ion, BMS self-adaptation |
| Battery voltage / current | 160–1000 V · 80 A + 80 A (160 A) · 2 inputs |
| Max. PV voltage / MPPT range | 1000 V · 150–850 V · start-up 180 V · rated 650 V |
| MPP trackers | 6 trackers · 2+2+2+2+2+2 strings · 36 A / 54 A ISC per tracker |
| Max. PV access / input | 120 / 140 / 150 / 160 kW access · 96 / 112 / 120 / 128 kW input |
| Grid | 220/380 V, 230/400 V · 3L+N+PE · 50/60 Hz |
| Unbalanced output | 100% per phase |
| Off-grid peak | 1.5× rated power for 10 s · 1.1× continuous overload |
| AC passthrough | Max. 200 A grid to load |
| Parallel operation | Up to 10 units on-grid and off-grid (800 kW) |
| Charge windows | 6 programmable charge/discharge periods |
| Environment | IP65 · −40 to +60°C · ≤65 dB · 3000 m |
| Size / weight | 606 × 927 × 314 mm · approx. 105 kg |
| Communications | RS485, RS232, CAN · GPRS / WiFi / Bluetooth / 4G / LAN |
| Grid codes | IEC 61727, IEC 62116, CEI 0-21, EN 50549, G99, VDE-AR-N 4105, NRS 097 |
| Warranty | 5 years / up to 10 years depending on country |
High-voltage hybrid power, 10-unit parallel to 800 kW, AC coupling, generator and Smart Load support — ready for European commercial sites.
