Deye SUN-5/6/8/10/12K-SG02HP3-EU-DM2 | 5–12kW Three-Phase HV Hybrid

From ₦1,675,900.00

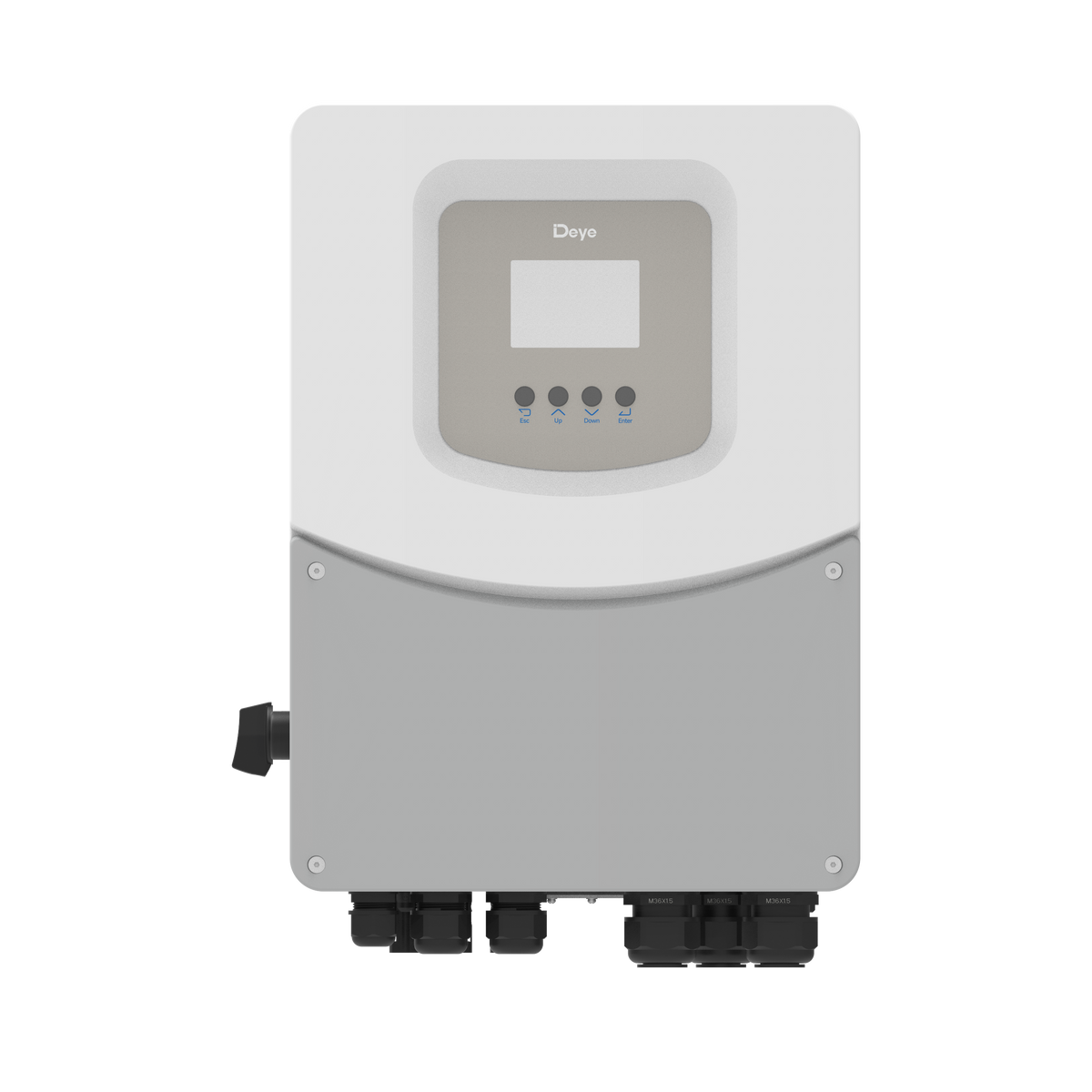

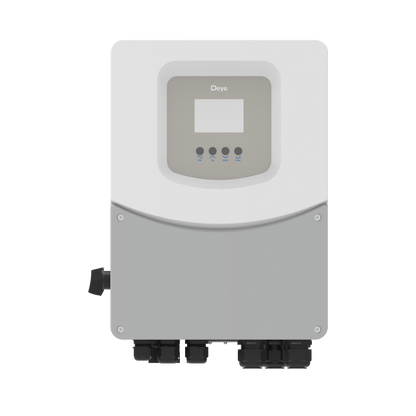

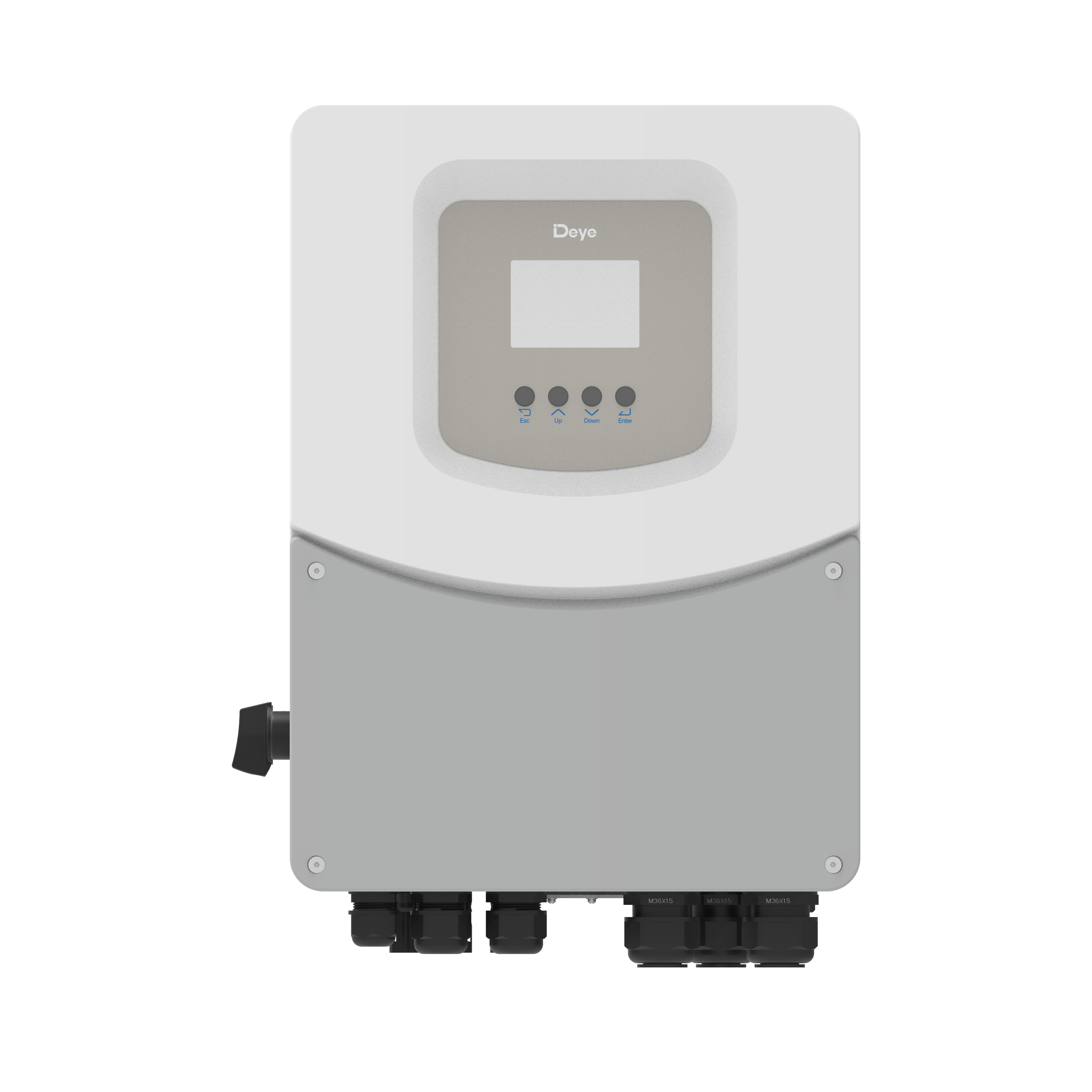

  • Deye SUN-5-8K-SG02HP3-EU-DM2 angle

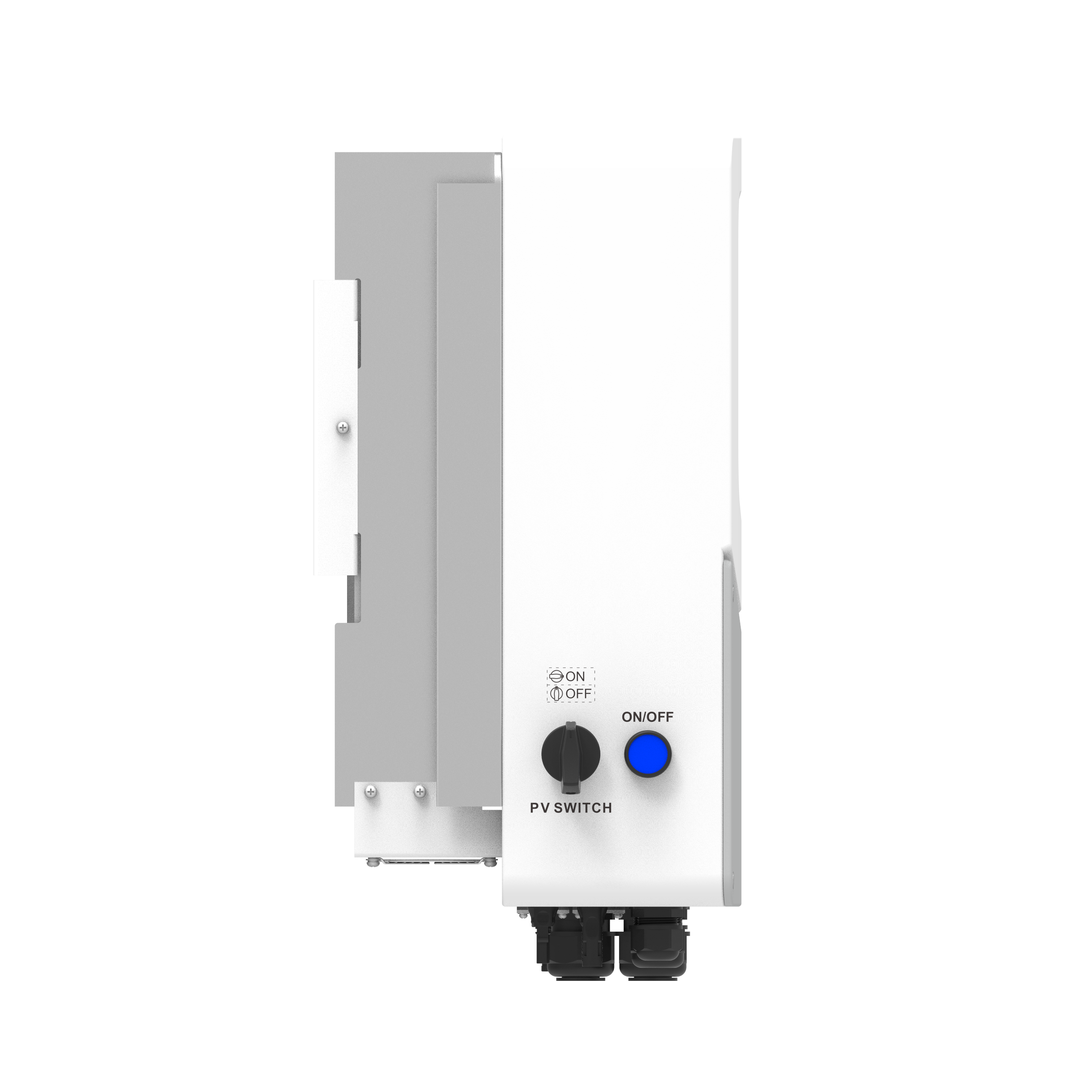

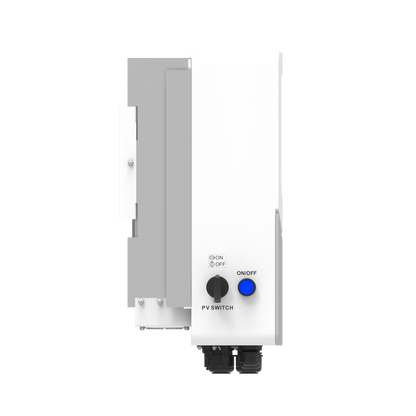

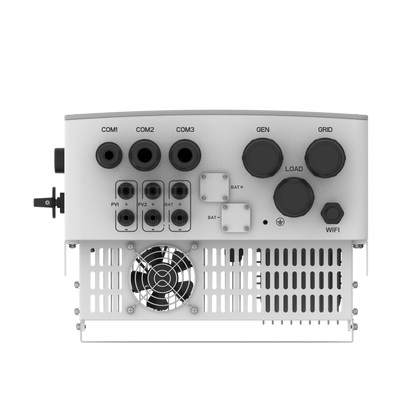

  • Deye SUN-SG02HP3-EU-DM2 ports

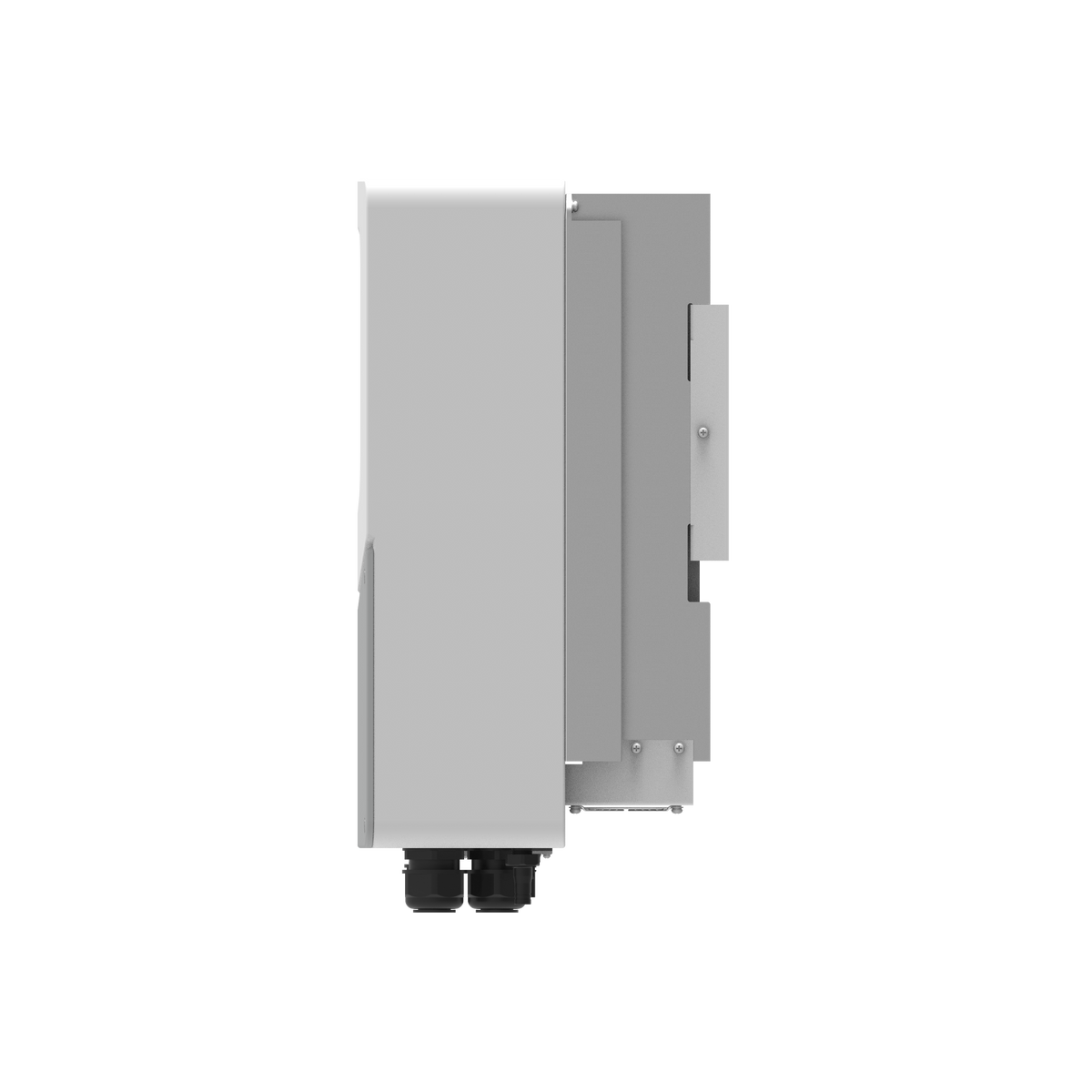

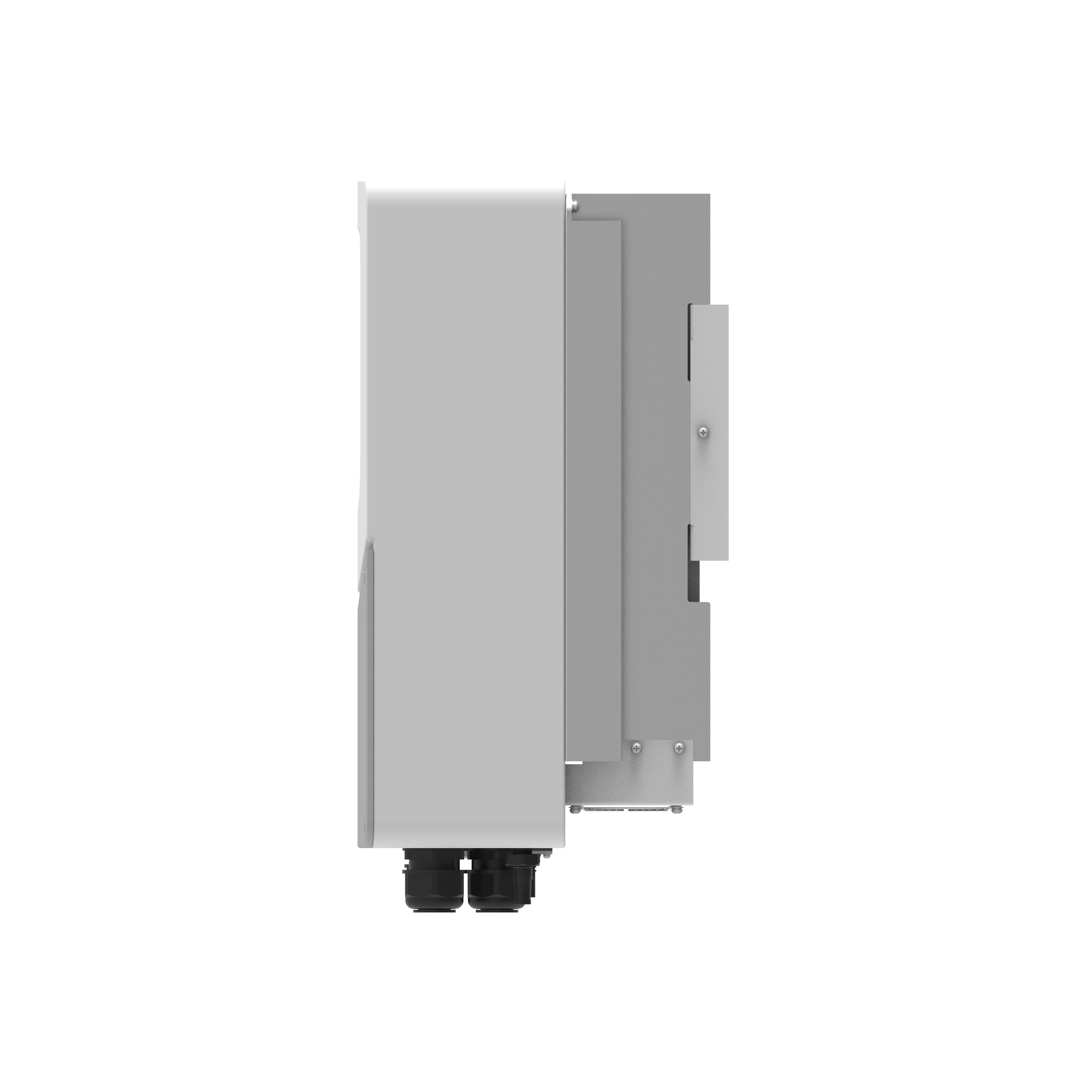

  • Deye SUN-SG02HP3-EU-DM2 side

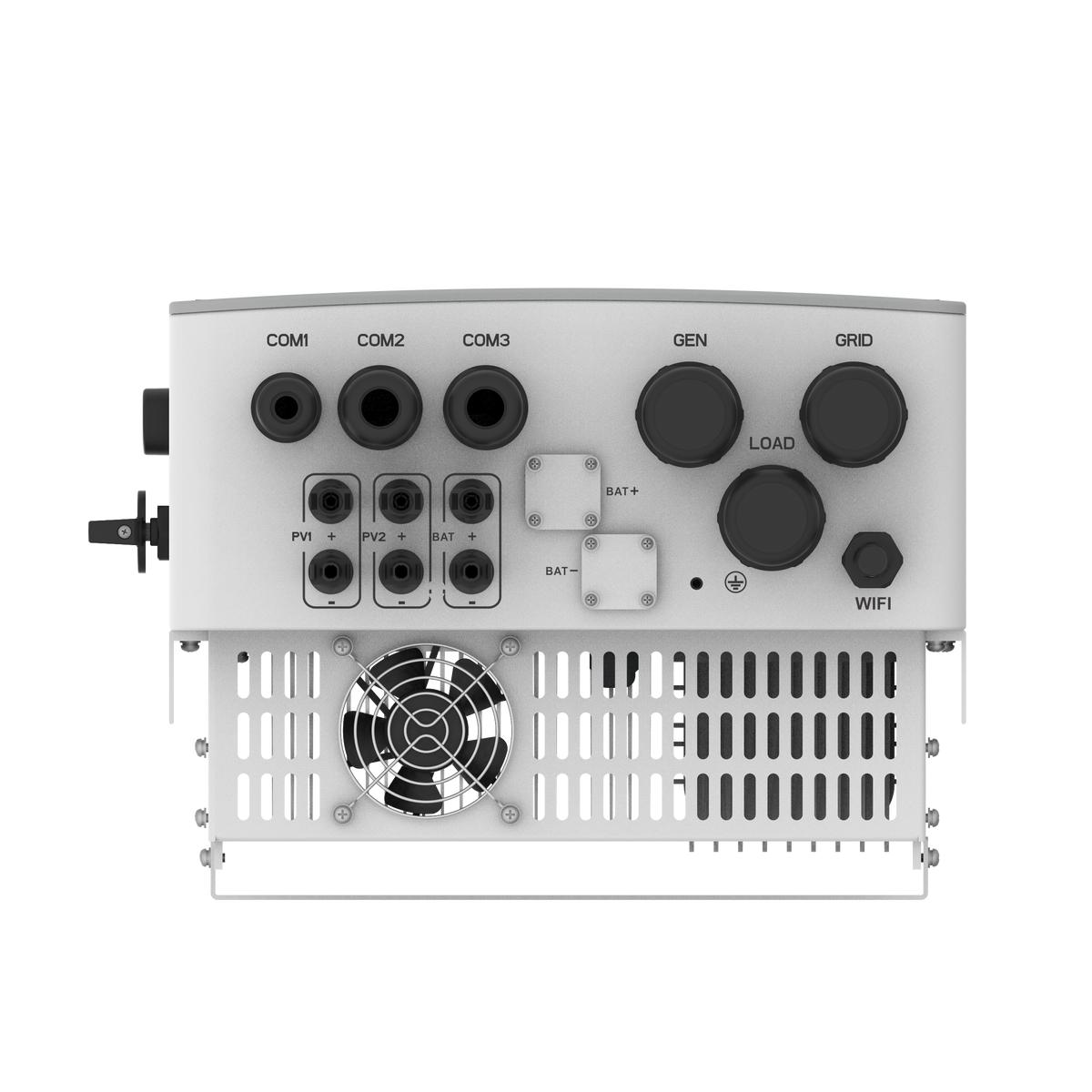

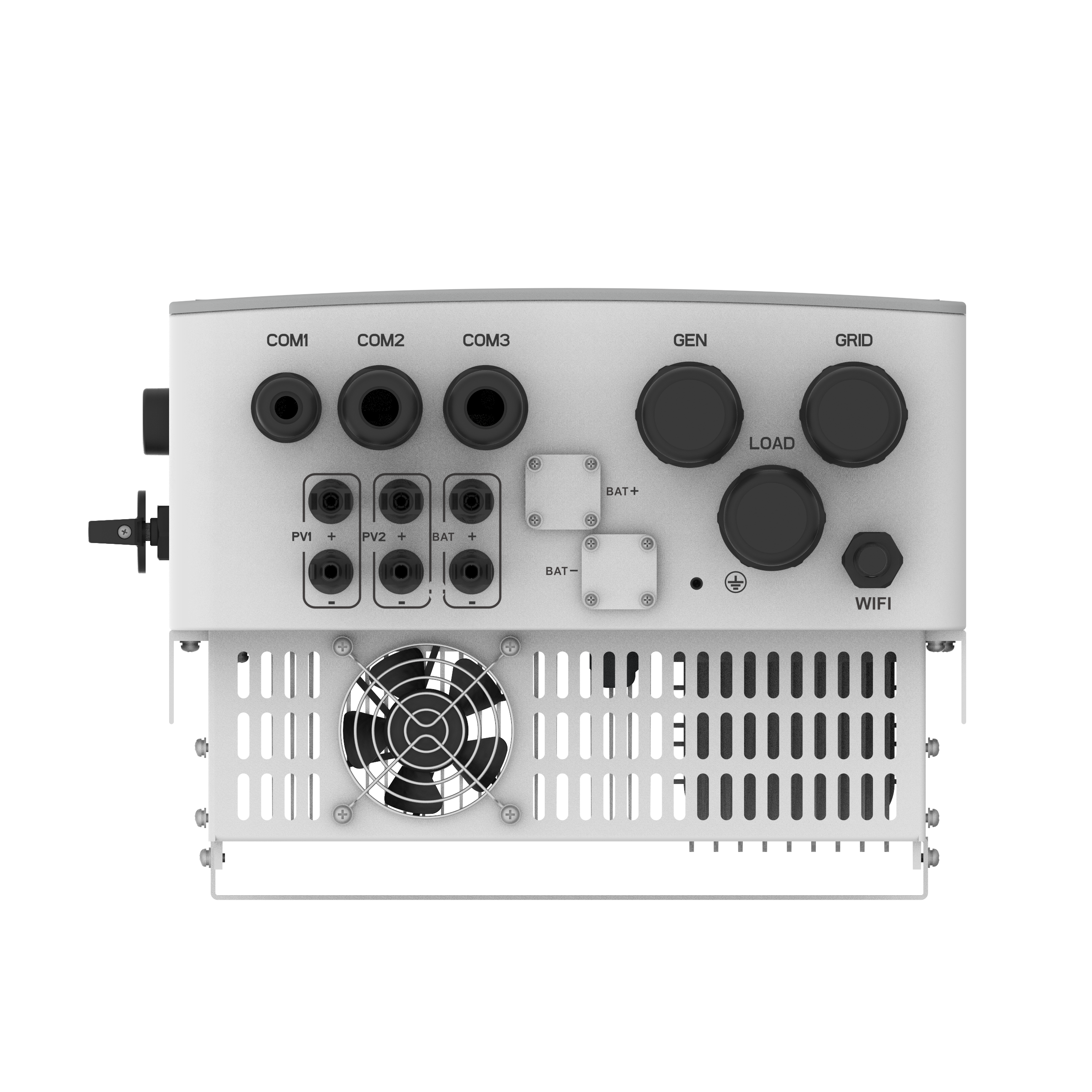

  • Deye SUN-SG02HP3-EU-DM2 rear

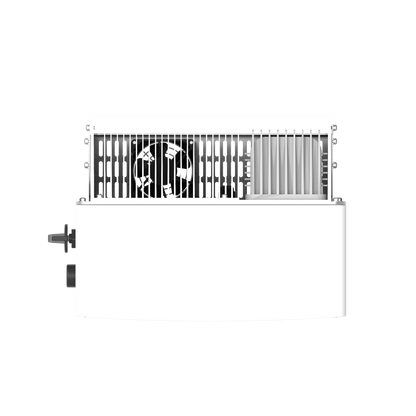

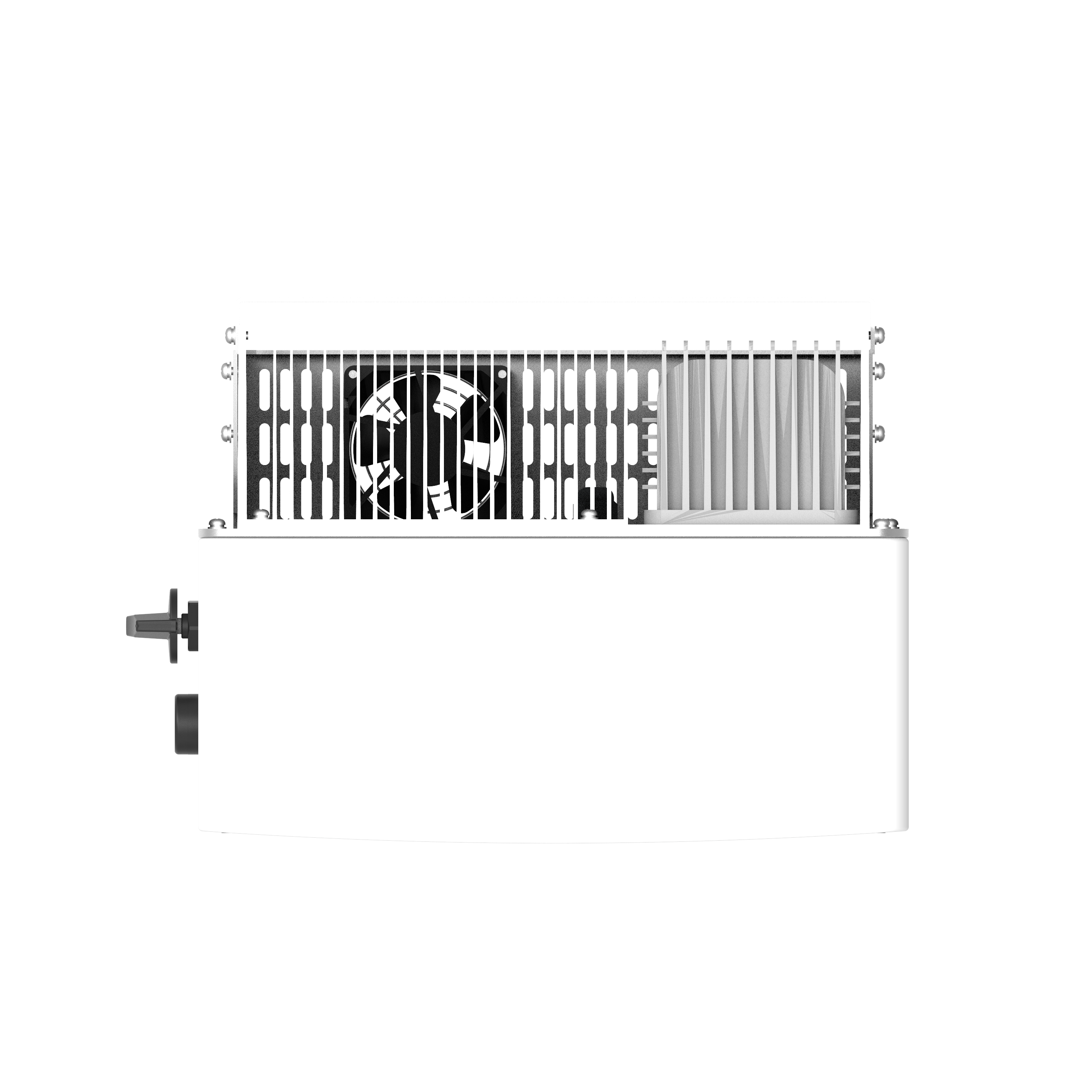

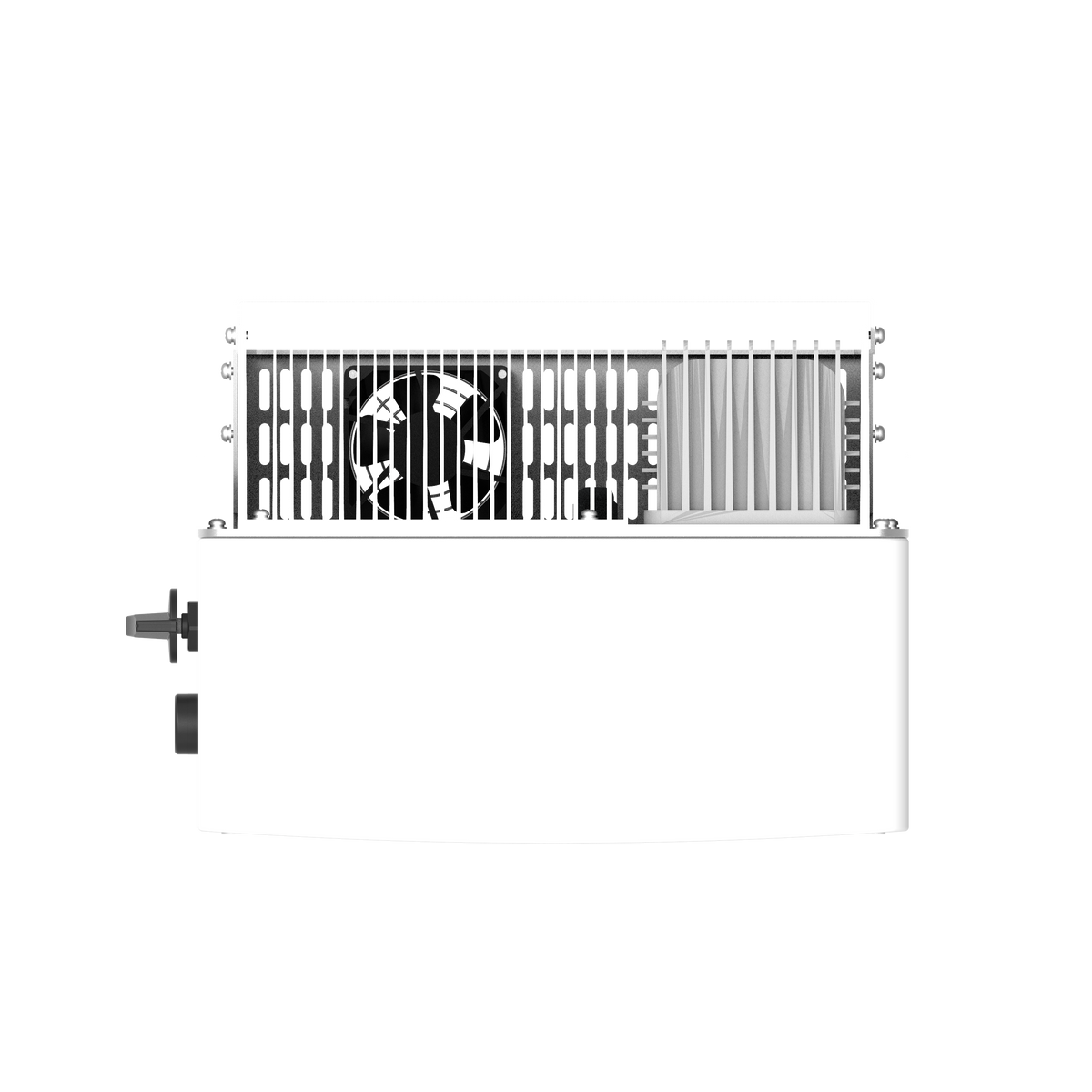

  • Deye SUN-10-12K-SG02HP3-EU-DM2 cabinet
Capacity
₦1,675,900.00
₦1,675,900.00
Tax included.

Three-phase high-voltage hybrid inverter for PV plus storage. 5–12kW, 2 MPPTs, battery 130–700V, up to 10 units in parallel, 100% unbalanced output.

Key specifications

Series

SUN-5/6/8/10/12K-SG02HP3-EU-DM2

Rated power

5 / 6 / 8 / 10 / 12kW three-phase

Max. efficiency

97.6% (Euro 97.0%, MPPT >99%)

Battery

Lithium-ion, 130–700V, 37A or 55A, 1 input

MPPT

2 trackers, 1 string each (1+1)

Parallel

Up to 10 units on-grid and off-grid

Ingress protection

IP65

Warranty

5 years, up to 10 years by country

Battery and backup

High-voltage lithium battery 130–700V. Charge/discharge 37A on 5kW and 6kW, 55A on 8kW, 10kW and 12kW. One battery input, BMS self-adaptation, six charge/discharge windows. Off-grid peak 1.5× rated for 10s. Diesel generator energy can be stored in the battery. Multiple batteries in parallel.

PV and grid

Max. PV voltage 1000V, MPPT 150–850V, start-up 130V, rated 600V. Two MPPTs, one string each (1+1), 20A+20A operating, 30A+30A ISC. Rated AC 220/380V or 230/400V, 3L+N+PE, 50/60Hz. 100% unbalanced output. AC couple to an existing PV plant. Grid-to-load passthrough 35A continuous.

Protection and monitoring

Integrated DC reverse polarity, AC overcurrent/overvoltage/short-circuit, thermal, anti-islanding, insulation monitoring, residual current detection, DC switch, DC component monitoring, Type II surge on DC and AC. Optional AFCI. RS485, RS232, CAN. GPRS/WiFi/Bluetooth/4G/LAN optional. −40°C to +60°C, derating above 45°C. Humidity 0–100%. Altitude 2000m. Noise ≤45dB.

Deye SUN-5/6/8/10/12K-SG02HP3-EU-DM2 | 5–12kW Three-Phase HV Hybrid

₦1,675,900.00

  • Up to

    97.6%

    max. conversion efficiency

  • Charge / discharge

    55A

    max. battery current (8–12kW)

  • On-grid and off-grid

    10

    units in parallel

  • Rated AC

    12kW

    top model in this series

Three-phase HV hybrid inverter

Three-phase hybrid power, 5–12kW.

The Deye SUN-5/6/8/10/12K-SG02HP3-EU-DM2 series couples PV, a high-voltage battery, grid, backup loads and a diesel generator. Specify 5kW, 6kW, 8kW, 10kW or 12kW, or AC-couple it to an existing solar system.

Why this hybrid

  • High-voltage battery, up to 55A

    130–700V lithium pack, BMS self-adaptation, six charge/discharge windows. 37A on 5kW/6kW, 55A on 8–12kW. One battery input.

  • 2 MPPTs, 200% PV access

    Two trackers (1+1). Max. PV access 2× rated AC (10–24kW). Max. PV input 8–19.2kW. 1000V DC, MPPT 150–850V.

  • 10 units in parallel

    On-grid and off-grid parallel, up to 10 pcs. Multiple batteries in parallel. 100% unbalanced output per phase.

  • AC couple and generator

    Retrofit storage onto an existing PV plant. Store diesel-generator energy. Off-grid peak 1.5× rated for 10s.
PV array
Hybrid PCS
HV battery
  • 97.6% max. efficiency
  • 55A max. charge / discharge
  • 130–700V battery window
  • 6 tariff periods

Efficient

High-voltage architecture. Higher efficiency.

Pair a lithium battery from 130V to 700V. Max. efficiency 97.6%, Euro 97.0%, MPPT above 99%. Charge/discharge 37A or 55A depending on SKU, with six tariff windows.

Existing PV
AC couple
Hybrid inverter
GRID
LOAD
GEN
Battery

Flexible

Retrofit storage. Add a generator. Stay online.

AC-couple to an existing PV inverter. GRID, LOAD and GEN support backup loads and diesel charging. Off-grid peak is 1.5× rated for 10s. Grid-to-load passthrough is 35A continuous.

Built for three-phase homes and small C&I

2 MPPTs, one HV battery input, 10-unit parallel, IP65 outdoor cabinet.

  • 2 MPPTs, two strings

    Two trackers, one string each (1+1). 20A operating / 30A ISC per tracker. 1000V DC, MPPT 150–850V, start-up 130V.

  • 100% unbalanced output

    Each phase can take full rated share of the load. Rated 220/380V or 230/400V, 3L+N+PE, 50/60Hz.

  • 10-unit parallel

    On-grid and off-grid parallel, max. 10 pcs. Scale from 5kW to 120kW with the same DM2 platform.

  • IP65, −40°C to +60°C

    Non-isolated topology. Natural cooling on 5kW/6kW, intelligent air on 8–12kW. ≤45dB. 2000m altitude.
Specifications

Technical data

Models SUN-5/6/8/10/12K-SG02HP3-EU-DM2
Rated AC power 5 / 6 / 8 / 10 / 12kW
Max. AC apparent 5.5 / 6.6 / 8.8 / 11 / 13.2kVA
Max. / Euro / MPPT efficiency 97.6% / 97.0% / >99%
Battery type Lithium-ion, BMS self-adaptation
Battery voltage / current 130–700V · 37A (5/6kW) or 55A (8/10/12kW) · 1 input
Max. PV voltage / MPPT range 1000V · 150–850V · start-up 130V · rated 600V
MPP trackers 2 trackers · 1+1 strings · 20A+20A / 30A+30A ISC
Max. PV access / input 10/12/16/20/24kW access · 8/9.6/12.8/16/19.2kW input
Grid 220/380V, 230/400V · 3L+N+PE · 50/60Hz
Unbalanced output 100% per phase
Passthrough / peak 35A grid-to-load · 1.5× rated off-grid for 10s
Parallel Max. 10 pcs on-grid and off-grid
Protection IP65 · Type II DC/AC surge · optional AFCI
Environment −40°C to +60°C (>45°C derating) · humidity 0–100% · 2000m · ≤45dB
Cooling Natural (5/6kW) · intelligent air (8/10/12kW)
Interface LCD+LED · RS485/RS232/CAN · GPRS/WiFi/Bluetooth/4G/LAN optional
Warranty 5 years / up to 10 years depending on country

Which models are in this series?

Five SKUs: SUN-5K, 6K, 8K, 10K and 12K-SG02HP3-EU-DM2. All have 2 MPPTs (1+1), 130–700V battery, three-phase AC. Battery current is 37A on 5kW/6kW and 55A on 8kW/10kW/12kW.

Can I add storage to an existing PV plant?

Yes. AC coupling lets you retrofit this hybrid inverter onto an existing solar system without replacing the original grid-tied inverter.

Does it support a diesel generator?

Yes. The inverter can store generator energy in the battery for weak-grid, off-grid and backup sites.

How does cooling differ by model?

5kW and 6kW use natural cooling. 8kW, 10kW and 12kW use intelligent air cooling. Noise is ≤45dB.

What warranty is included?

5 years, up to 10 years depending on installation country. Refer to the Deye warranty policy for the site country.

Specify this inverter for the next three-phase site

5–12kW high-voltage hybrid, 2 MPPTs, 10-unit parallel, AC coupling and generator support.
