Three-phase high-voltage hybrid inverter for commercial and industrial solar-plus-storage. 29.9–50 kW, up to 10 units in parallel, and 100% unbalanced output.
Up to
Charge / discharge
On-grid and off-grid
Rated output
C&I hybrid inverter

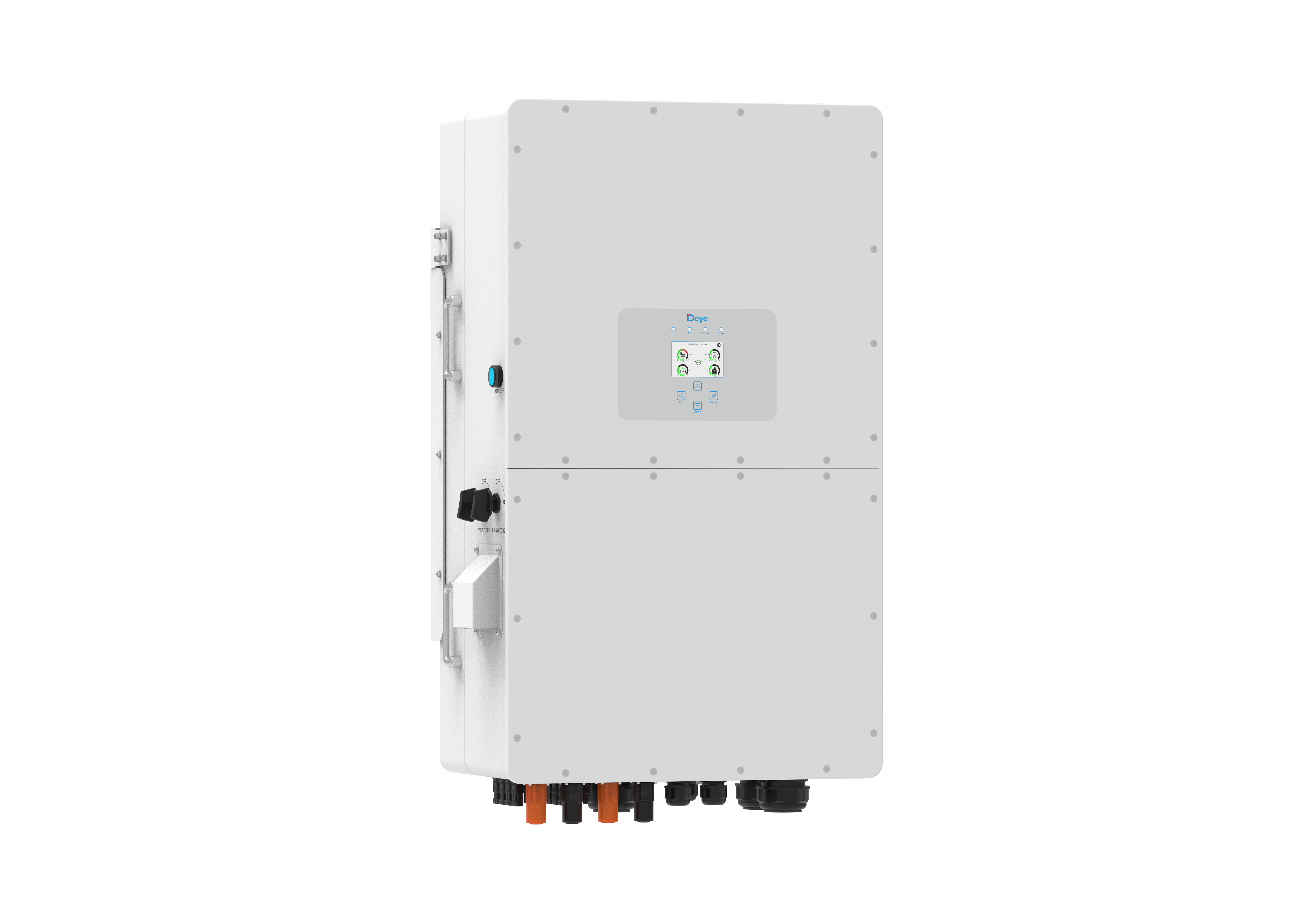

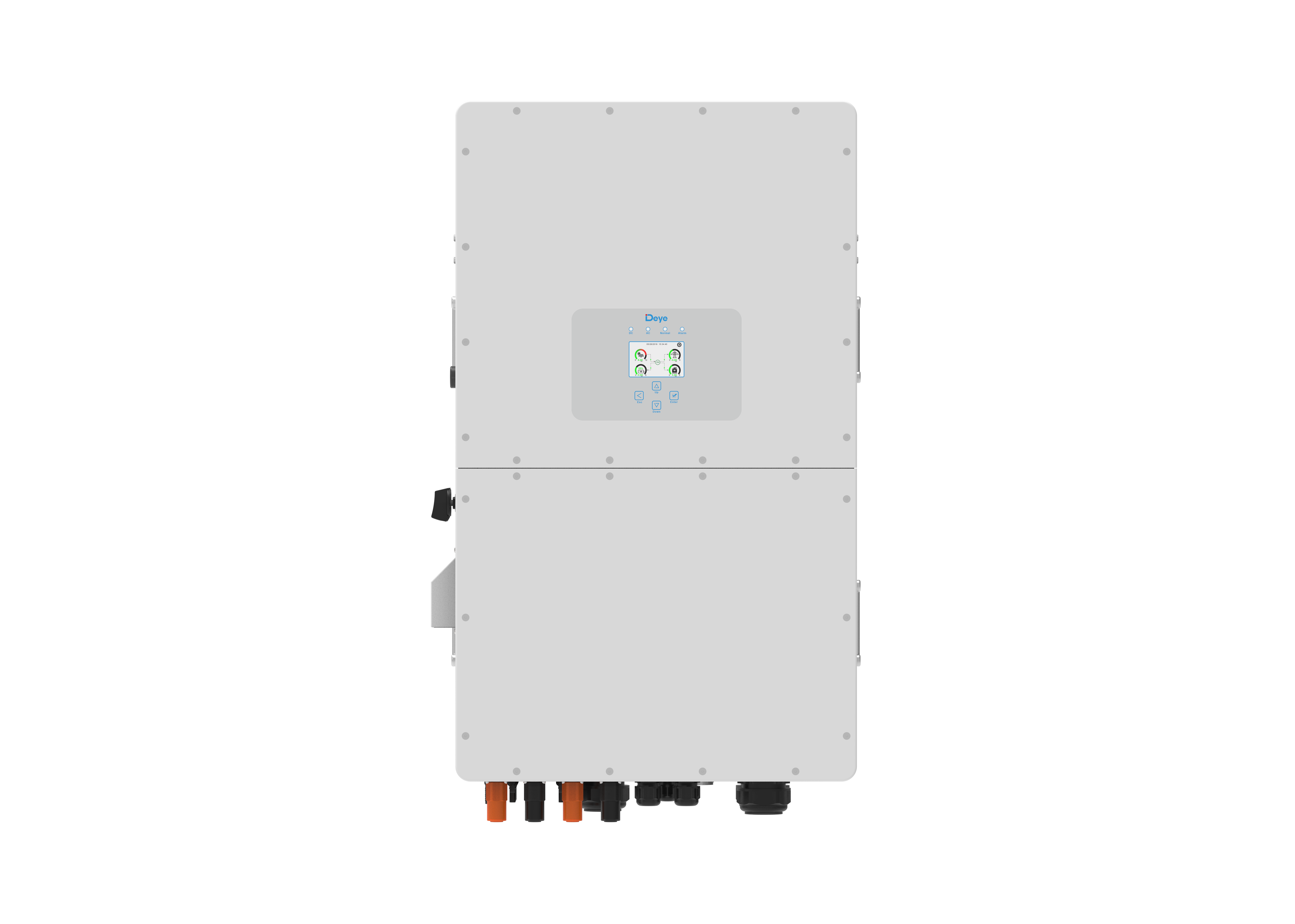

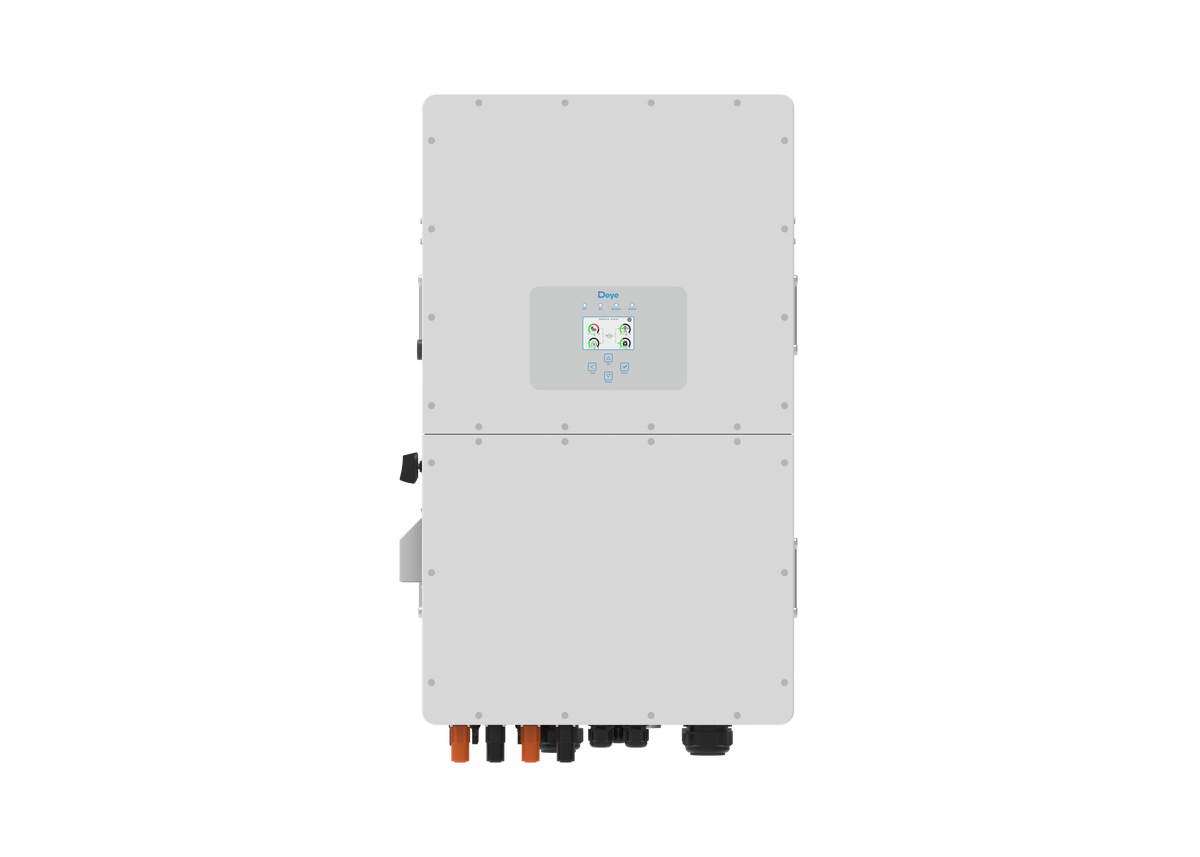

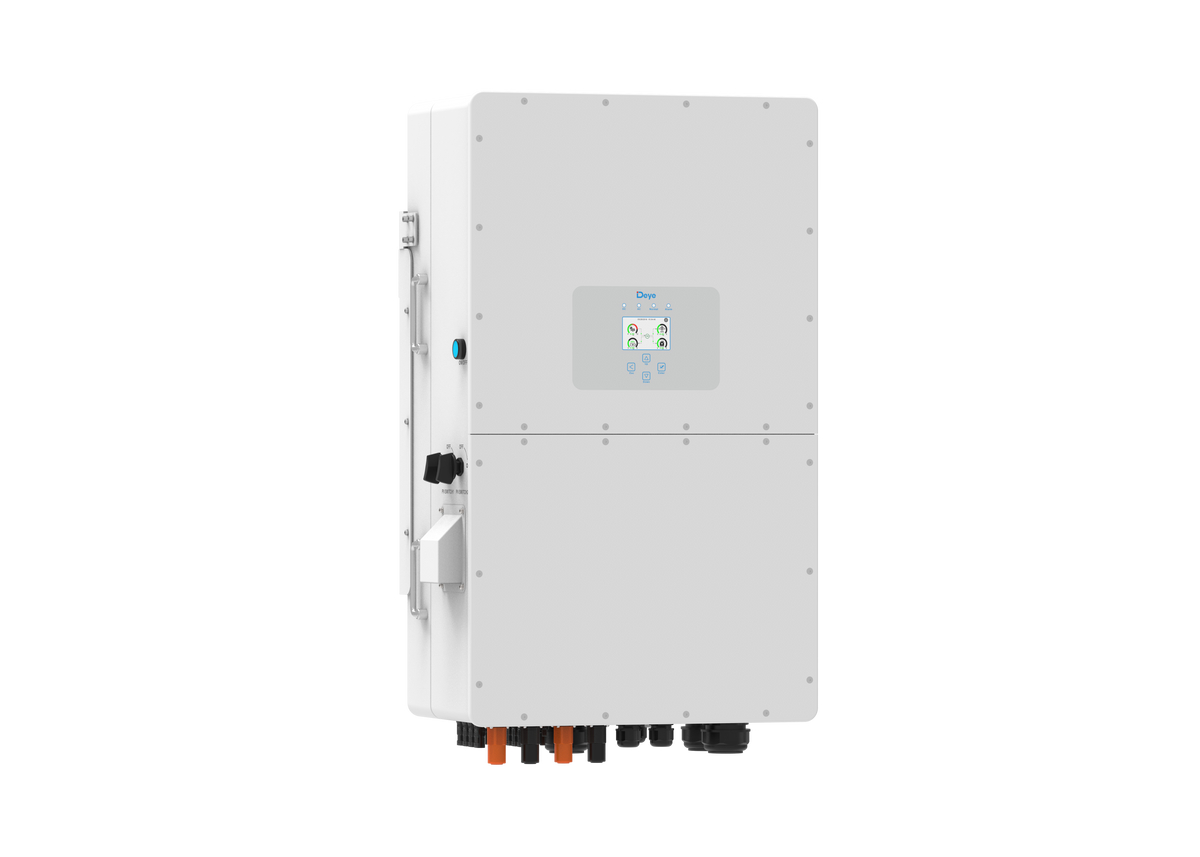

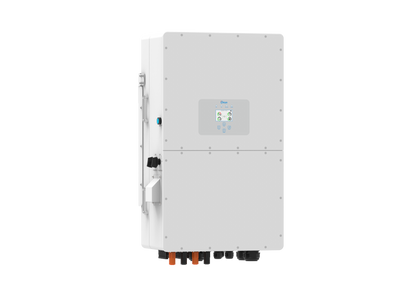

The Deye SUN-SG01HP3-EU-BM3/BM4 series couples PV, high-voltage batteries, grid, backup loads, and a diesel generator in one IP65 cabinet. Use it for new C&I plants or AC-couple it to an existing solar system.
Efficient, flexible, and built for European C&I grid codes — from peak shaving to full-site backup.
160–800 V lithium pack, dual battery inputs, BMS self-adaptation, and six charge/discharge windows for time-of-use control.
Parallel up to 10 inverters on-grid and off-grid, with multiple batteries in parallel, to grow capacity without a platform change.
Each phase can carry full rated power independently, so shops, offices, and mixed C&I loads stay stable without oversizing.
Retrofit storage onto existing PV with AC coupling. Dedicated GEN port stores diesel-generator energy for weak-grid and backup sites.
Hardware

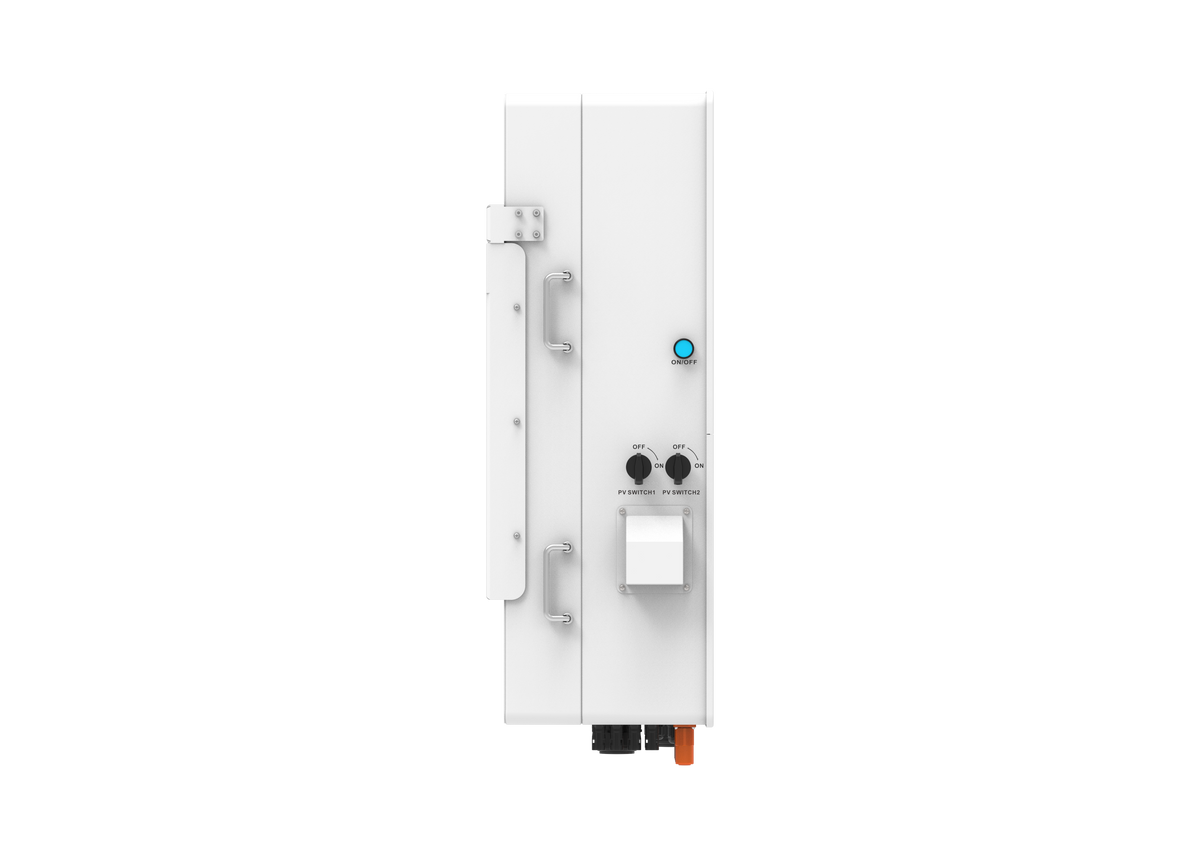

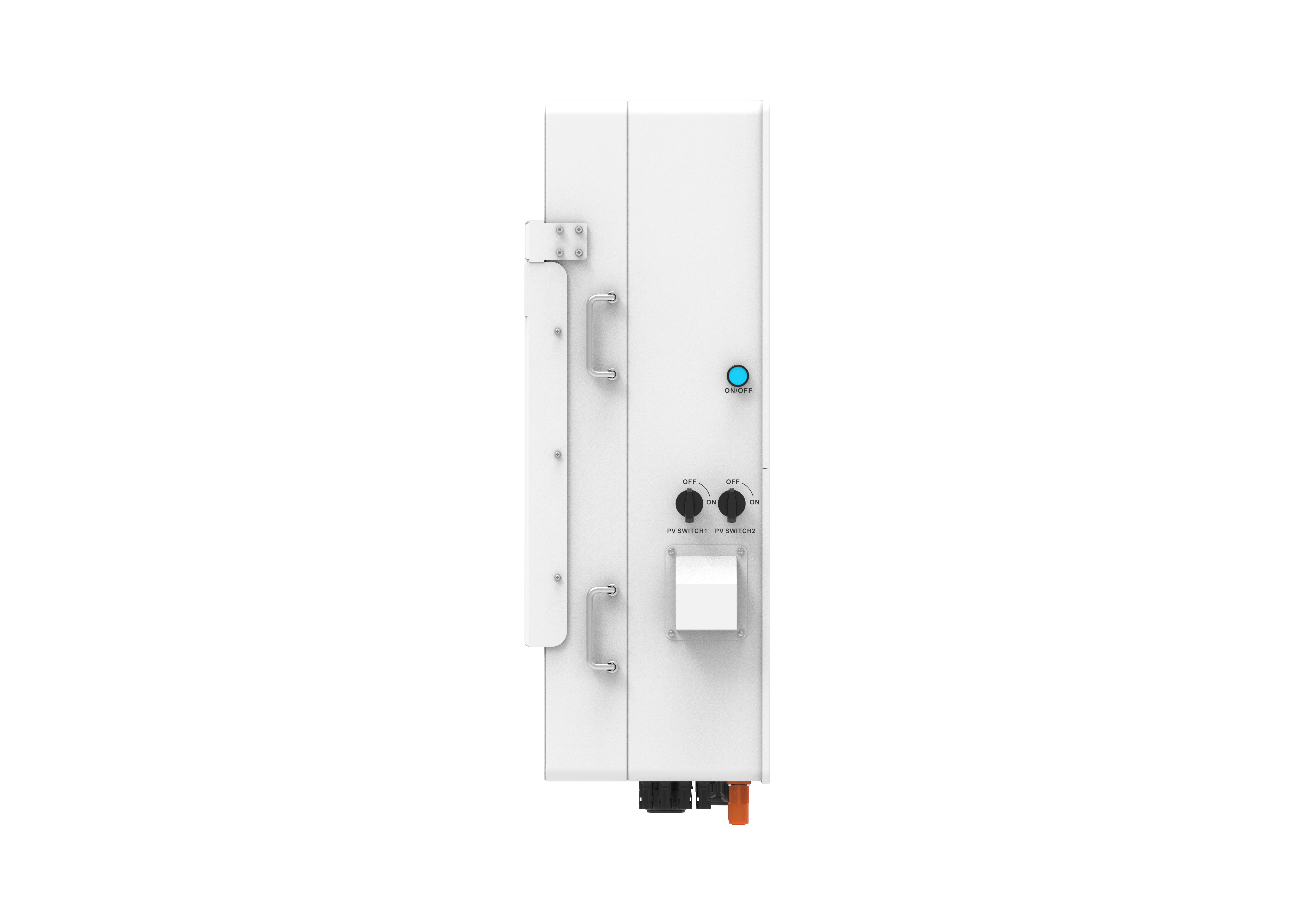

Dedicated battery, PV, load, generator, and grid terminals keep C&I wiring tidy. Dual PV isolators sit on the side for lock-out during service.
Efficient
Pair lithium batteries from 160 V to 800 V at up to 100 A. Max. efficiency 97.6%, Euro efficiency 97.0%, and MPPT efficiency above 99% keep more of every kilowatt-hour for the load or the tariff window.
Flexible

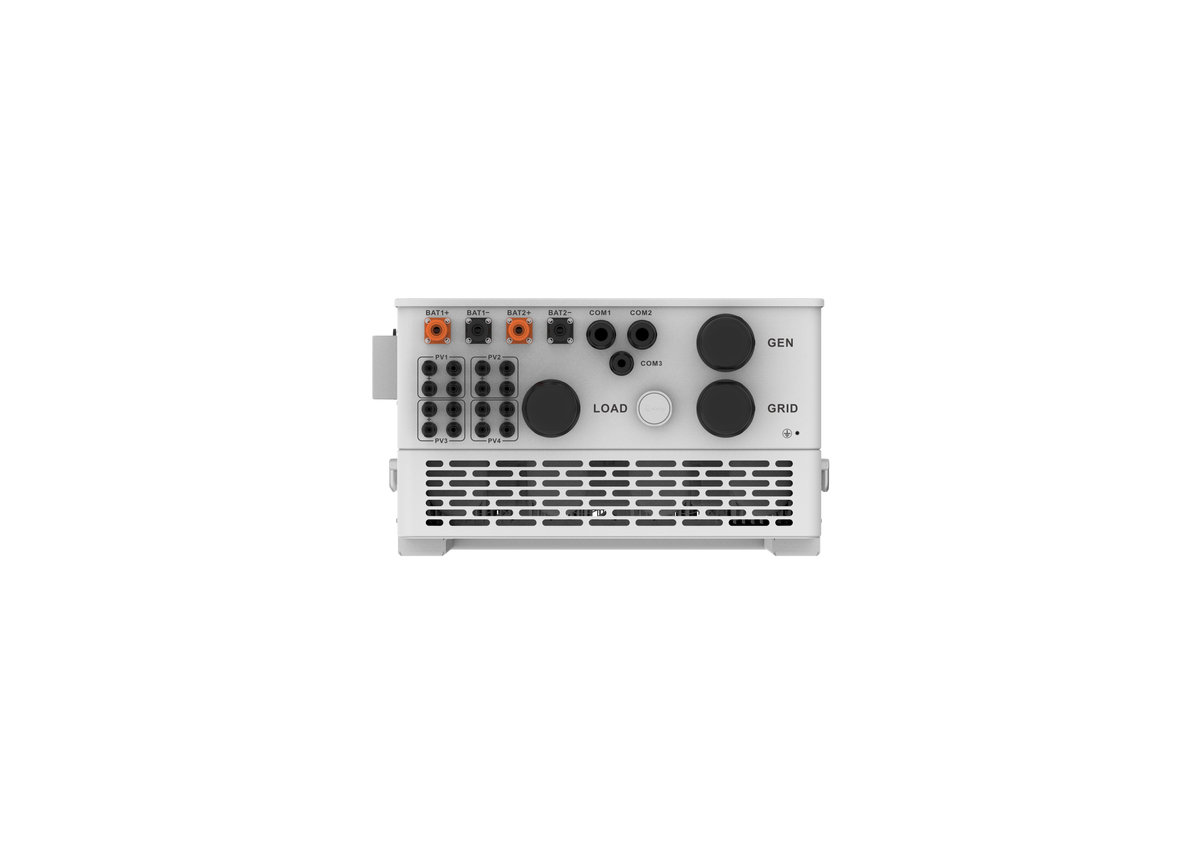

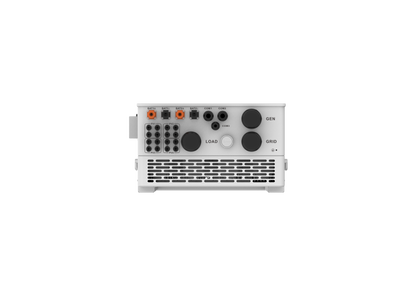

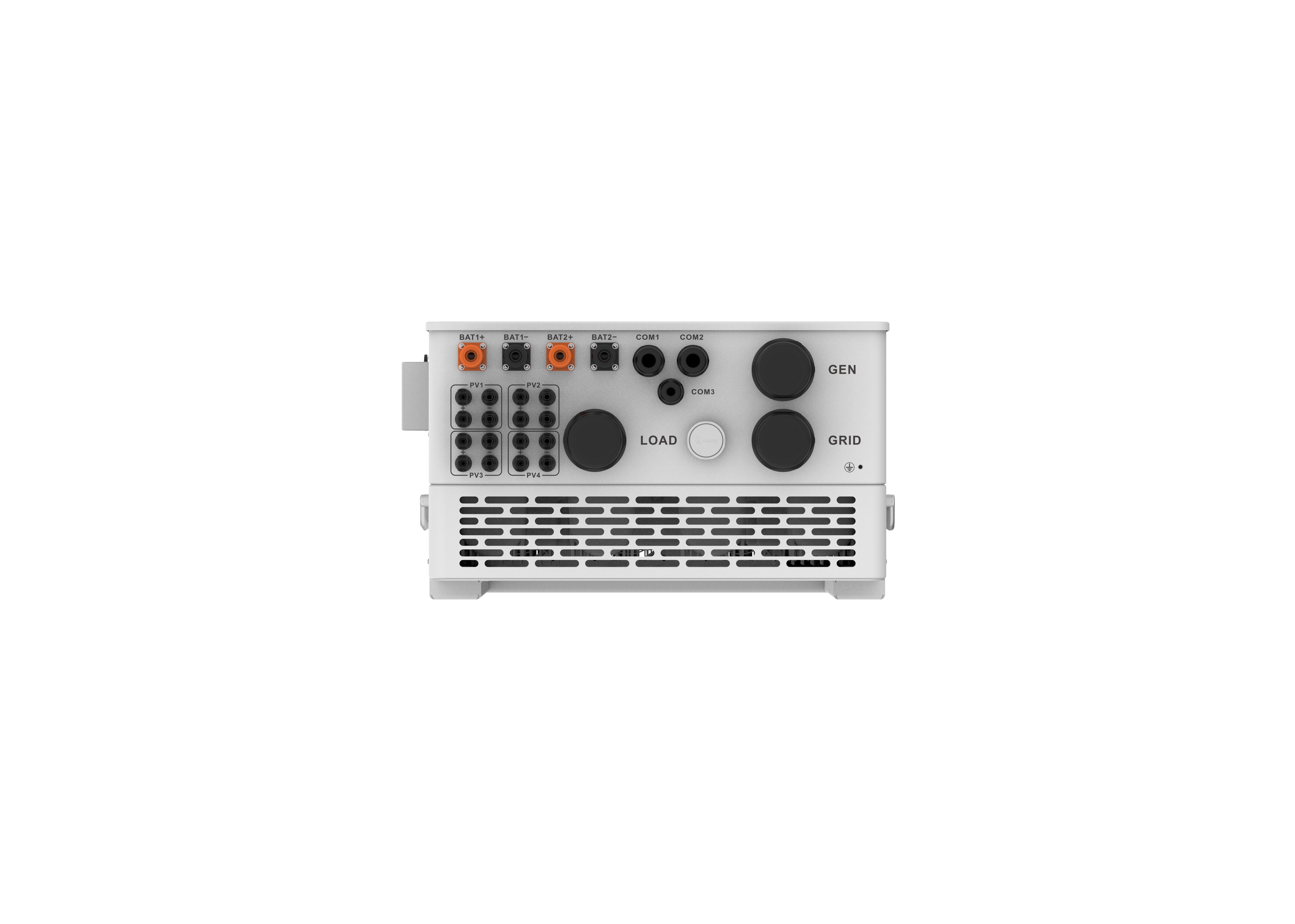

AC-couple to an existing PV inverter without ripping out the original array. GRID, LOAD, and GEN ports on the underside support backup loads and diesel charging. Off-grid peak power is 1.5× rated for 10 seconds to start motors and HVAC.
Safety, EMC, and grid standards in one package, with the ports installers actually use on site.
BM3: 3 trackers. BM4: 4 trackers. Two strings per tracker for mixed roof orientations.
EN 50549, VDE-AR-N 4105, G99, CEI 0-21 and more. Type II surge on DC and AC. Optional AFCI.
WiFi, RS485, and CAN on the inverter. GPRS, Bluetooth, or 4G monitoring for fleet visibility.

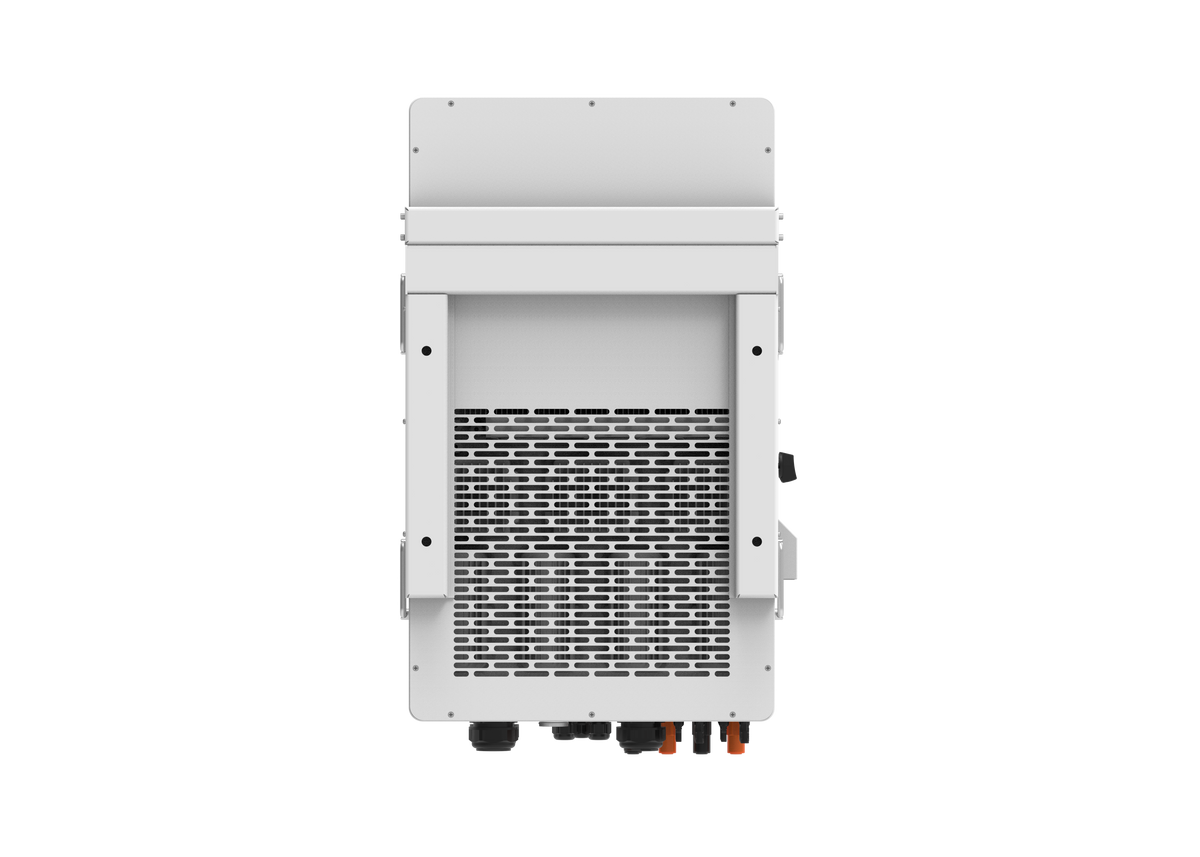

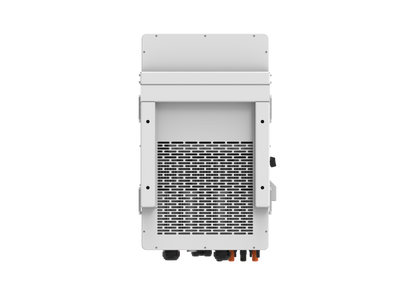

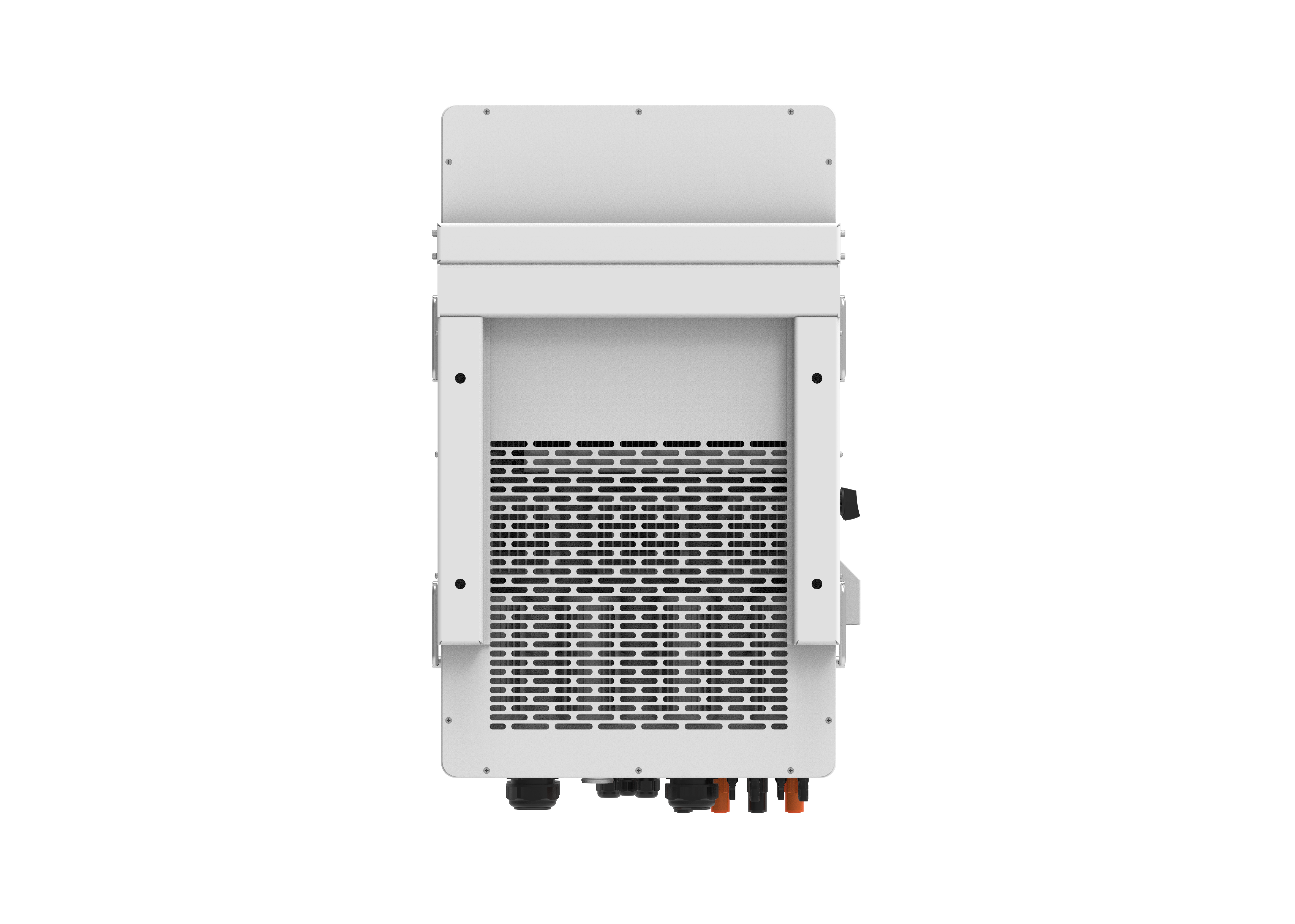

IP65, −40 to +60°C with derating above 45°C, 2000 m altitude, intelligent air cooling, about 80 kg.
| Models | SUN-29.9/30/35K-SG01HP3-EU-BM3 · SUN-40/50K-SG01HP3-EU-BM4 |
|---|---|
| Rated AC power | 29.9 / 30 / 35 / 40 / 50 kW |
| Max. / Euro / MPPT efficiency | 97.6% / 97.0% / >99% |
| Battery type | Lithium-ion, BMS self-adaptation |
| Battery voltage / current | 160–800 V · max. 100 A charge/discharge · 2 inputs |
| Max. PV voltage / MPPT range | 1000 V · 150–850 V · start-up 180 V |
| MPP trackers | BM3: 3 (2+2+2 strings) · BM4: 4 (2+2+2+2 strings) |
| Grid | 220/380 V, 230/400 V · 3L+N+PE · 50/60 Hz |
| Unbalanced output | 100% per phase |
| Off-grid peak | 1.5× rated power for 10 s |
| AC passthrough | Max. 200 A grid to load |
| Parallel operation | Up to 10 units on-grid and off-grid |
| Charge windows | 6 programmable charge/discharge periods |
| Environment | IP65 · −40 to +60°C · ≤65 dB · 2000 m |
| Size / weight | 527 × 894 × 294 mm · approx. 80 kg |
| Communications | WiFi, RS485, CAN · GPRS / Bluetooth / 4G monitoring |
| Grid codes | IEC 61727, IEC 62116, CEI 0-21, EN 50549, G99, VDE-AR-N 4105 |
| Warranty | 5 years / up to 10 years depending on country |
High-voltage hybrid power, 10-unit parallel, AC coupling, and generator support — ready for European commercial sites.
