Deye SUN-15/20/25K-SG02HP3-EU-DM3 | 15–25kW Three-Phase HV Hybrid

From ₦2,234,600.00

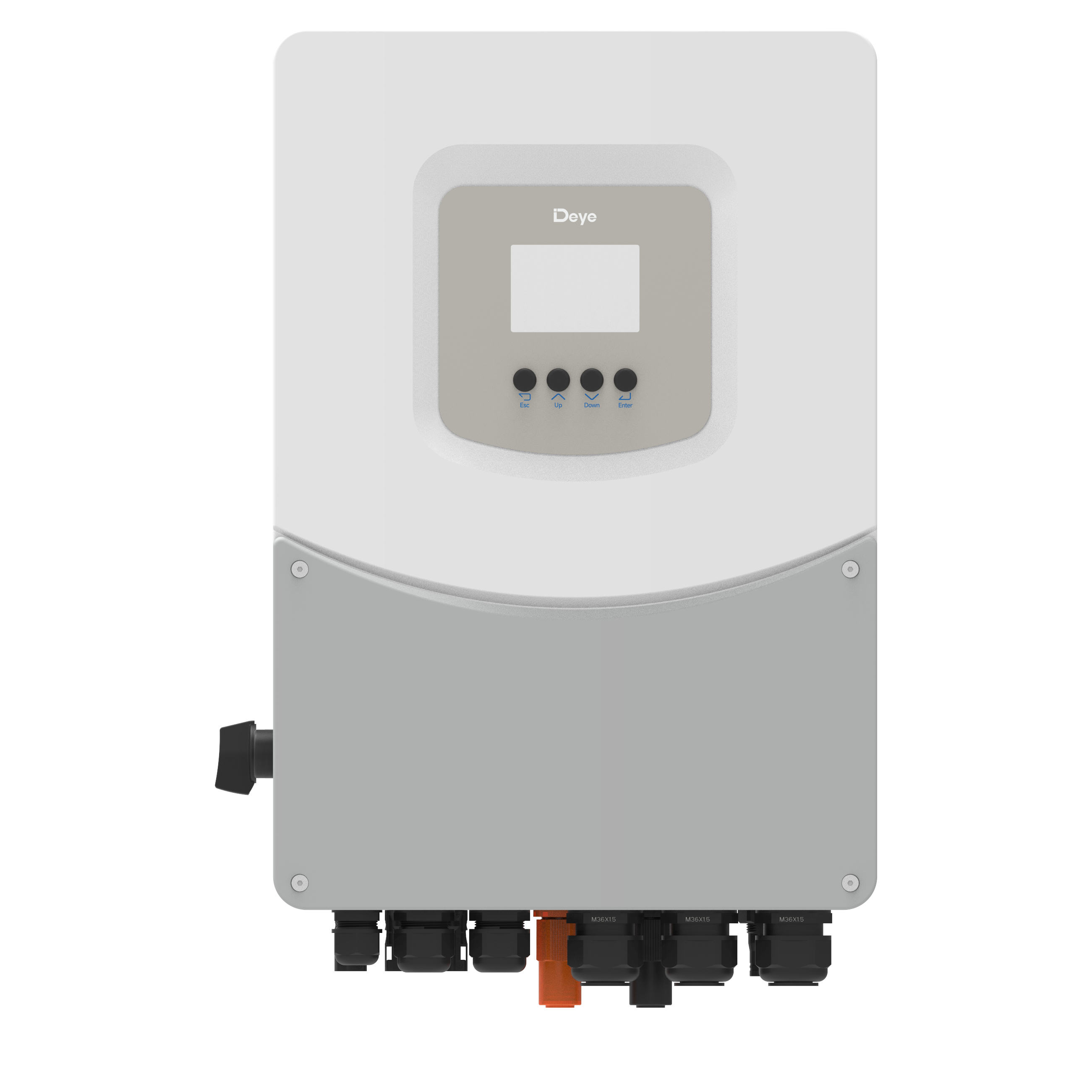

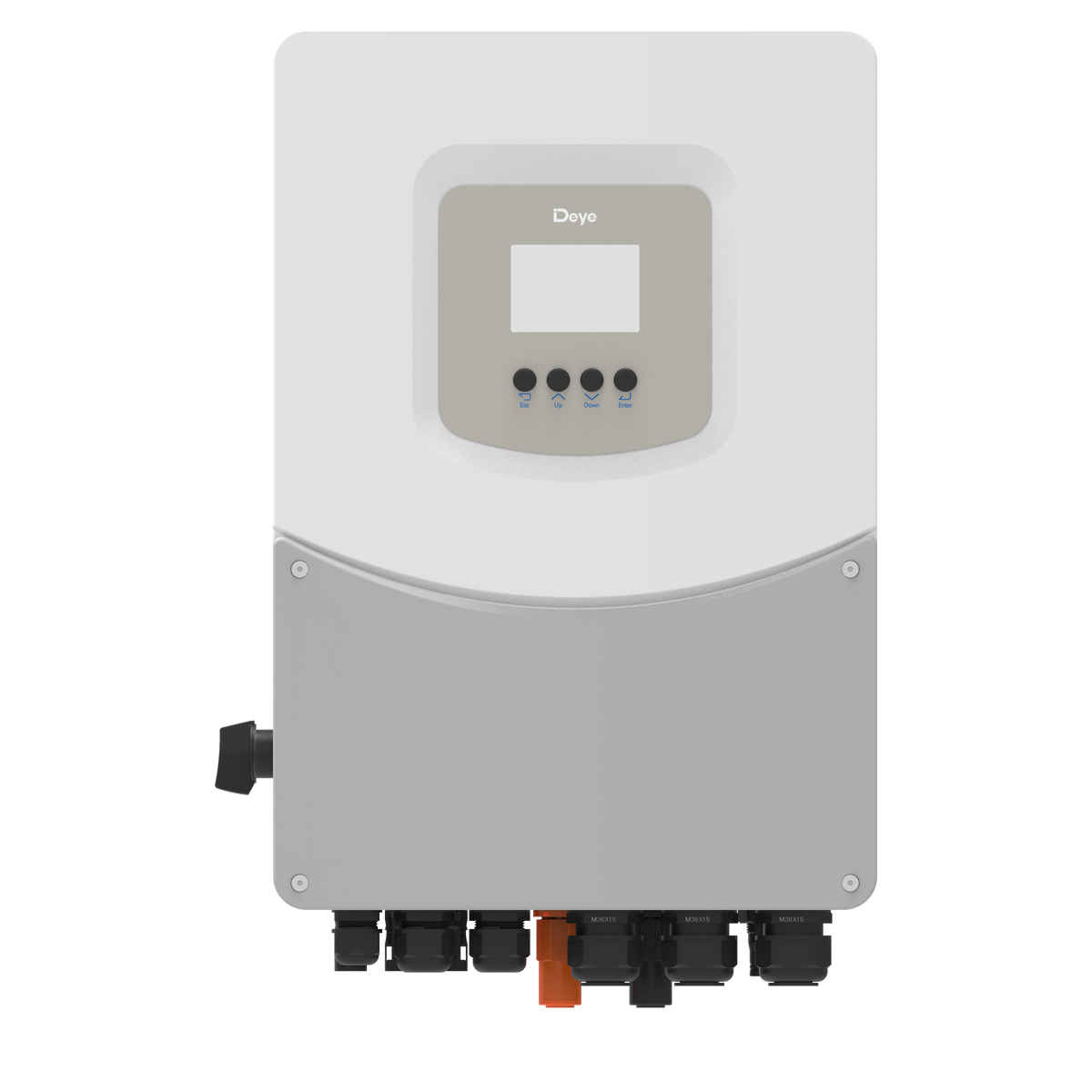

  • Deye SUN-SG02HP3-EU-DM3 three-phase hybrid inverter front

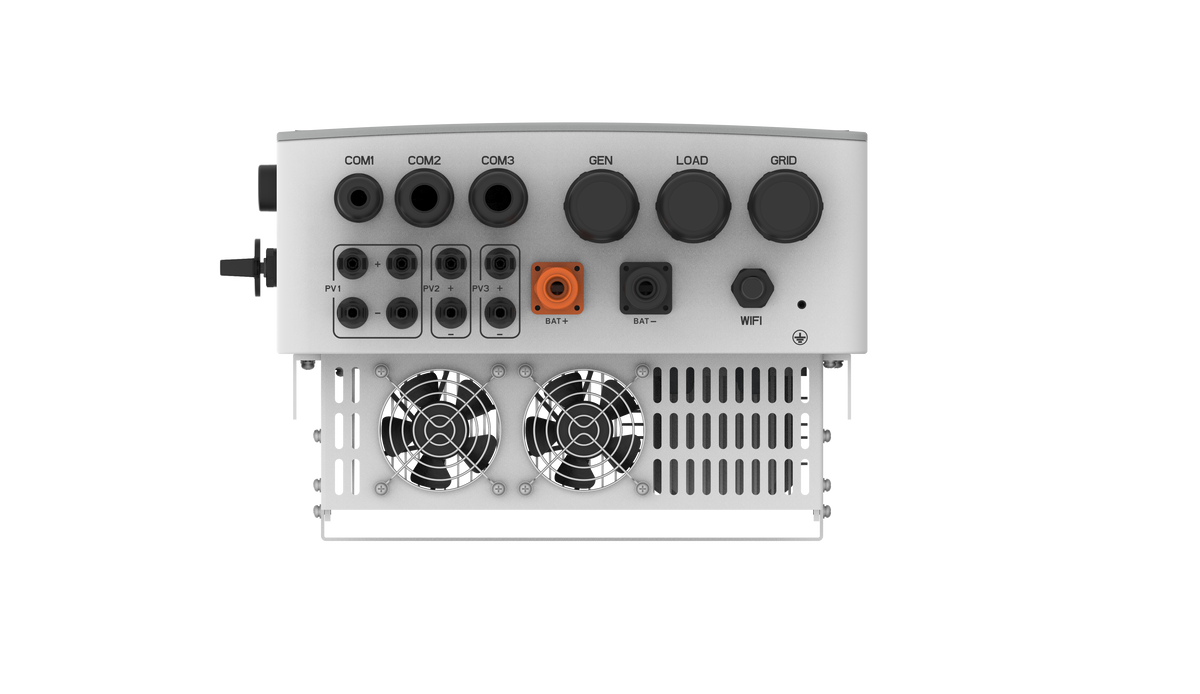

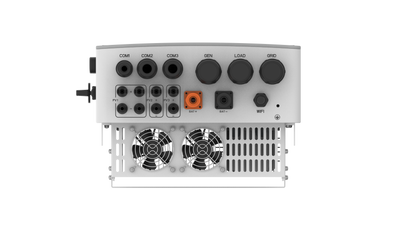

  • Deye SUN-SG02HP3-EU-DM3 bottom ports PV battery GEN LOAD GRID

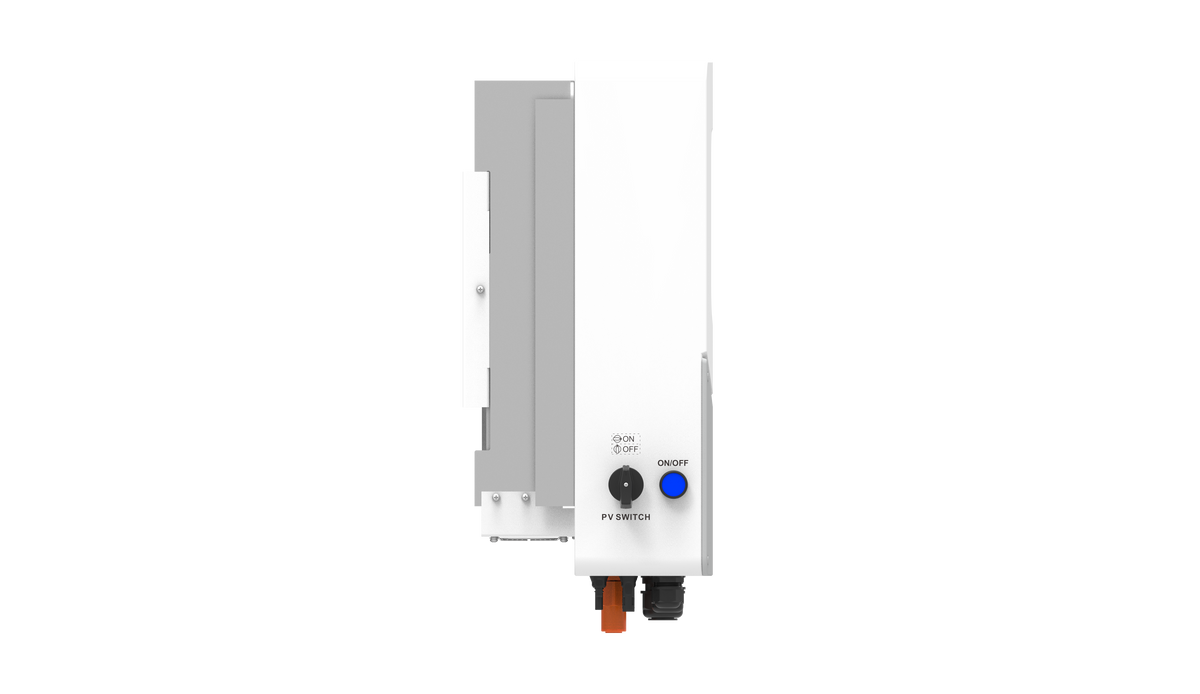

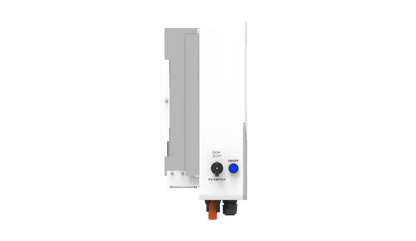

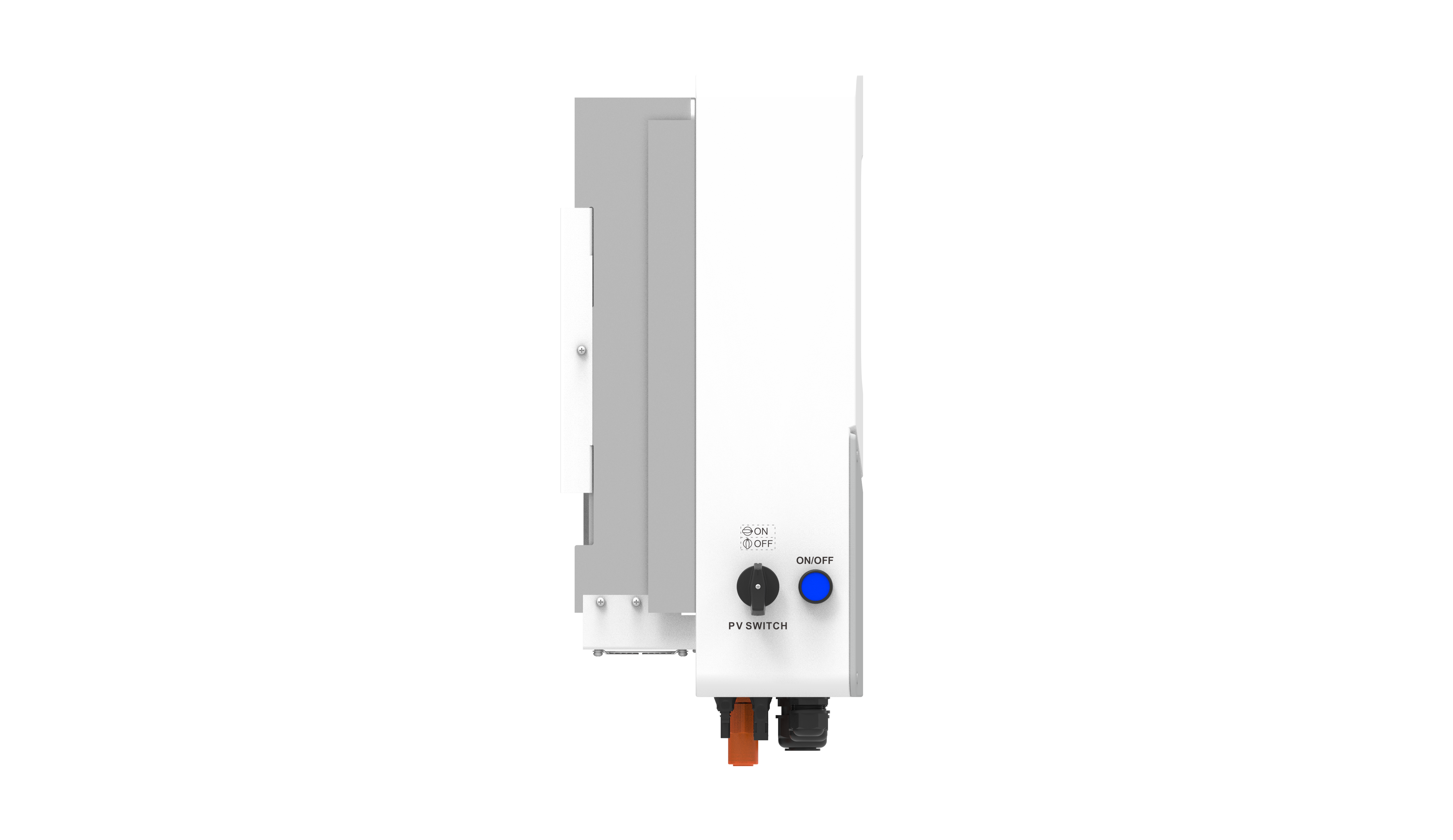

  • Deye SUN-SG02HP3-EU-DM3 side PV switch and ON/OFF

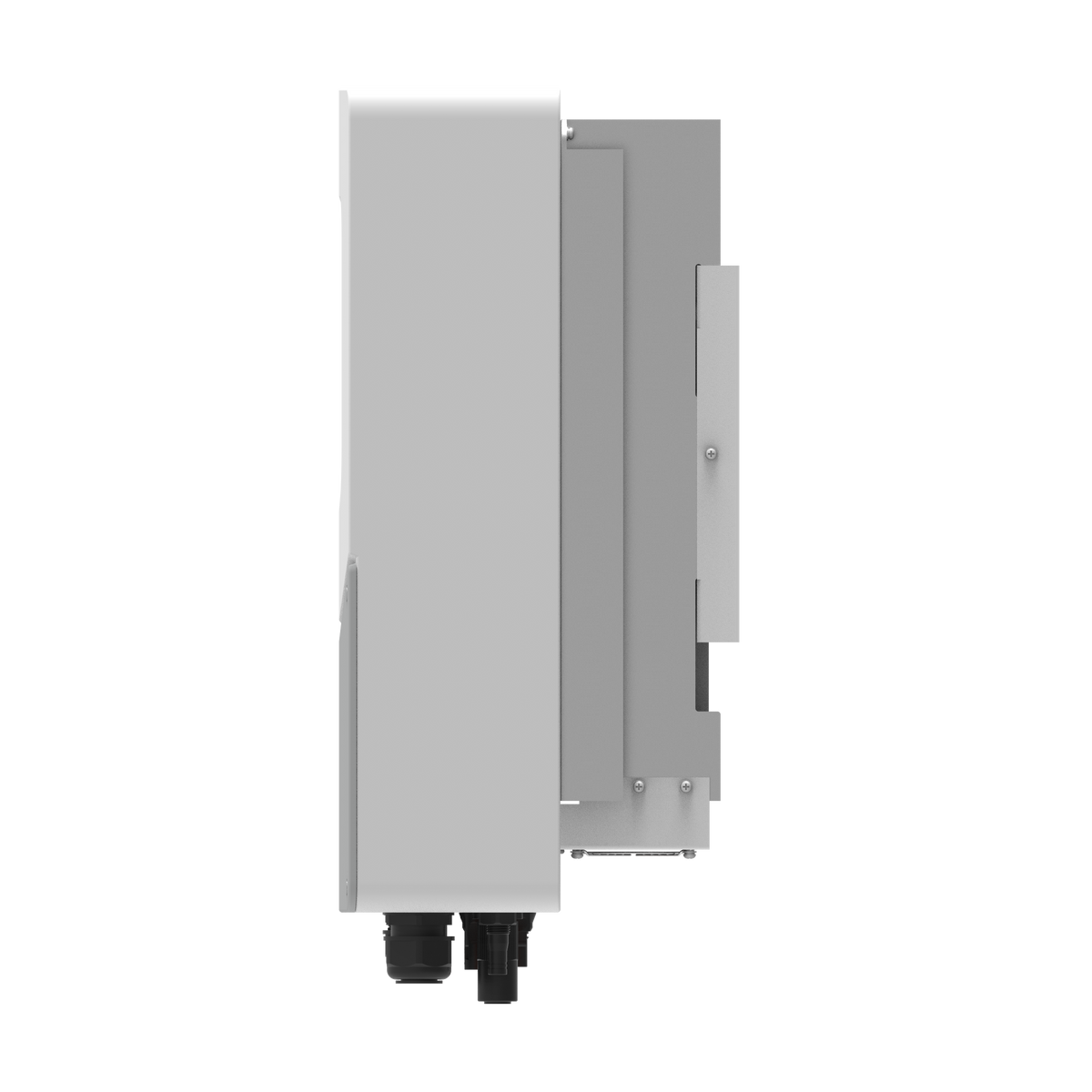

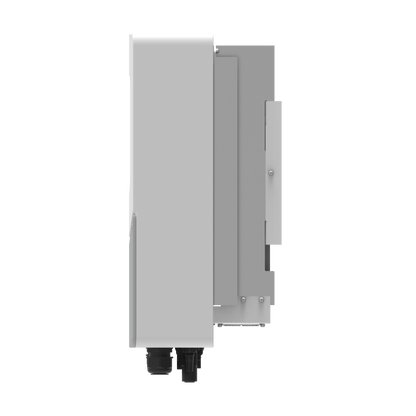

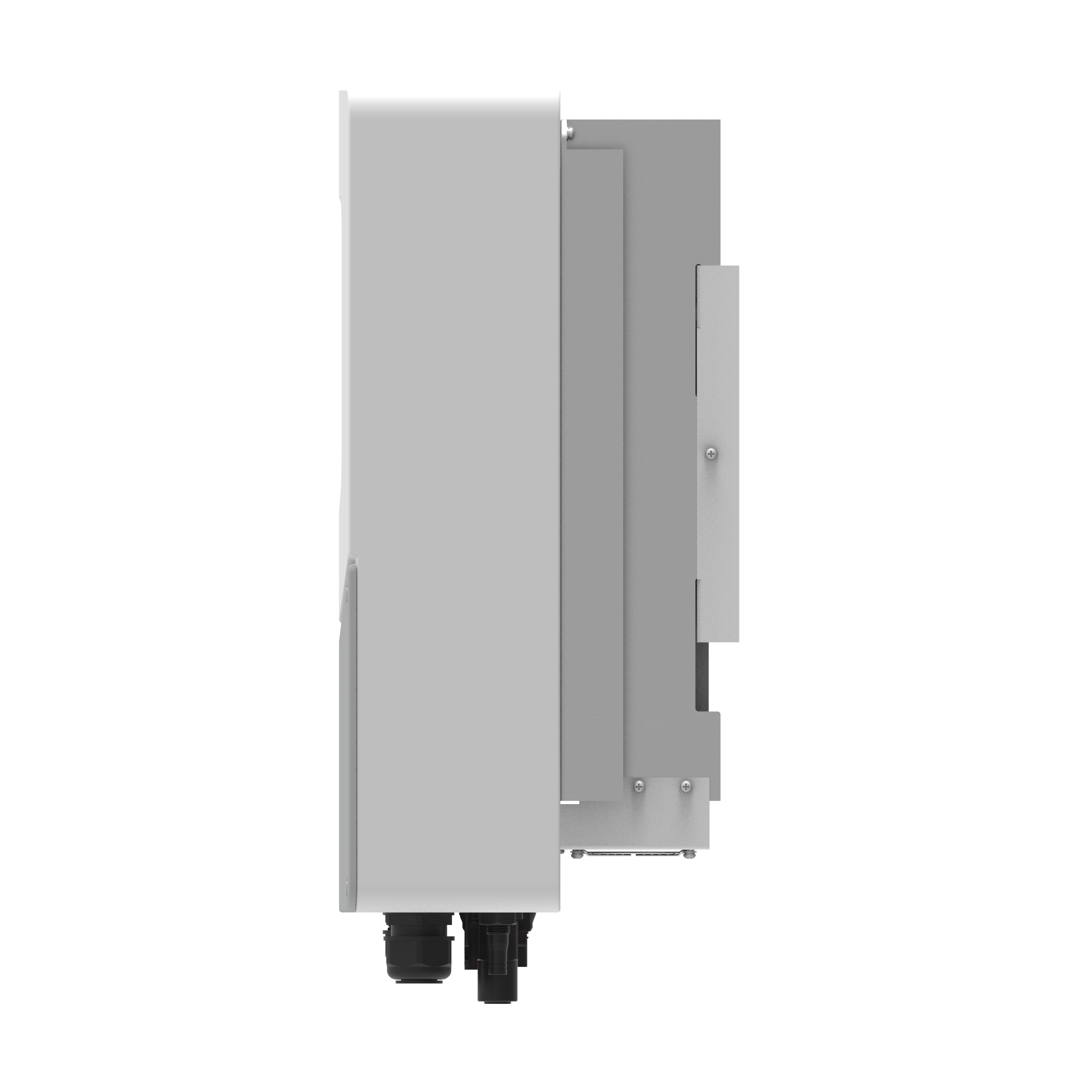

  • Deye SUN-SG02HP3-EU-DM3 side wall-mount profile

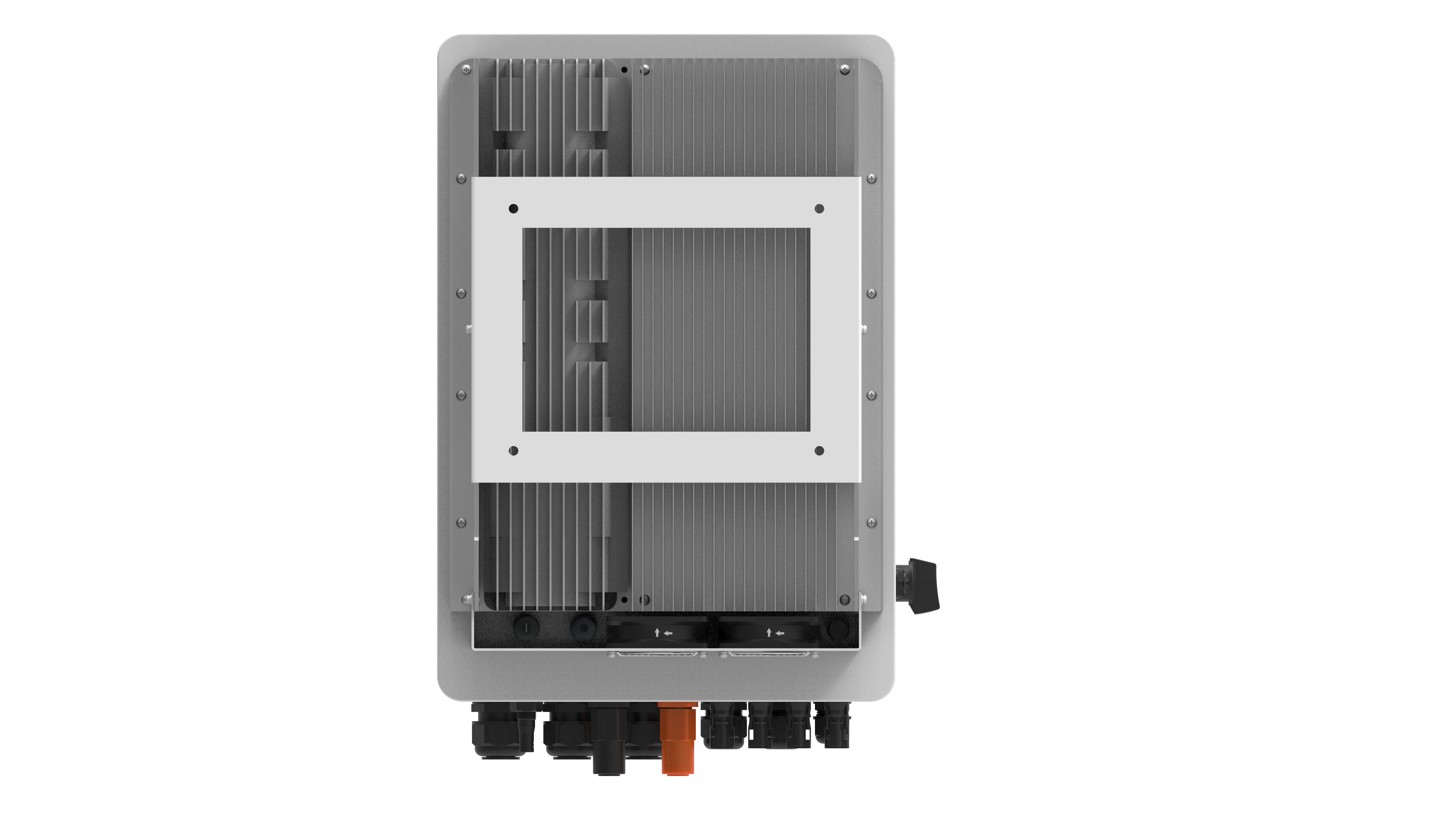

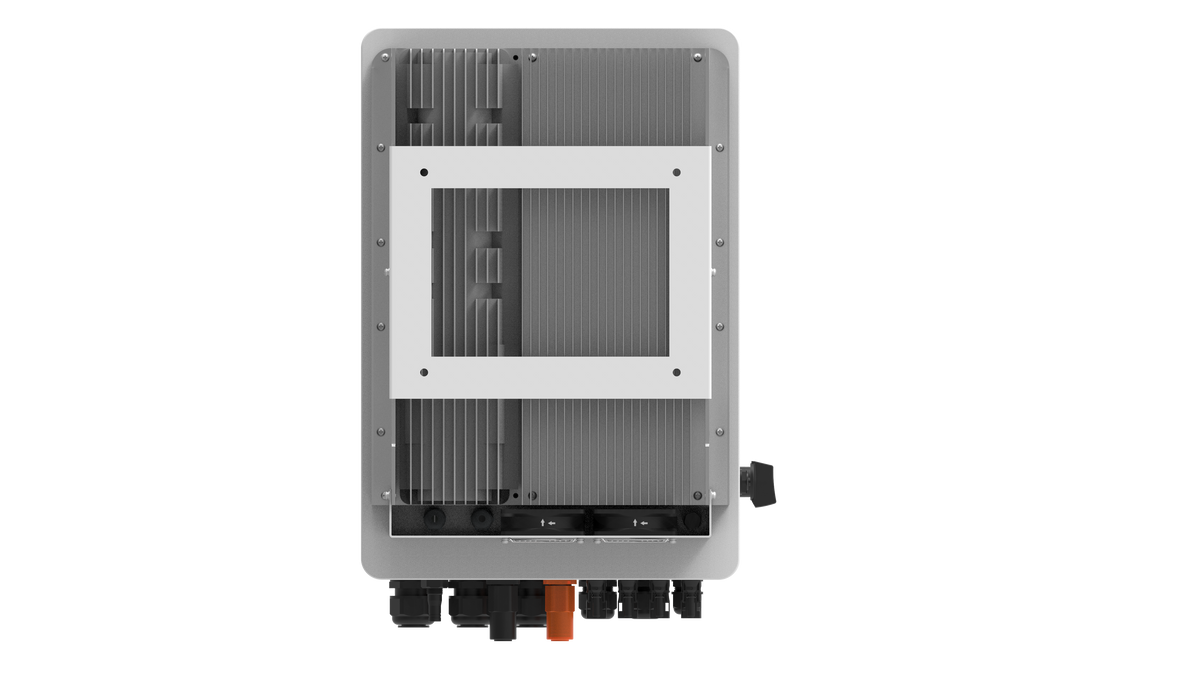

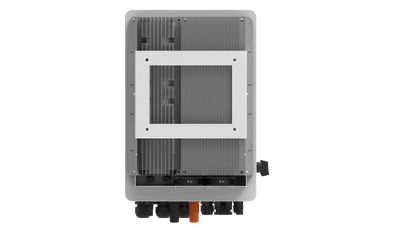

  • Deye SUN-SG02HP3-EU-DM3 rear heatsink and mounting bracket

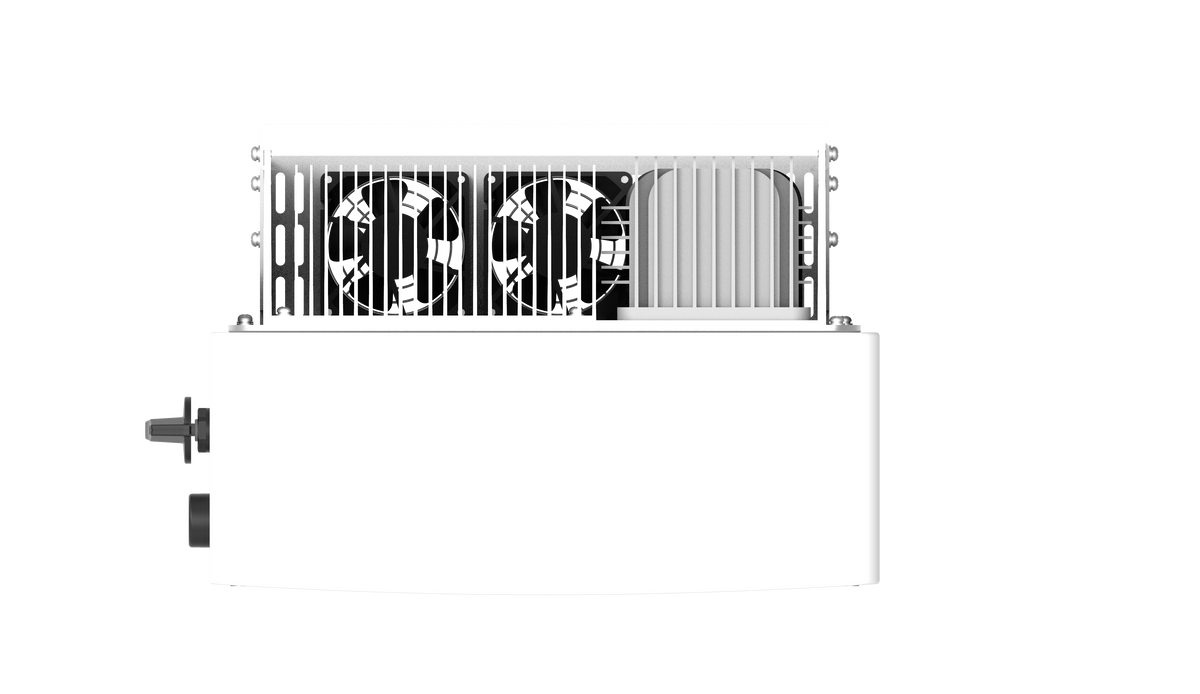

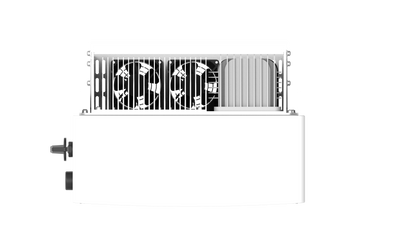

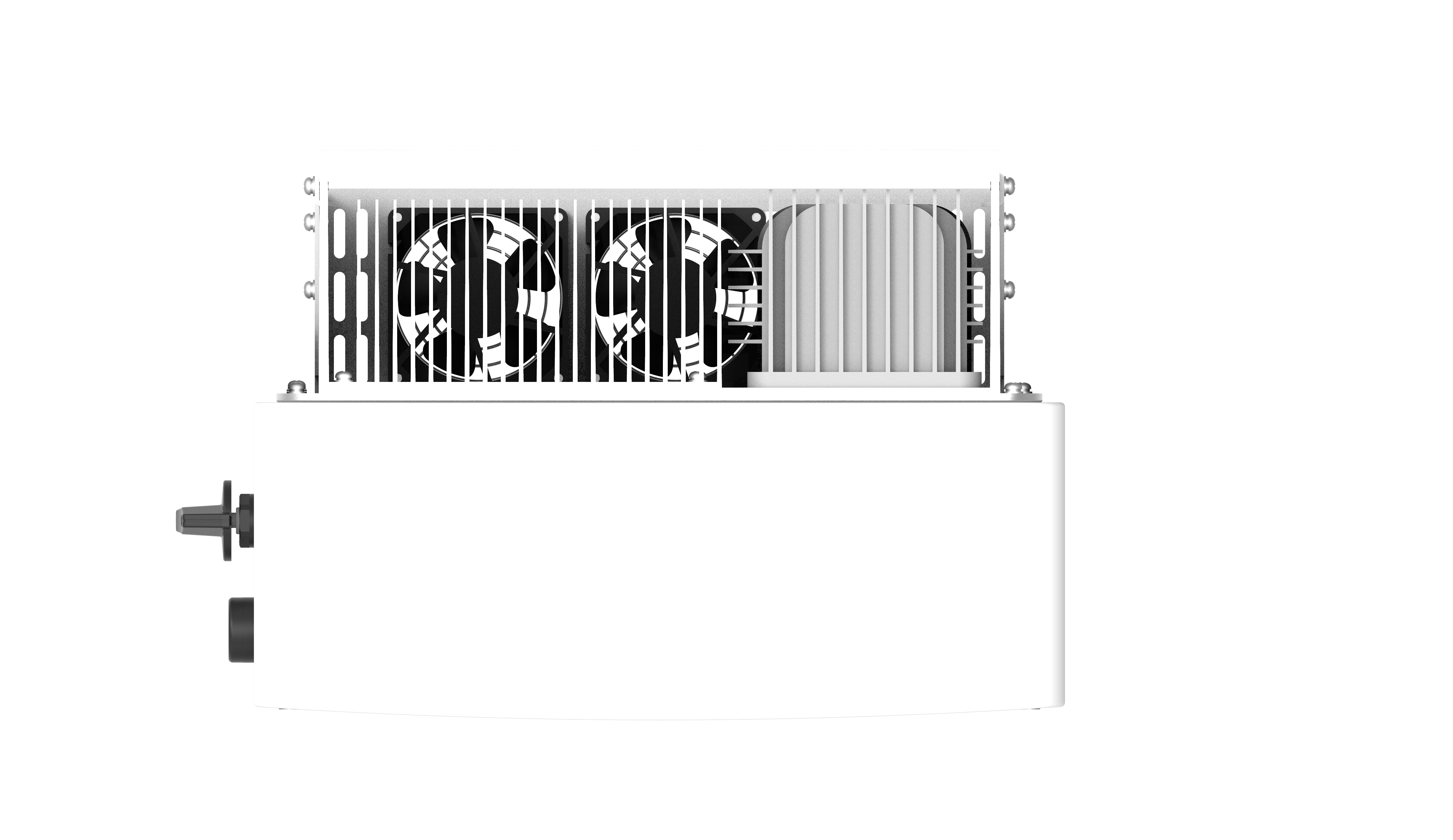

  • Deye SUN-SG02HP3-EU-DM3 top intelligent air cooling
Capacity
₦2,234,600.00
₦2,234,600.00
Tax included.

Three-phase high-voltage hybrid inverter for PV plus storage. 15–25kW, 3 MPPTs, battery 160–700V, up to 10 units in parallel, 100% unbalanced output.

Key specifications

Series

SUN-15/20/25K-SG02HP3-EU-DM3

Rated power

15 / 20 / 25kW three-phase

Max. efficiency

97.6% (Euro 97.0%, MPPT >99%)

Battery

Lithium-ion, 160–700V, 55A charge/discharge, 1 input

MPPT

3 trackers, 2+1+1 strings

Parallel

Up to 10 units on-grid and off-grid

Ingress protection

IP65

Warranty

5 years, up to 10 years by country

Battery and backup

High-voltage lithium battery 160–700V with a maximum 55A charge and discharge current. Single battery input, BMS self-adaptation, and six programmable charge/discharge windows. Off-grid peak 1.5× rated for 10s. Diesel generator energy can be stored in the battery. Multiple batteries in parallel.

PV and grid

Max. PV voltage 1000V, MPPT 150–850V, start-up 180V, rated 600V. Three MPPTs with 2+1+1 strings. Operating current 36+20+20A, short-circuit 54+30+30A. Rated AC 220/380V or 230/400V, 3L+N+PE, 50/60Hz. 100% unbalanced output. AC couple to an existing PV plant. Grid-to-load passthrough 60A continuous.

Protection and monitoring

Integrated DC reverse polarity, AC overcurrent/overvoltage/short-circuit, thermal, anti-islanding, insulation monitoring, residual current detection, DC switch, DC component monitoring, Type II surge on DC and AC. Optional AFCI. WIFI, RS485, CAN. GPRS/WiFi/Bluetooth/4G monitoring. −40°C to +60°C, derating above 45°C. Humidity 0–100%. Altitude 3000m. Noise ≤45dB. Intelligent air cooling.

Deye SUN-15/20/25K-SG02HP3-EU-DM3 | 15–25kW Three-Phase HV Hybrid

₦2,234,600.00

  • Up to

    97.6%

    max. conversion efficiency

  • Charge / discharge

    55A

    high-voltage battery current

  • On-grid and off-grid

    10

    units in parallel

  • Rated AC

    25kW

    top model in this series

Three-phase HV hybrid inverter

Three-phase hybrid power, 15–25kW.

The Deye SUN-15/20/25K-SG02HP3-EU-DM3 series couples PV, a high-voltage battery, grid, backup loads and a diesel generator. Specify 15kW, 20kW or 25kW, or AC-couple it to an existing solar system.

Why this hybrid

  • High-voltage battery, 55A

    160–700V lithium pack, BMS self-adaptation, six charge/discharge windows. 55A charge/discharge on a single battery input.

  • Scale to 10 units

    Parallel up to 10 inverters on-grid and off-grid, with multiple batteries in parallel, to grow capacity without a platform change.

  • 100% unbalanced output

    Each phase can carry full rated power independently, so mixed three-phase loads stay stable without oversizing.

  • AC couple and generator

    Retrofit storage onto an existing PV plant. Dedicated GEN, LOAD and GRID ports store diesel-generator energy for weak-grid and backup sites.
PV array
Hybrid PCS
HV battery
  • 97.6% max. efficiency
  • 55 A charge / discharge
  • 160–700 V battery window
  • 6 tariff periods

Efficient

High-voltage architecture. Higher efficiency.

Pair a lithium battery from 160V to 700V at up to 55A. Max. efficiency 97.6%, Euro efficiency 97.0%, and MPPT efficiency above 99% keep more of every kilowatt-hour for the load or the tariff window.

Existing PV
AC couple
Hybrid inverter
GRID
LOAD
GEN
Battery

Flexible

Retrofit storage. Add a generator. Stay online.

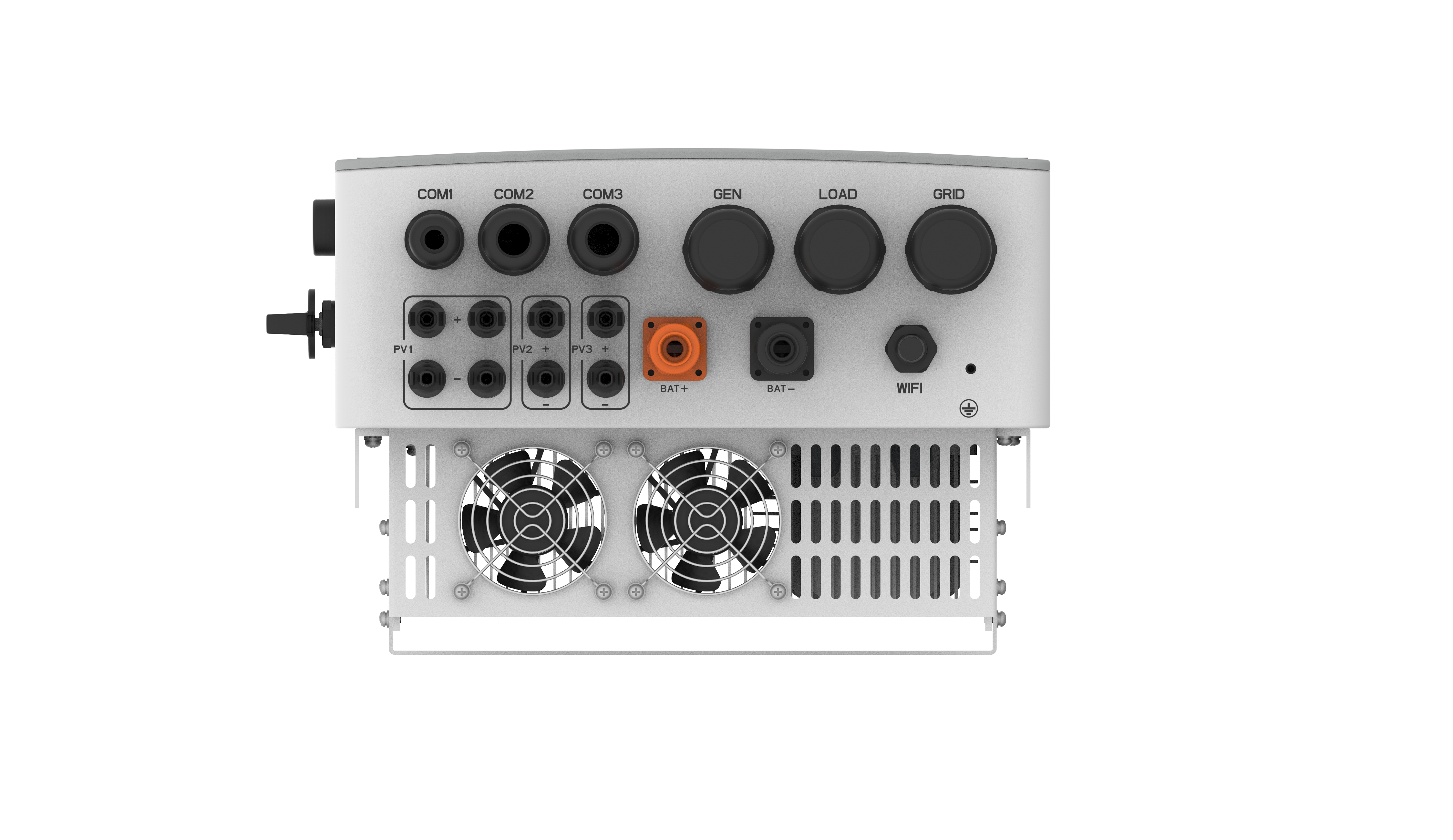

AC-couple to an existing PV inverter without ripping out the original array. GRID, LOAD and GEN ports on the underside support backup loads and diesel charging. Off-grid peak power is 1.5× rated for 10 seconds. Grid-to-load passthrough is 60A continuous.

Specified for European C&I sites

3 MPPTs, one HV battery input, 10-unit parallel, IP65 outdoor cabinet.

  • 3 MPPTs, 2+1+1 strings

    Three trackers, 2+1+1 strings. Operating 36+20+20A, ISC 54+30+30A. 1000V DC, MPPT 150–850V, start-up 180V.

  • European grid codes

    EN 50549, VDE-AR-N 4105, G99, CEI 0-21, NRS 097 and more. Type II surge on DC and AC. Optional AFCI.

  • Remote operations

    WIFI, RS485 and CAN on the inverter. GPRS, WiFi, Bluetooth or 4G monitoring for fleet visibility.

  • IP65 outdoor cabinet

    IP65, −40 to +60°C with derating above 45°C, 3000m altitude, intelligent air cooling, ≤45dB.
Specifications

Technical data

Models SUN-15/20/25K-SG02HP3-EU-DM3
Rated AC power 15 / 20 / 25kW
Max. AC apparent 16.5 / 22 / 27.5kVA
Rated AC current 22.8/21.8 · 30.4/29.0 · 37.9/36.3 A
Max. AC current 25/24 · 33.4/31.9 · 41.7/39.9 A
Max. / Euro / MPPT efficiency 97.6% / 97.0% / >99%
Battery type Lithium-ion, BMS self-adaptation
Battery voltage / current 160–700V · max. 55A charge/discharge · 1 input
Max. PV voltage / MPPT range 1000V · 150–850V · start-up 180V · rated 600V
MPP trackers 3 trackers · 2+1+1 strings · 36+20+20A / 54+30+30A ISC
Max. PV access / input 30 / 40 / 50kW access · 24 / 32 / 40kW input
Grid 220/380V, 230/400V · 3L+N+PE · 50/60Hz
Unbalanced output 100% per phase
Passthrough / peak 60A grid-to-load · 1.5× rated off-grid for 10s
Parallel Max. 10 pcs on-grid and off-grid
Protection IP65 · Type II DC/AC surge · optional AFCI
Environment −40°C to +60°C (>45°C derating) · humidity 0–100% · 3000m · ≤45dB
Cooling Intelligent air cooling
Interface LCD+LED · WIFI / RS485 / CAN · GPRS/WiFi/Bluetooth/4G
Warranty 5 years / up to 10 years depending on country

Which models are in this series?

Three SKUs: SUN-15K, 20K and 25K-SG02HP3-EU-DM3. All have 3 MPPTs (2+1+1 strings), 160–700V battery, 55A charge/discharge, and three-phase hybrid architecture.

Can I add storage to an existing PV plant?

Yes. AC coupling lets you retrofit this hybrid inverter onto an existing solar system without replacing the original grid-tied inverter.

Does it support a diesel generator?

Yes. A dedicated GEN port can store generator energy in the battery, which is useful for weak-grid, off-grid and backup sites.

How does this compare with the 25–30kW SG02HP3-EU-AM3 series?

SUN-15/20/25K-SG02HP3-EU-DM3 is the 15–25kW class: 97.6% max. efficiency, 55A / 160–700V, one battery input, 3 MPPTs (2+1+1), and 60A passthrough. AM3 is the compact 25–30kW class with 75A, 2+2+2 strings, and 80A passthrough.

What warranty is included?

5 years, up to 10 years depending on installation country. Refer to the Deye warranty policy for the site country.

Specify this inverter for the next three-phase site

15–25kW high-voltage hybrid, 3 MPPTs, 10-unit parallel, AC coupling and generator support.
