Deye SUN-100/125K-SG02HP3-EU-GM10 | 100–125kW Three-Phase HV Hybrid

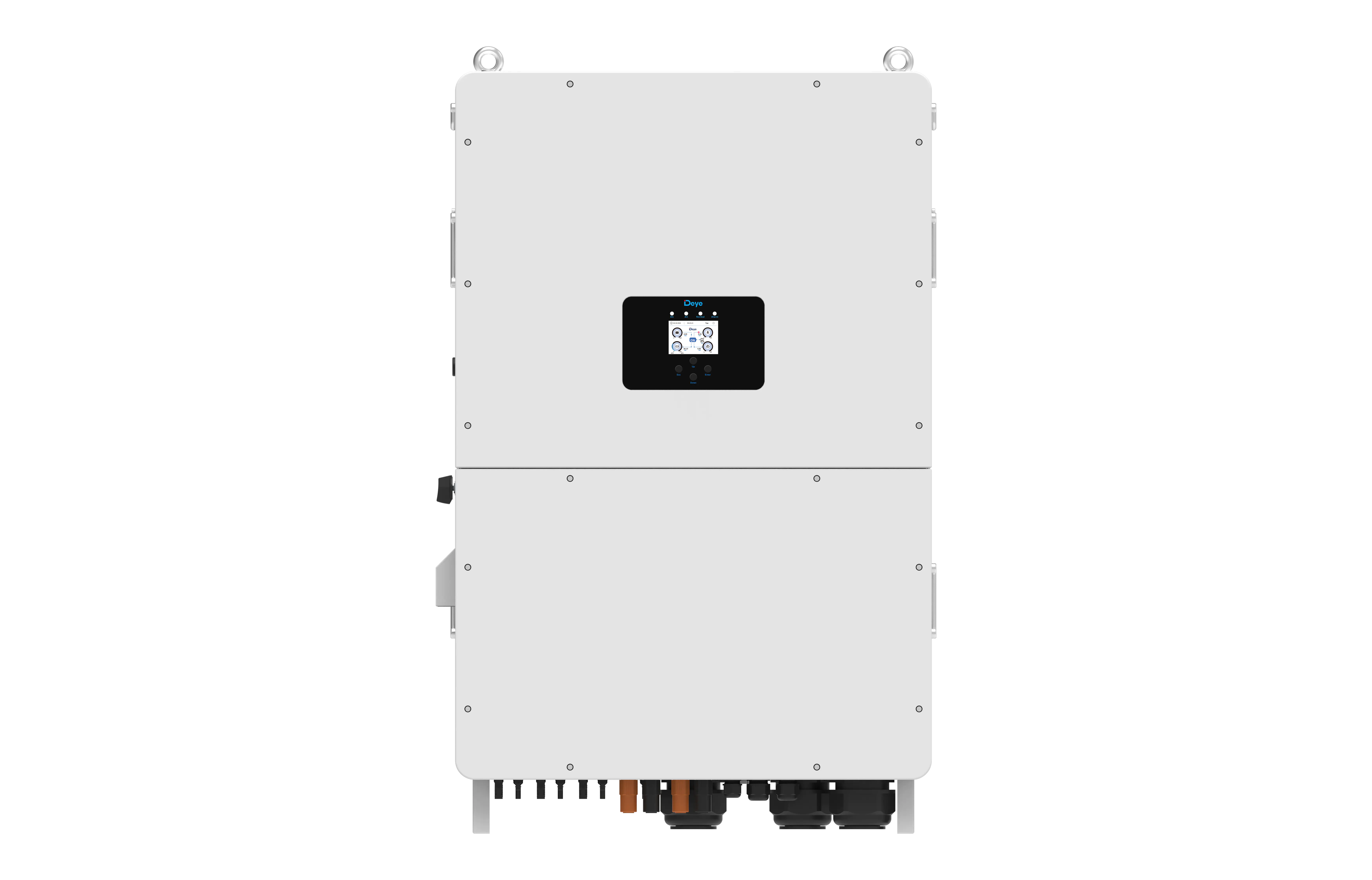

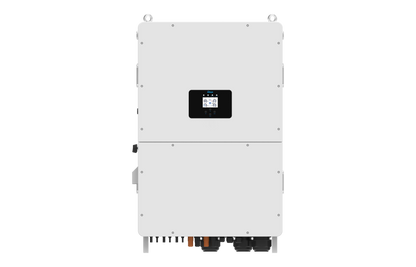

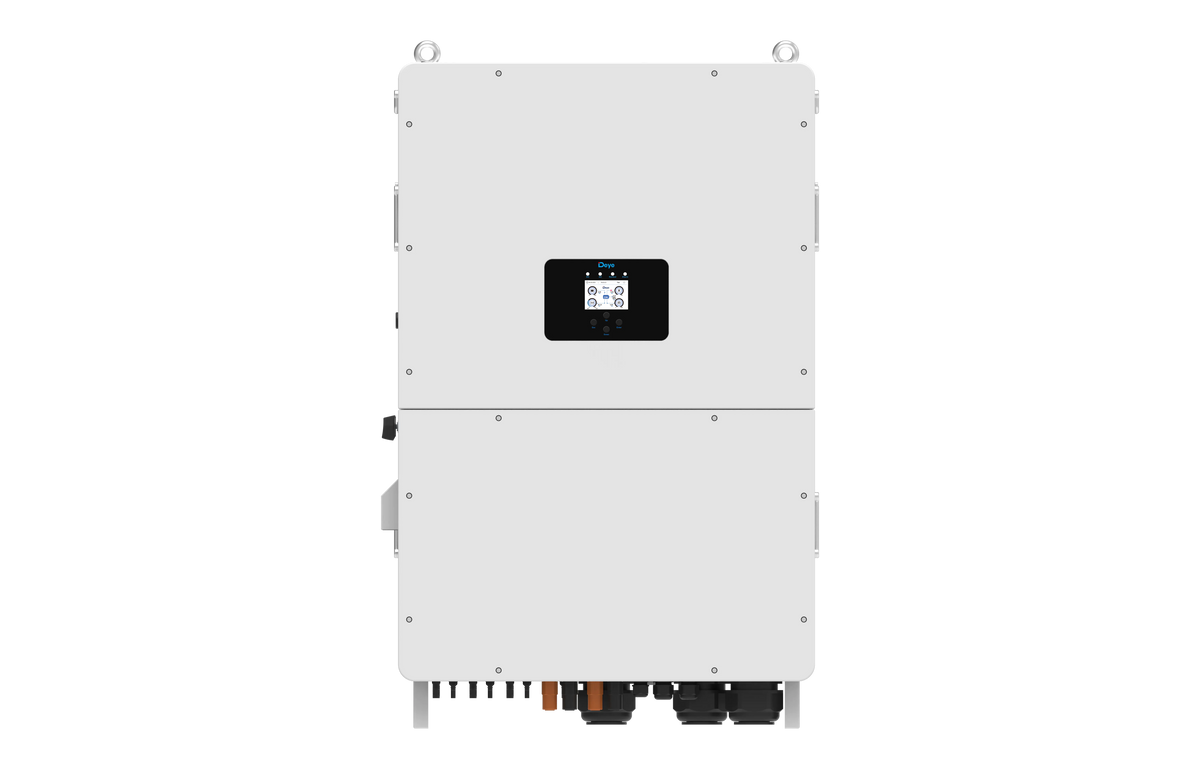

  • Front view with LCD and keypad

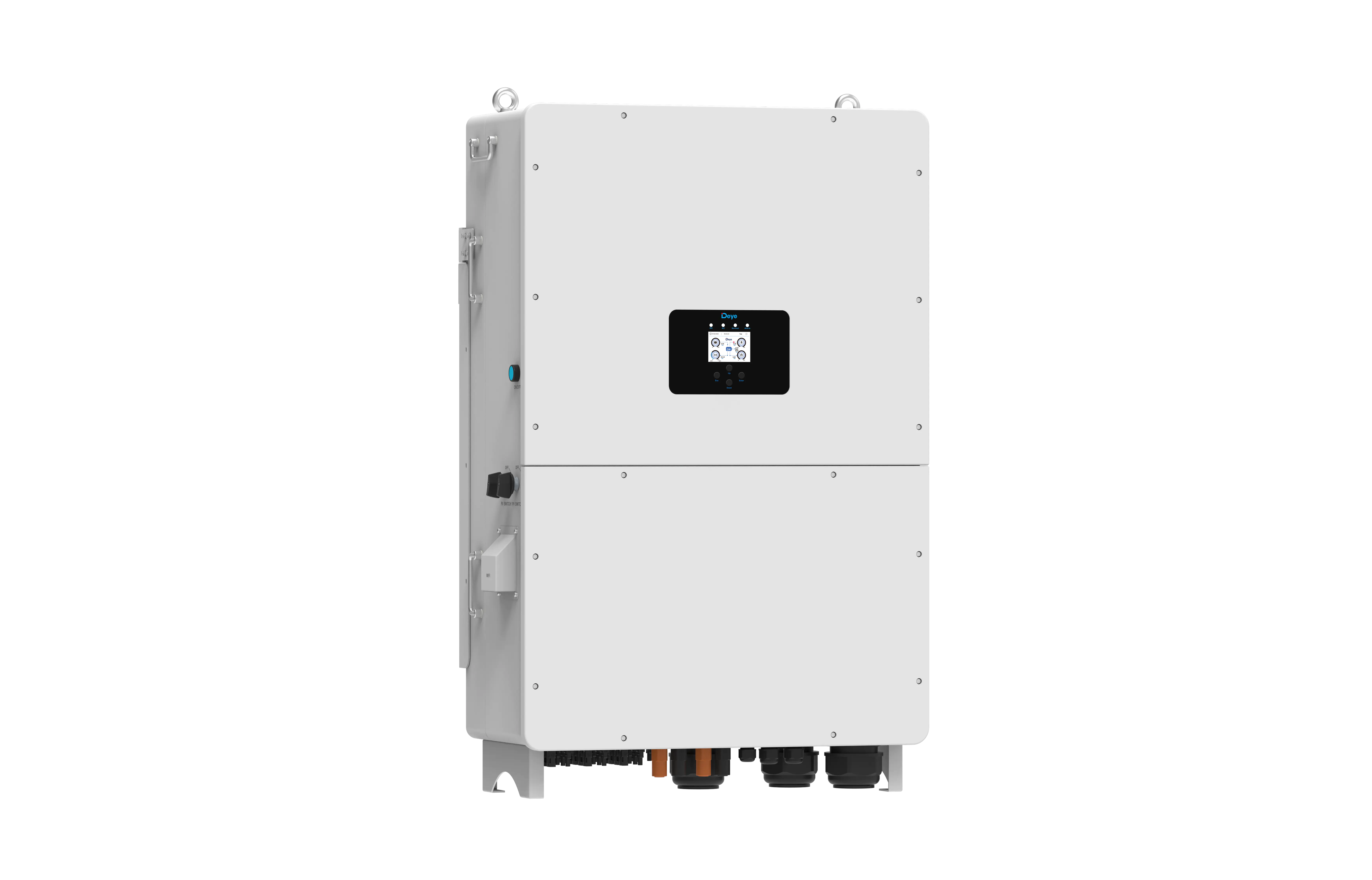

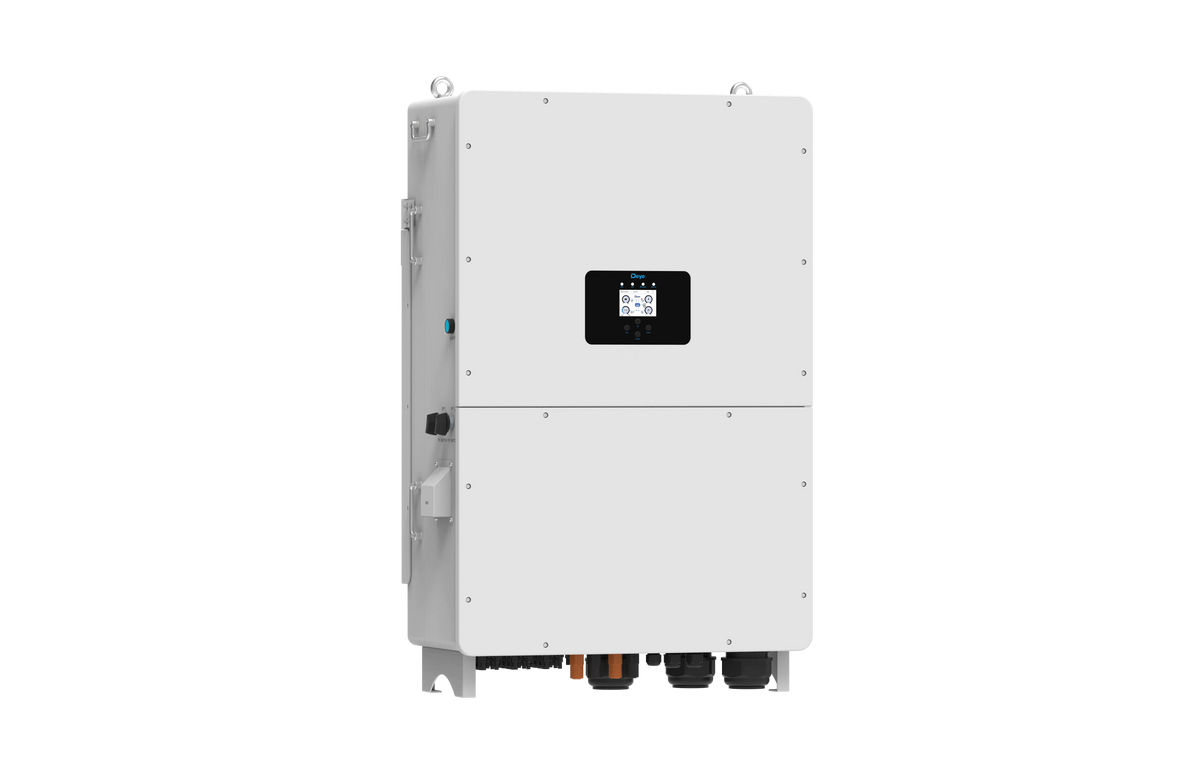

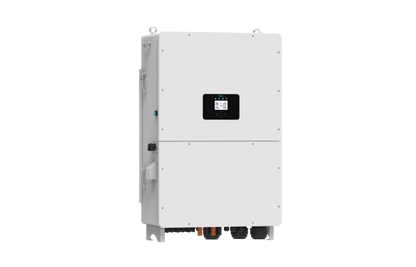

  • Angle view, IP65 wall-mount cabinet

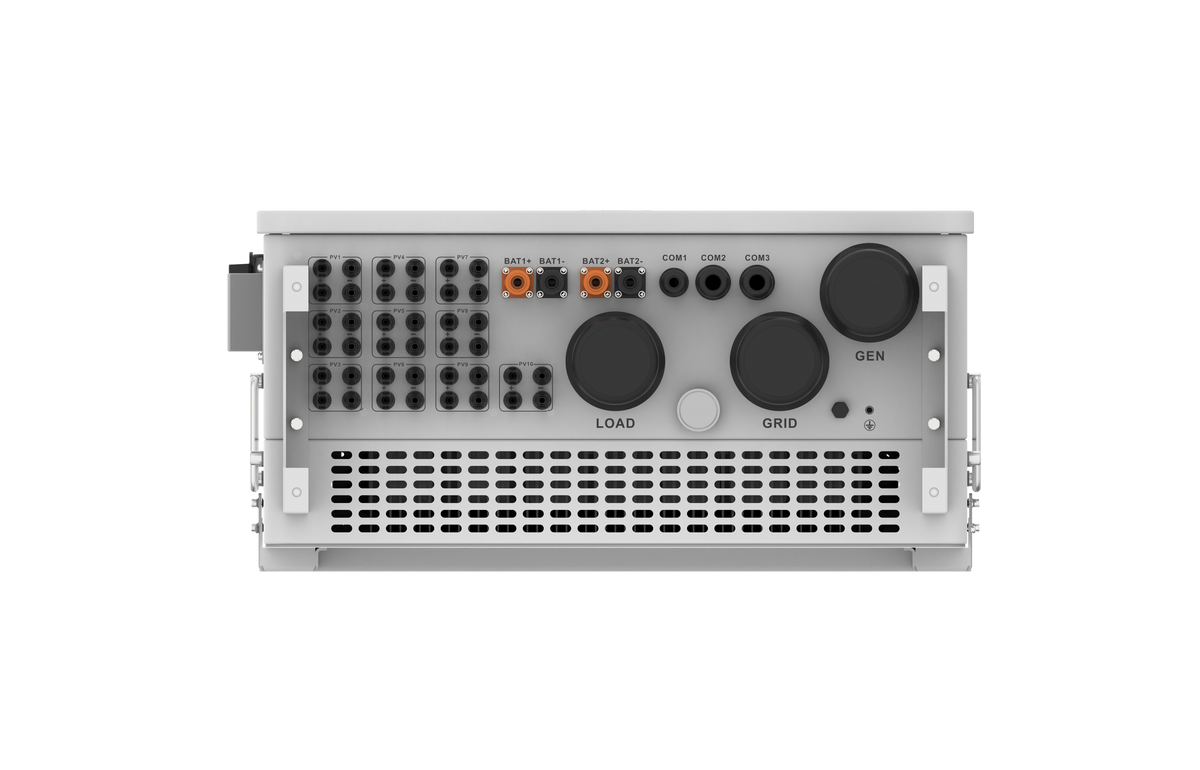

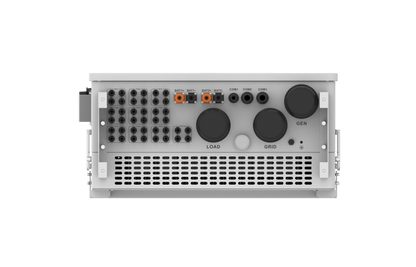

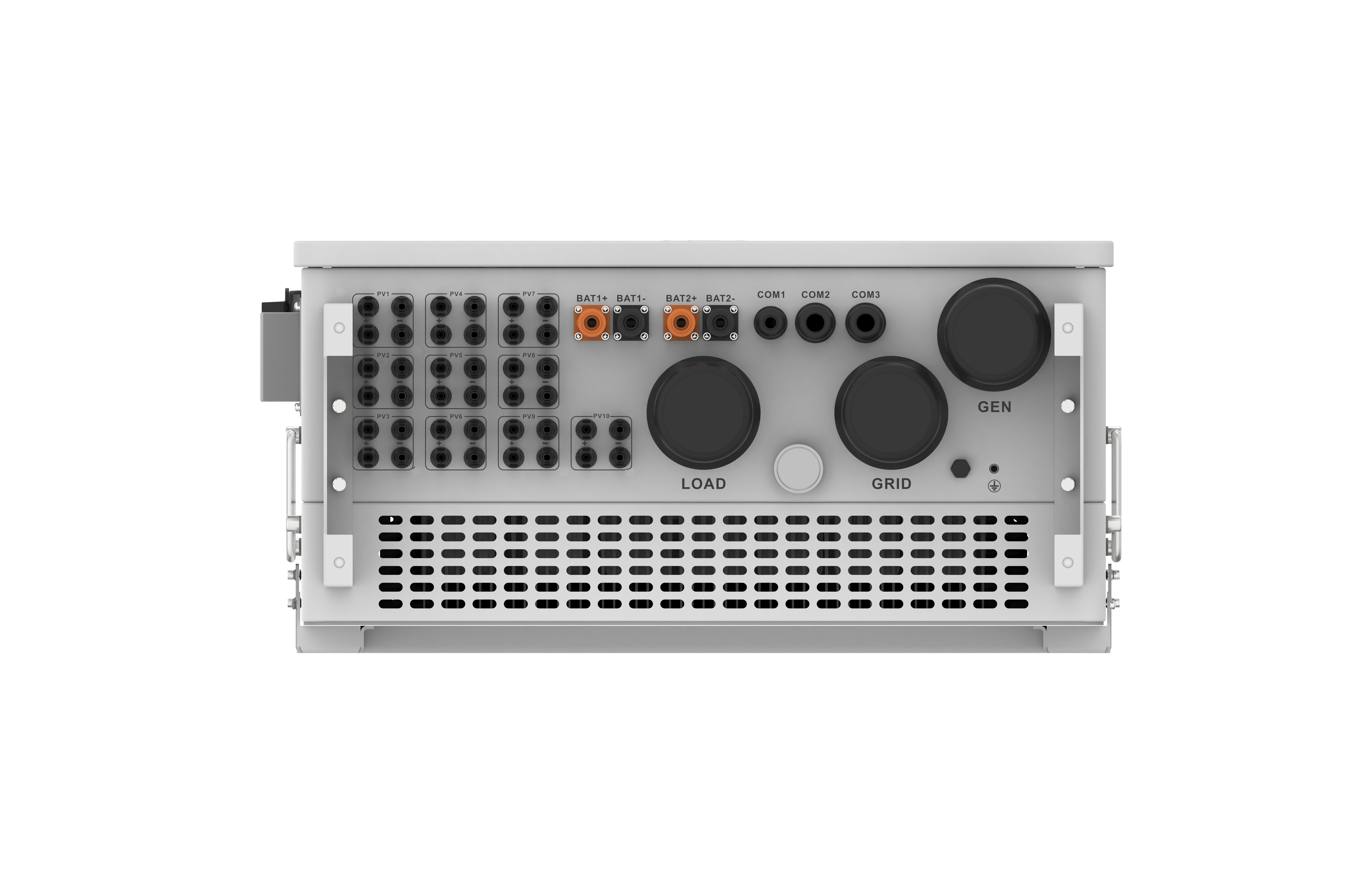

  • Bottom ports PV1–PV10, BAT1/BAT2, LOAD, GEN, GRID, COM

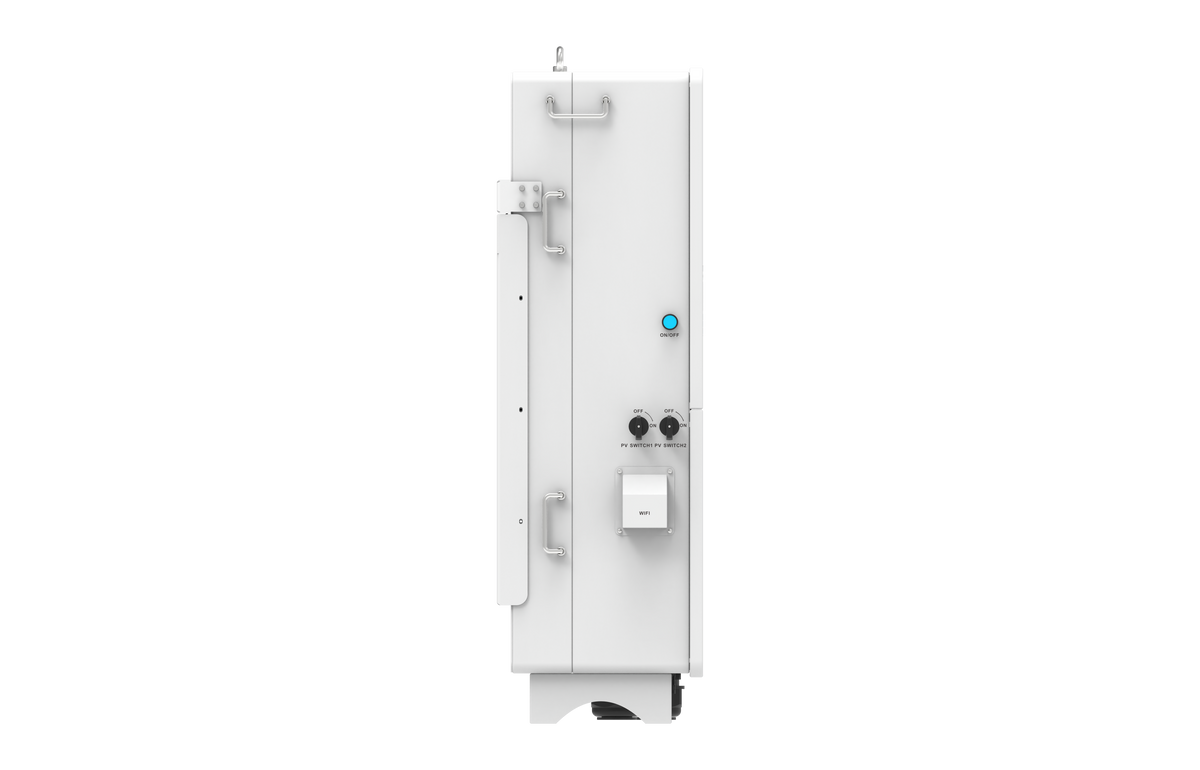

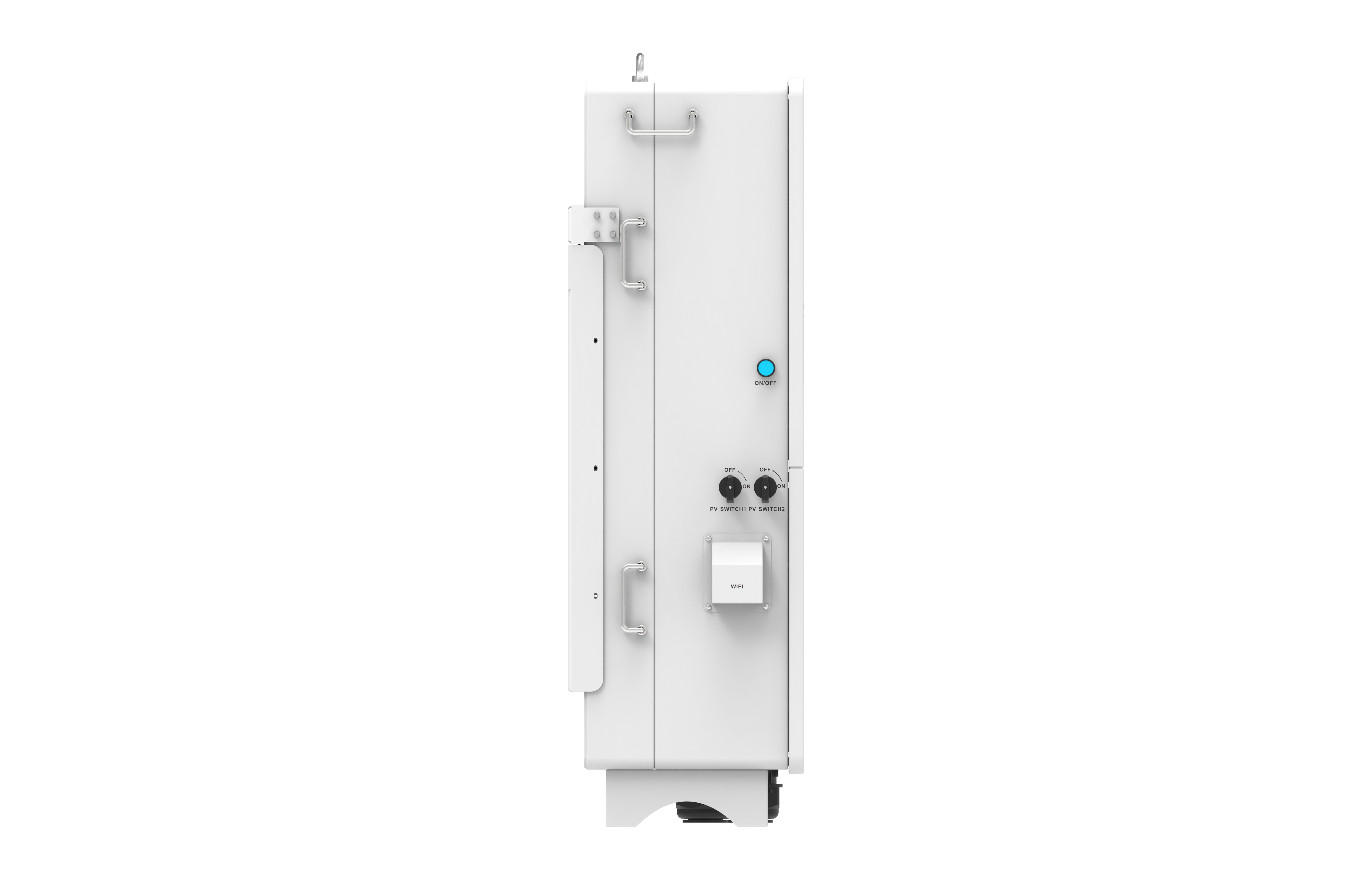

  • Side isolators, dual PV switches, ON/OFF, WiFi

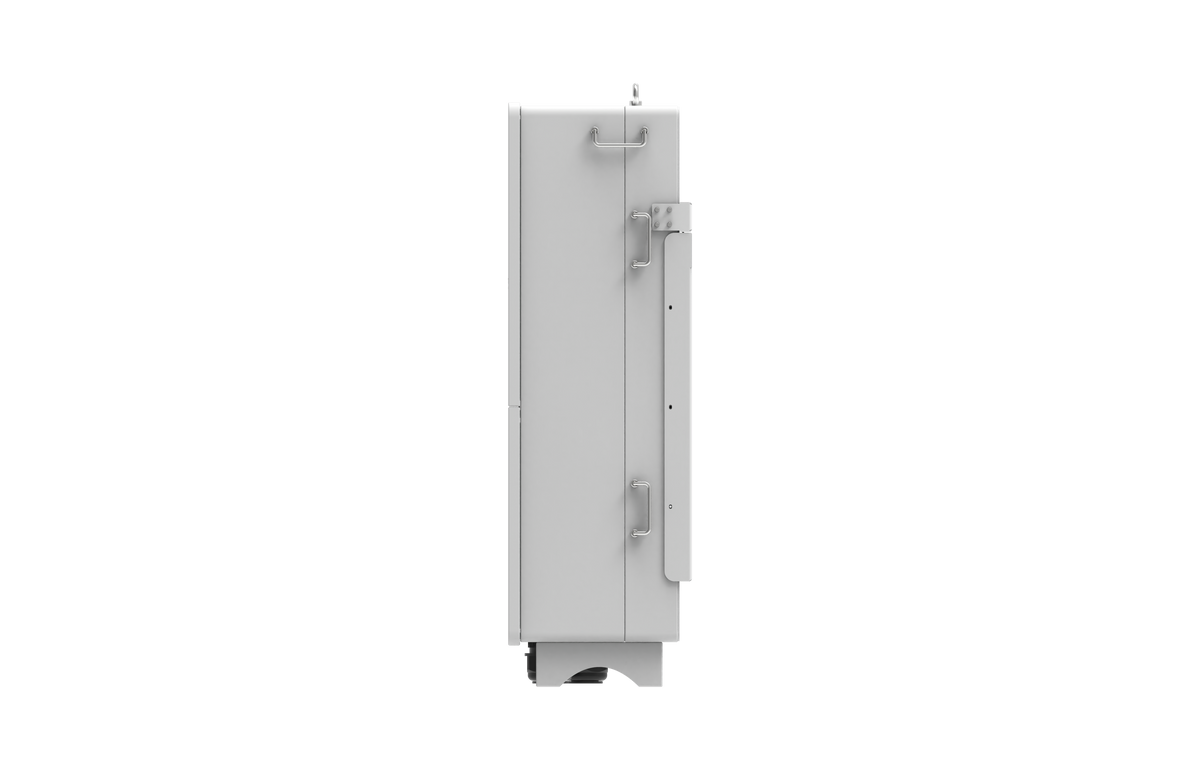

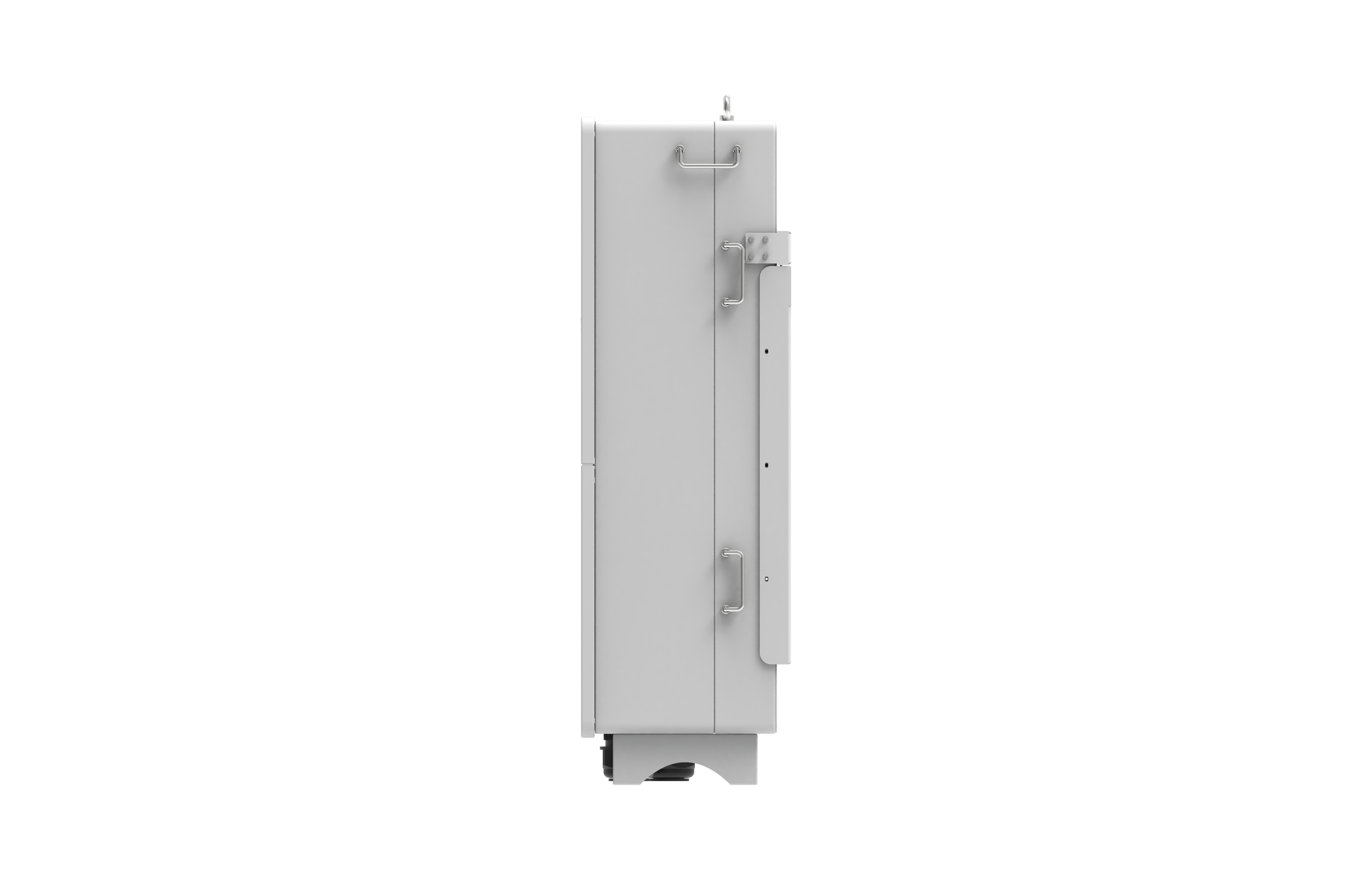

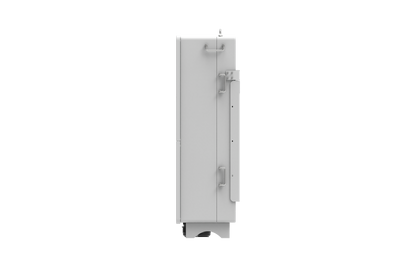

  • Wall-mount side, lift handles and bracket

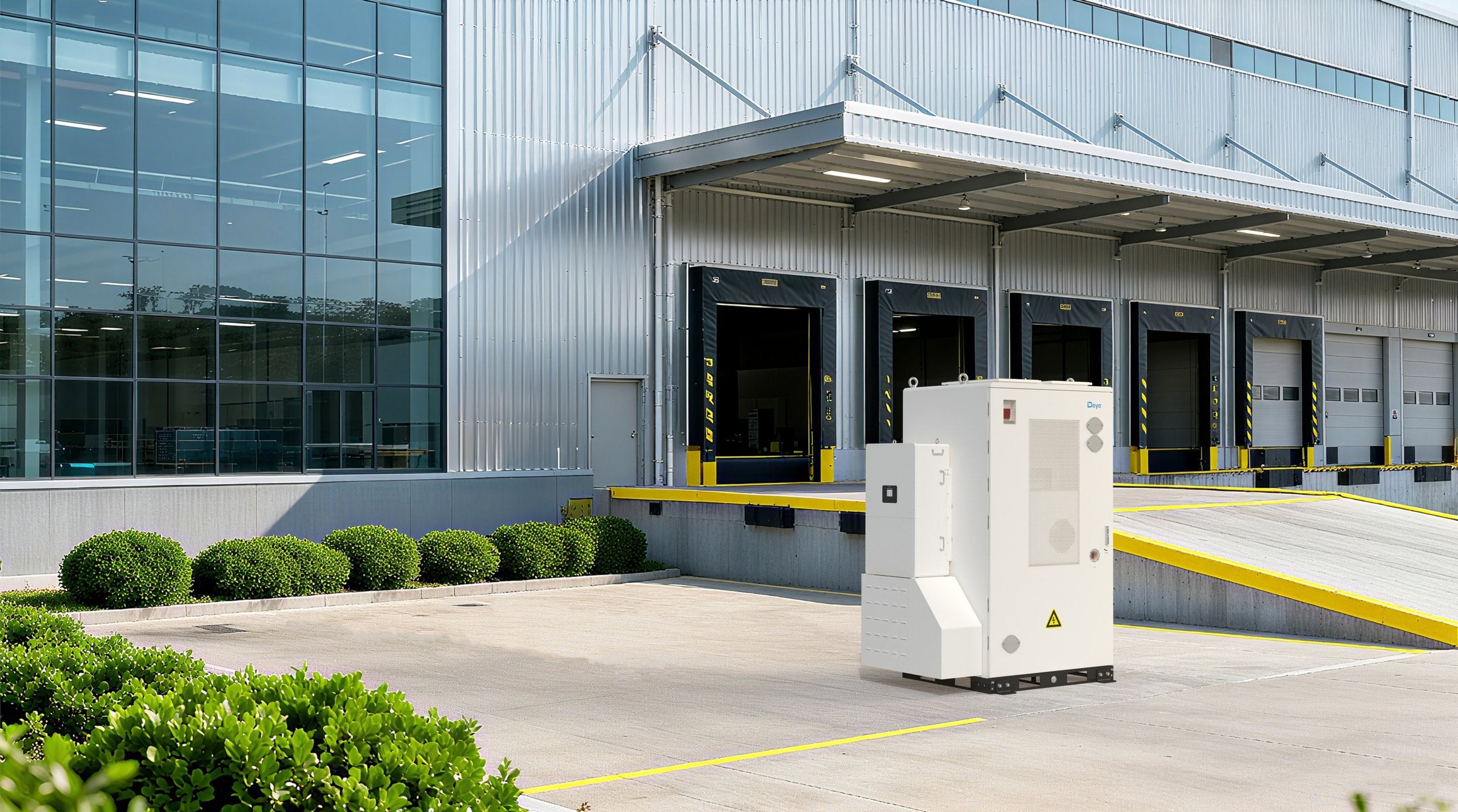

  • On-site wall-mount with high-voltage battery cabinets
Capacity
₦0.00
₦0.00
Tax included.

Three-phase high-voltage hybrid inverter for commercial and industrial solar-plus-storage. 100–125 kW, ten MPPTs, dual 100 A battery ports, up to 10 units in parallel (1.25 MW), and 200% PV oversizing.

Key specifications

Series

SUN-100/125K-SG02HP3-EU-GM10

Rated power

100 / 125 kW three-phase

Max. efficiency

98.7% (Euro 98.1%, MPPT >99%)

Battery

Lithium-ion, 160–1000 V, 100 A + 100 A (200 A), 2 inputs

MPPT

10 trackers, 2 strings each (2+2+2+2+2+2+2+2+2+2)

Parallel

Up to 10 units on-grid and off-grid (1.25 MW)

Ingress protection

IP65 outdoor cabinet

Warranty

5 years, up to 10 years by country

Battery and backup

High-voltage lithium battery range 160–1000 V with two independent 100 A ports (200 A combined). BMS self-adaptation and six programmable charge/discharge windows support peak-shaving, time-of-use shifting, and AI-driven tariff windows. Compatible with Deye GE-F240/256, BOS-B Pro-A3, GB-W, and BOS-A. Off-grid peak power is 1.5× rated for 10 seconds. Diesel-generator energy can be stored in the battery.

PV and grid

Max. PV input voltage 1000 V, MPPT range 150–850 V, start-up 180 V, rated 650 V. Ten MPPTs with two strings per tracker and 42 A operating current / 63 A ISC per tracker. 200% PV access and 160% DC input. Rated AC 220/380 V or 230/400 V, 3L+N+PE. AC coupling for existing PV plants, 1.5× off-grid peak for 10 seconds, and 250 A continuous grid-to-load passthrough.

Protection and monitoring

Integrated DC reverse polarity, AC overcurrent/overvoltage/short-circuit, thermal, anti-islanding, insulation monitoring, residual current detection, DC switch, and Type II surge on DC and AC. Optional AFCI. Communications: RS485, RS232, CAN, plus GPRS/WiFi/Bluetooth/4G/LAN monitoring. Operating range −40 to +60°C (derating above 45°C), up to 3000 m.

Deye SUN-100/125K-SG02HP3-EU-GM10 | 100–125kW Three-Phase HV Hybrid

₦0.00

  • Up to

    98.7%

    max. conversion efficiency

  • Charge / discharge

    200A

    dual 100 A high-voltage battery ports

  • On-grid and off-grid

    10

    units in parallel · 1.25 MW

  • Rated output

    125kW

    top model in the series

C&I hybrid inverter

MW-class high-voltage hybrid power for C&I plants.

The Deye SUN-SG02HP3-EU-GM10 series couples PV, dual 100 A high-voltage battery ports, grid, backup loads, and a diesel generator in one IP65 cabinet. Specify 100 kW or 125 kW for new C&I plants, or AC-couple it to an existing solar system and scale to 1.25 MW.

Why installers specify this series

98.7% conversion efficiency in a 162 kg IP65 cabinet — built for European C&I grid codes, from peak shaving to MW-class backup.

  • Dual battery ports, 200 A

    160–1000 V lithium packs, two 100 A inputs, BMS self-adaptation, and six charge/discharge windows for time-of-use and peak-shaving control.

  • Scale to 1.25 MW

    Parallel up to 10 inverters on-grid and off-grid, with multiple battery clusters in parallel, to grow a plant to 1.25 MW without a platform change.

  • 10 MPPTs, 200% PV access

    Twenty strings on ten independent trackers, 200% PV oversizing and 160% DC input, so mixed roofs still harvest at rated AC power.

  • AC couple, GEN, smart load

    Retrofit storage onto existing PV with AC coupling. GEN port stores diesel energy or runs Smart Load for EV chargers and boilers.
PV array
Hybrid PCS
HV battery
  • 98.7% max. efficiency
  • 200 A charge / discharge
  • 160–1000 V battery window
  • 6 tariff periods

Efficient

High-voltage architecture. Higher efficiency.

Pair lithium batteries from 160 V to 1000 V across two 100 A ports (200 A combined). Max. efficiency 98.7%, Euro efficiency 98.1%, and MPPT efficiency above 99% keep more of every kilowatt-hour for the load or the tariff window.

Existing PV
AC couple
Hybrid inverter
GRID
LOAD
GEN
Battery

Flexible

Retrofit storage. Add a generator. Stay online.

AC-couple to an existing PV inverter without ripping out the original array. GRID, LOAD, and GEN ports on the underside support backup loads, diesel charging, and Smart Load for EV chargers or boilers. Off-grid peak power is 1.5× rated for 10 seconds. Grid-to-load passthrough is 250 A continuous.

Specified for European C&I sites

Safety, EMC, and grid standards in one package, with the ports installers actually use on site.

  • 10 MPPTs, twenty strings

    Ten trackers, two strings each. 42 A operating current and 63 A ISC per tracker for mixed roof orientations.

  • European grid codes

    EN 50549, VDE-AR-N 4105, G99, CEI 0-21, NRS 097 and more. Type II surge on DC and AC. Optional AFCI.

  • Remote operations

    RS485, RS232, and CAN on the inverter. GPRS, WiFi, Bluetooth, 4G, or LAN monitoring for fleet visibility.

  • Outdoor C&I cabinet

    IP65, −40 to +60°C with derating above 45°C, 3000 m altitude, smart air cooling, about 162 kg.
Specifications

Technical data

Models SUN-100K / 125K-SG02HP3-EU-GM10
Rated AC power 100 / 125 kW
Max. / Euro / MPPT efficiency 98.7% / 98.1% / >99%
Battery type Lithium-ion, BMS self-adaptation
Battery voltage / current 160–1000 V · 100 A + 100 A (200 A) · 2 inputs
Max. PV voltage / MPPT range 1000 V · 150–850 V · start-up 180 V · rated 650 V
MPP trackers 10 trackers · 2+2+2+2+2+2+2+2+2+2 strings · 42 A / 63 A ISC per tracker
Max. PV access / input 200 / 250 kW access · 160 / 200 kW input
Grid 220/380 V, 230/400 V · 3L+N+PE · 50/60 Hz
Max. AC apparent power 110 / 135 kVA
Off-grid peak 1.5× rated power for 10 s
AC passthrough Max. 250 A grid to load
Parallel operation Up to 10 units on-grid and off-grid (1.25 MW)
Charge windows 6 programmable charge/discharge periods
Environment IP65 · −40 to +60°C · ≤65 dB · 3000 m
Size / weight 734 × 1091 × 344 mm · approx. 161.7 kg
Communications RS485, RS232, CAN · GPRS / WiFi / Bluetooth / 4G / LAN
Grid codes IEC 61727, IEC 62116, CEI 0-21, EN 50549, G99, VDE-AR-N 4105, NRS 097
Warranty 5 years / up to 10 years depending on country

Which models are in this series?

GM10 covers 100 kW and 125 kW, both with 10 MPPTs (two strings per tracker). They share the same 160–1000 V battery platform, dual 100 A inputs, and three-phase hybrid architecture. A related 100 kW GM8 SKU uses 8 MPPTs.

Can I add storage to an existing PV plant?

Yes. AC coupling lets you retrofit this hybrid inverter onto an existing solar system without replacing the original grid-tied inverter.

Does it support a diesel generator?

Yes. A dedicated GEN port can store generator energy in the battery, with intelligent auto start/stop. The same port can run Smart Load mode to send surplus PV to EV chargers, boilers, and other controllable loads.

How does this compare with the 60–80 kW EM6 series?

SG02HP3-EU-GM10 is the 100–125 kW class: 98.7% max. efficiency, 200 A / 160–1000 V on two battery inputs, 10 MPPTs, about 162 kg, and 250 A passthrough, scaling to 1.25 MW in parallel. The SG02HP3-EU-EM6 series covers 60–80 kW with 160 A, 6 MPPTs, and 200 A passthrough.

What warranty is included?

Standard warranty is 5 years and can extend to 10 years depending on the installation country. Refer to the Deye warranty policy for the destination market.

Specify this inverter for your next C&I project

High-voltage hybrid power, 10-unit parallel to 1.25 MW, AC coupling, generator and Smart Load support — ready for European commercial sites.
