Deye Solar R32 Swimming Pool Heat Pump | Hybrid ACDC

From ₦2,219,700.00

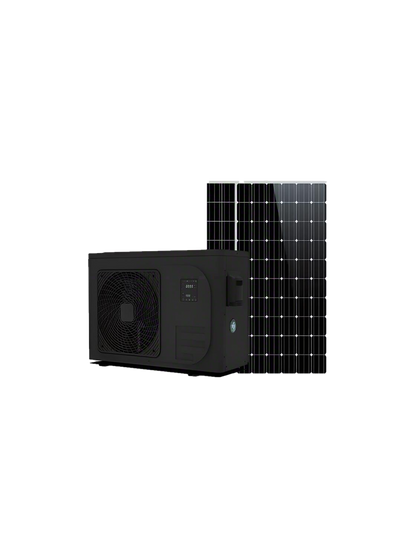

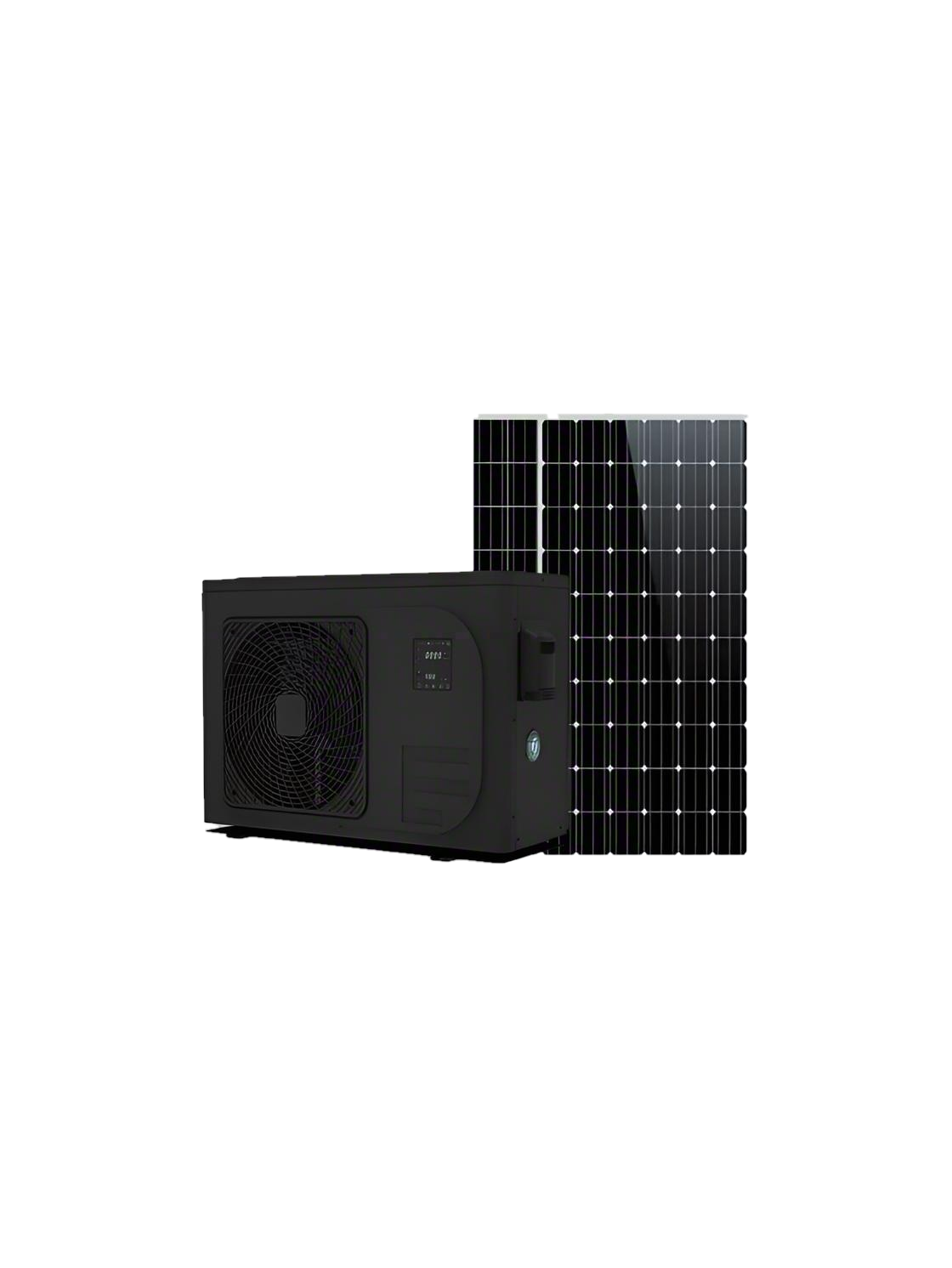

  • Deye R32 swimming pool heat pump Hybrid ACDC

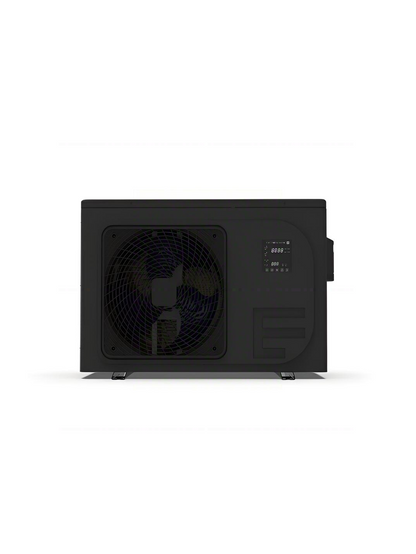

  • Deye R32 pool heat pump angle 2

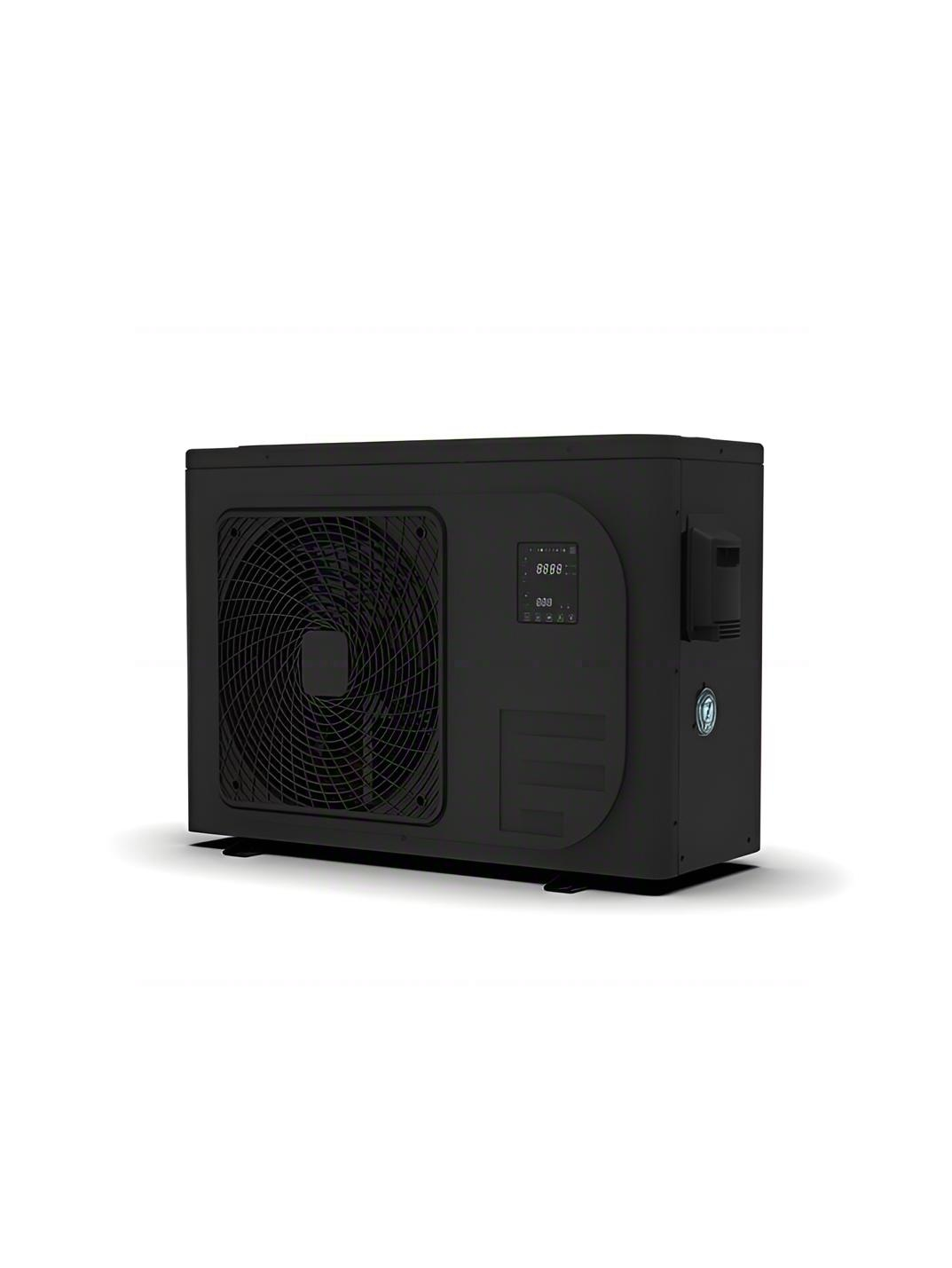

  • Deye R32 pool heat pump angle 3

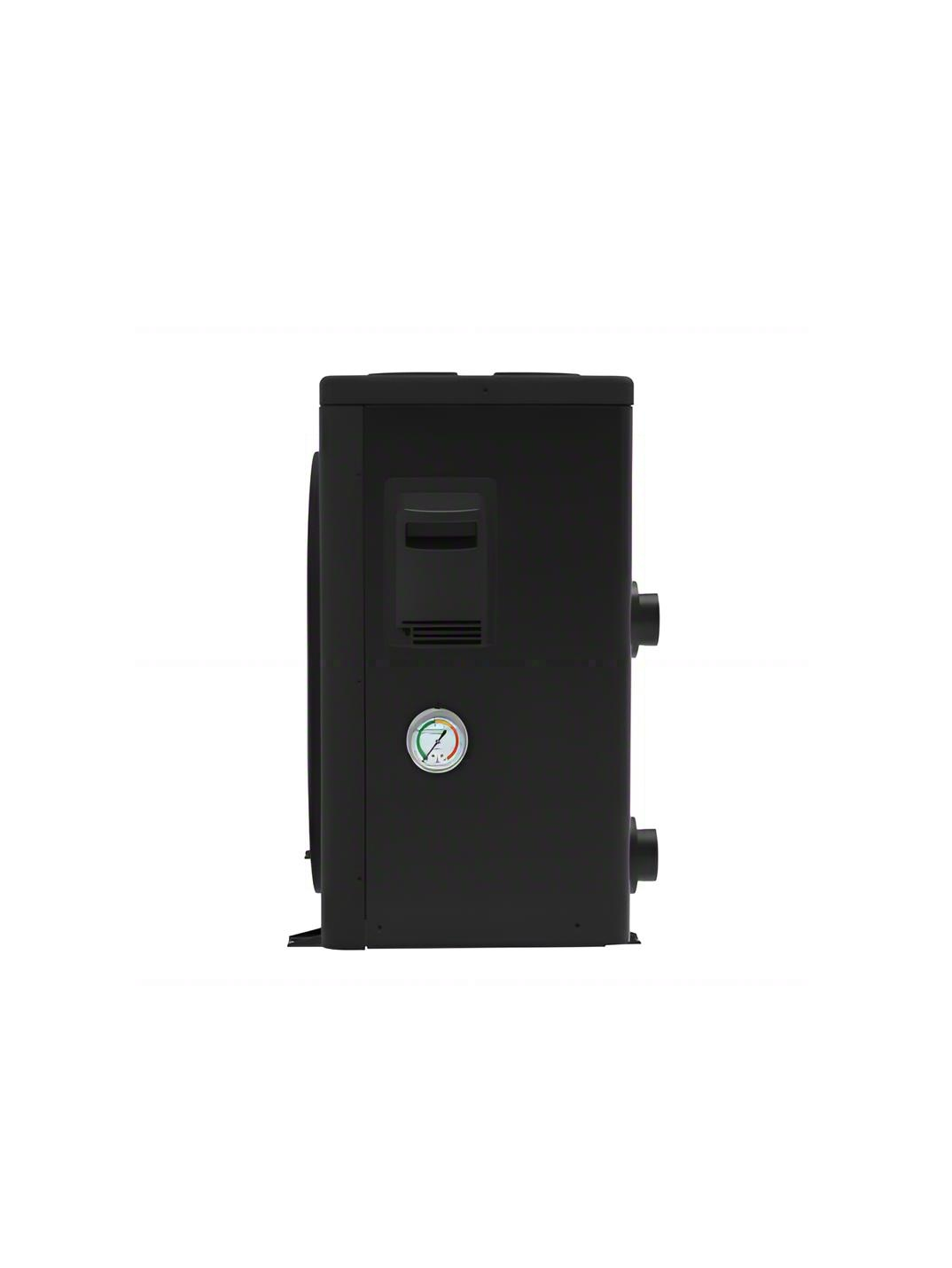

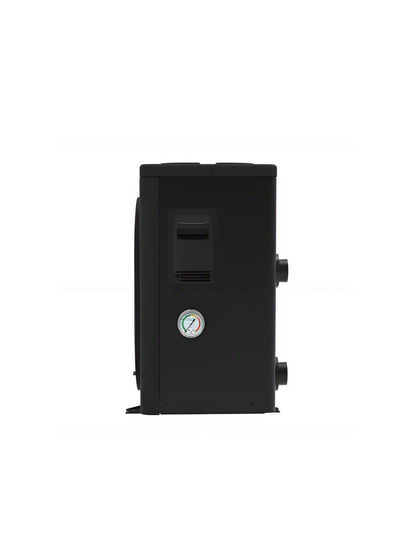

  • Deye R32 pool heat pump angle 4
Capacity
₦2,219,700.00
₦2,219,700.00
Tax included.
Low stock! Only 10 left

Solar-first pool heating: no batteries required. Connect compatible PV, or keep the unit on 208–240V AC when the sun is down. R32 Hybrid ACDC, titanium water-side heat exchanger, IPX4. Three SKUs: DSPD1-ACDC-11R2 / 15R2 / 17R2.

Key specifications

Series

Deye Solar R32 Swimming Pool Heat Pump · Hybrid ACDC

This listing

11kW · 15kW · 17kW (DSPD1-ACDC-11R2 / 15R2 / 17R2)

Power AC

208–240 V / 50–60 Hz · Ph-V-Hz

PV (Voc / Isc)

80–380 V · ≤14 A

Heating 27 / 24.3 °C

2.1–10.2 / 2.3–13.6 / 2.4–15.5 kW · COP 15.5–6.5 / 15.8–6.5 / 16.0–6.0

Heating 15 / 12 °C

1.6–7.3 / 1.8–9.5 / 1.9–11.7 kW · COP 7.7–4.8 / 7.5–4.8 / 7.6–4.8

Water / protection

Titanium HEX · 3.2 / 4.0 / 4.6 m³/h · IPX4 · Class I

Cabinet

995 × 432 × 633 mm · packing 1063 × 475 × 695 mm

Pool heating, not house heating

Built for swimming-pool and spa water. It is not the Deye R290 air-to-water heat pump for radiators, underfloor or DHW.

Inverter capacity at air 27°C / water 24.3°C: 2.1–10.2 / 2.3–13.6 / 2.4–15.5kW for 11R2 / 15R2 / 17R2. At 15 / 12°C: 1.6–7.3 / 1.8–9.5 / 1.9–11.7kW. Titanium water-side heat exchanger, suggested 400–500W PV 3–4 / 4–5 / 5–6 pcs.

Hybrid ACDC — solar first, grid when needed

The Solar Heat Pump Pool Heater requires no batteries. Simply connect solar panels. Hybrid AC/DC also accepts 208–240V grid AC so heating can continue when PV is weak, cloudy or after sunset.

PV window: Voc 80–380V, Isc ≤14A, same on all three SKUs.

Install, flow and protection

Water flow 3.2 / 4.0 / 4.6 m³/h. Max water pressure drop 5.5 / 8.0 / 10.0 kPa. Cabinet 995 × 432 × 633 mm, packing 1063 × 475 × 695 mm. IPX4. Electric shock prevention Class I.

Price is for the equipment only. A qualified pool heat-pump installer must size the pool, PV strings, AC supply, water flow and chemistry. Factory warranty does not cover faults from incorrect install.

Deye Solar R32 Swimming Pool Heat Pump | Hybrid ACDC

₦2,219,700.00

  • Refrigerant

    R32

    pool heat pump series

  • Heat exchanger

    Ti

    titanium water side

  • Enclosure

    IPX4

    Class I shock prevention

  • PV Voc

    380V

    80–380 V · Isc ≤14 A

Solar R32 swimming pool heat pump

Heat the pool with panels. No batteries required.

Hybrid AC/DC pool heating: use sunshine first, keep 208–240 V AC as backup, and hold a comfortable water temperature with less grid energy and lower running cost.

Why this pool heat pump

  • Solar first, no battery bank

    Connect compatible solar panels. The unit does not need a battery bank to heat the pool. Use grid AC only when you want heating after sunset or in low sun.

  • Hybrid AC/DC

    DC from PV (Voc 80–380 V, Isc ≤14 A) plus AC 208–240 V / 50–60 Hz. The heat pump uses both sources to keep energy use down while holding water temperature.

  • Made for pool water

    Titanium water-side heat exchanger, IPX4 and Class I. Sized for pools and spas — not household space heating or DHW cylinders.

  • Inverter heating, high COP

    At 27 / 24.3 °C, COP 15.5–6.5 / 15.8–6.5 / 16.0–6.0 across the three SKUs. Inverter capacity tracks pool load instead of running full-bore all day.

Specified for residential pools and spas

Pick 11kW (DSPD1-ACDC-11R2) for smaller pools, 15kW (DSPD1-ACDC-15R2) for everyday demand, 17kW (DSPD1-ACDC-17R2) for larger water volume and faster recovery.

  • Suggested PV (400–500 W)

    11R2: 3–4 pcs. 15R2: 4–5 pcs. 17R2: 5–6 pcs. Confirm string Voc, Isc and installer design before order.

  • Water circuit

    Flow 3.2 / 4.0 / 4.6 m³/h. Max pressure drop 5.5 / 8.0 / 10.0 kPa. Keep pool chemistry in the range your installer specifies for titanium exchangers.

  • In the box

    Selected outdoor pool heat pump, wired controller, installation and user manual. PV, plumbing, chemicals and labour are not included.

  • Installer-only commissioning

    Equipment price only. A licensed pool heat-pump or HVAC installer must place, plumb, wire and commission the unit. Incorrect install voids factory cover for resulting faults.
Specifications

Technical data

Models DSPD1-ACDC-11R2 / DSPD1-ACDC-15R2 / DSPD1-ACDC-17R2
Listing sizes 11kW / 15kW / 17kW
Power AC 208–240 V / 50–60 Hz · Ph-V-Hz
PV Voc 80–380 V
PV Isc ≤14 A
Suggested PV (400–500 W) 3–4 / 4–5 / 5–6 pcs
Heating capacity 27 / 24.3 °C 2.1–10.2 / 2.3–13.6 / 2.4–15.5 kW
COP 27 / 24.3 °C 15.5–6.5 / 15.8–6.5 / 16.0–6.0
Heating capacity 15 / 12 °C 1.6–7.3 / 1.8–9.5 / 1.9–11.7 kW
COP 15 / 12 °C 7.7–4.8 / 7.5–4.8 / 7.6–4.8
Water flow volume 3.2 / 4.0 / 4.6 m³/h
Water pressure drop (max) 5.5 / 8.0 / 10.0 kPa
Dimension W × H × D 995 × 432 × 633 mm
Packing W × H × D 1063 × 475 × 695 mm
Water-side heat exchanger Titanium
Waterproof level IPX4
Electric shock prevention Class I
Application Swimming pool and spa water · Hybrid AC/DC · no battery required

Which models are on this page?

Three Hybrid ACDC SKUs: DSPD1-ACDC-11R2 (11kW), DSPD1-ACDC-15R2 (15kW) and DSPD1-ACDC-17R2 (17kW). Max heating at 27 / 24.3°C is 10.2 / 13.6 / 15.5kW.

Is this for home heating or pool heating?

Swimming pool and spa water only. For household space heating, cooling and DHW, use the Deye R290 air-to-water heat pump instead.

Do I need batteries or the grid?

No battery bank is required. Connect compatible solar panels. Hybrid AC/DC can also take 208–240 V grid AC when you want heating without sun. Solar-only operation is the intended first path.

Why a solar pool heat pump instead of a standard heater?

Pool heating uses a lot of energy. A solar-assisted heat pump is efficient, cuts running cost, and holds a more consistent water temperature with less environmental impact than a resistive or fossil heater.

How do I choose 11kW, 15kW or 17kW?

Use pool volume, target temperature, climate, cover, wind, PV size and how fast you want recovery. Smaller residential pools usually take 11R2 (11kW); larger volume or faster recovery takes 15R2 or 17R2. A qualified installer must confirm.

Who should install it?

A qualified pool heat-pump or HVAC installer: plumbing, water flow, PV strings, AC supply, clearances and local rules. In the box: outdoor unit, wired controller, manuals.

Ready for solar-first pool heating

No batteries required. Connect PV, keep grid AC as backup, titanium HEX, IPX4.
