Deye Solar Air Conditioner | DWGA21-ACDCBLW-12KR2(EU) | 3.5kW Hybrid AC/DC R32

₦2,258,400.00

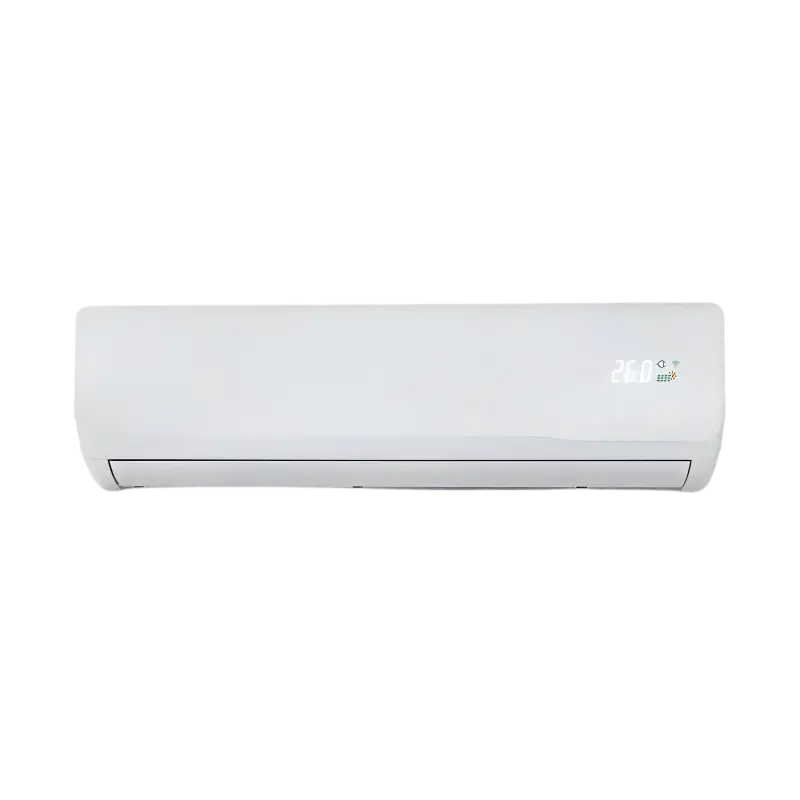

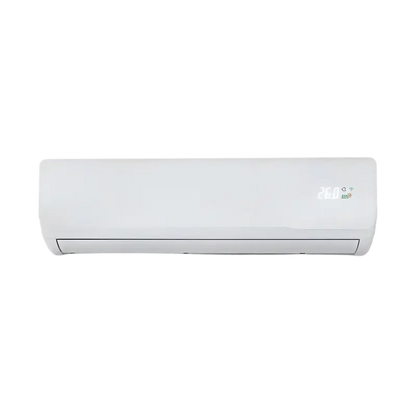

  • Deye 3.5kW R32 hybrid solar air conditioner indoor and outdoor units

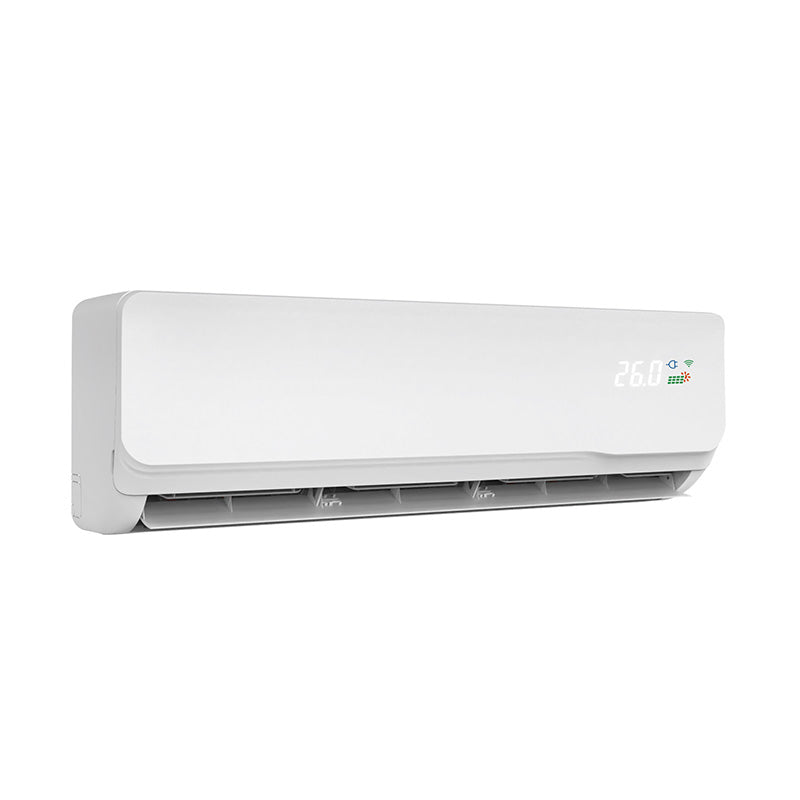

  • Deye DWGA21-ACDCBLW-12KR2(EU) angled indoor and outdoor view

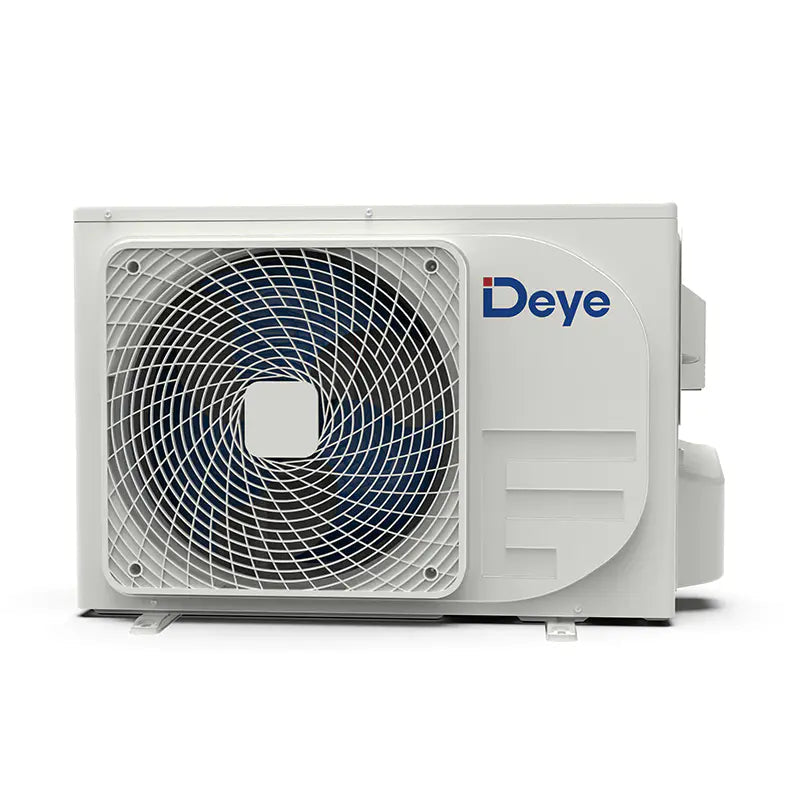

  • Deye 12000BTU hybrid AC/DC solar air conditioner

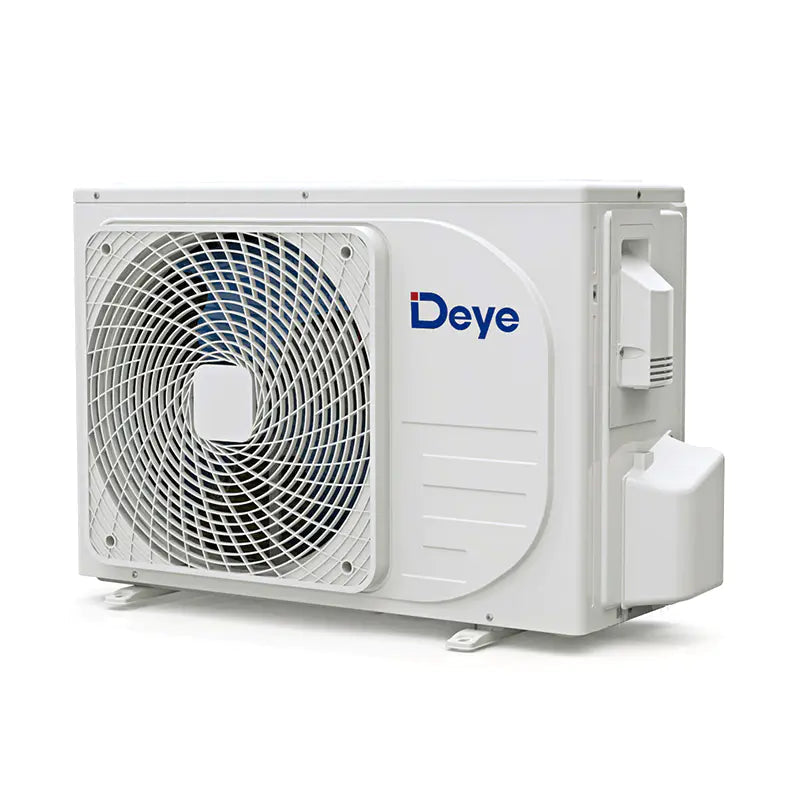

  • Deye 3.5kW R32 solar air conditioner indoor outdoor units
₦2,258,400.00
₦2,258,400.00
Tax included.
Low stock! Only 10 left

3.5kW wall-mounted Hybrid ACDC solar AC. R32, no batteries, MPPT and inverter in the outdoor unit. Official table DGWA2-ACDC-12KR2: cool/heat 3500W, EER 4.07, PV 80–380V, grid 208–240V / 50–60Hz. Wi-Fi and full DC inverter.

Key specifications

Order SKU

DWGA21-ACDCBLW-12KR2(EU)

Official R32 model

DGWA2-ACDC-12KR2 · 12000BTU / 3.5kW

Cooling

3500W (800–3900W) · input 860W (150–1100W)

Heating

3500W (900–4200W) · input 870W (150–1200W)

EER

4.07W/W

PV / grid

80–380V DC · 208–240V / 50–60Hz AC

Indoor / outdoor

840 × 205 × 295mm · 802 × 564 × 323mm

Refrigerant

R32 · GWP 675 · full DC inverter · Wi-Fi

Hybrid ACDC, no battery

Split wall-mounted solar AC (Hybrid ACDC). No batteries. Solar MPPT booster and inverter sit in the outdoor unit. Use PV DC in the sun; keep 208–240V grid AC when the roof is quiet.

Deye 4th-generation Hybrid ACDC is based on full DC inverter VRF technology. SVPWM 180° sine-wave DC inverter control runs the compressor below 0.1Hz and raises DC-compressor utilisation versus 120° DC inverter and non-inverter units.

R32 12K performance

Figures from the official ACDC R32 table, 12000BTU column, model DGWA2-ACDC-12KR2. Cooling 3500W (800–3900W), input 860W (150–1100W). Heating 3500W (900–4200W), input 870W (150–1200W). EER 4.07W/W.

Solar power voltage 80–380V. Grid 208–240V / 50–60Hz. R32 GWP 675 versus R410A GWP 2088 on the same product family page.

Install, size and protection

Indoor 840 × 205 × 295mm (pack 920 × 290 × 360mm). Outdoor 802 × 564 × 323mm (pack 910 × 622 × 405mm). Wi-Fi smart control, smart display, multiple protection, compressor delayed restart, one-key ration grid power supply.

Price is equipment only. A certified AC installer must size the room, PV strings, AC supply, refrigerant pipework, condensate and local rules. Factory cover does not include faults from incorrect install.

Deye Solar Air Conditioner | DWGA21-ACDCBLW-12KR2(EU) | 3.5kW Hybrid AC/DC R32

₦2,258,400.00

  • Capacity

    3.5kW

    Cool and Heat

  • Refrigerant

    R32

    GWP 675

  • EER

    4.07W/W

    High Efficiency

  • Power Voltage

    220V

    80-380V Solar

Wall-mounted Hybrid ACDC

Cool and heat from the roof. No battery bank.

3.5kW R32 split for homes, offices and small commercial rooms. Sunshine first, grid when you need it, Wi-Fi on the indoor unit.

Why this solar air conditioner

  • Hybrid ACDC, no batteries

    Connect compatible PV (80–380V). The outdoor unit already holds the MPPT booster and inverter. Grid 208–240V / 50–60Hz covers nights and cloud.

  • 3.5kW Cool and Heat

    Rated 3500W cooling (800–3900W) and 3500W heating (900–4200W). Inverter range tracks the room instead of running full-bore all day.

  • R32, EER 4.07

    Official R32 table EER 4.07W/W. R32 GWP 675, ODP 0 — not the R410A column on the same factory page.

  • Wi-Fi and full DC inverter

    Wi-Fi smart control, smart display, multiple protection and compressor delayed restart. SVPWM DC inverter control on the compressor.
Specifications

Technical data

Order SKU DWGA21-ACDCBLW-12KR2(EU)
Official model DGWA2-ACDC-12KR2
Class 12000BTU · 3.5kW · R32 Hybrid ACDC
Solar power voltage 80–380V
Grid power voltage 208–240V / 50–60Hz
Cooling capacity 3500W (800–3900W)
Cooling power input 860W (150–1100W)
Heating capacity 3500W (900–4200W)
Heating power input 870W (150–1200W)
EER 4.07W/W
Indoor dimension W × H × D 840 × 205 × 295mm
Indoor packing W × H × D 920 × 290 × 360mm
Outdoor dimension W × H × D 802 × 564 × 323mm
Outdoor packing W × H × D 910 × 622 × 405mm
Features Full DC inverter · built-in solar MPPT · Wi-Fi · smart display · compressor delayed restart · one-key ration grid power
Batteries Not required

Can this air conditioner connect to solar panels?

Yes. Hybrid AC/DC with solar DC input. The outdoor unit integrates the solar MPPT booster and inverter. PV string design must be confirmed by a qualified installer.

Does it need a battery?

No. This product does not use batteries. Use compatible PV DC and standard grid AC.

Can it run from the grid when sunlight is not enough?

Yes. The R32 12000BTU table lists 208–240V / 50–60Hz grid power, so the split can keep cooling or heating when PV is weak, cloudy or after sunset.

Which official model data is used for this SKU?

Order SKU DWGA21-ACDCBLW-12KR2(EU). The public Deye R32 table lists the matching 12000BTU / 3.5kW data under DGWA2-ACDC-12KR2. This page does not use the R410A 12K column.

What should be confirmed before purchase?

PV input design, AC supply, indoor and outdoor placement, refrigerant pipework, condensate drainage and local compliance, with a certified air-conditioning installer.

Is installation included?

No. Price is for the indoor unit, outdoor unit and documentation. Installation, PV, copper pipe and labour are extra and must be done by a certified professional.

Ready for 3.5kW R32 Hybrid ACDC cooling

No batteries. PV 80–380V, grid 208–240V, EER 4.07, Wi-Fi.
