Deye Smart Wallbox | AC-Charger | SUN-EVSE22K01-EU-AC

₦629,600.00

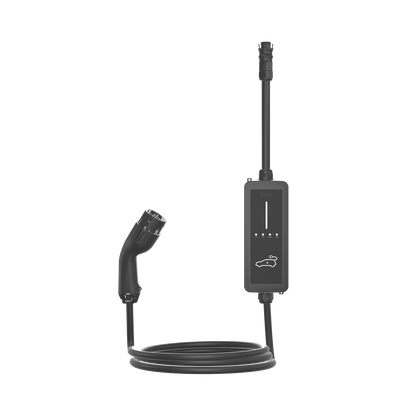

  • Deye SUN-EVSE22K01-EU-AC Smart Wallbox AC charger

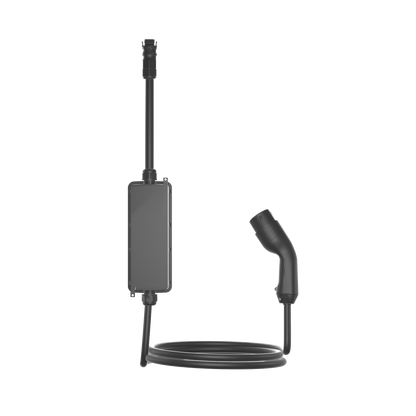

  • Deye Smart Wallbox Type 2 charging gun

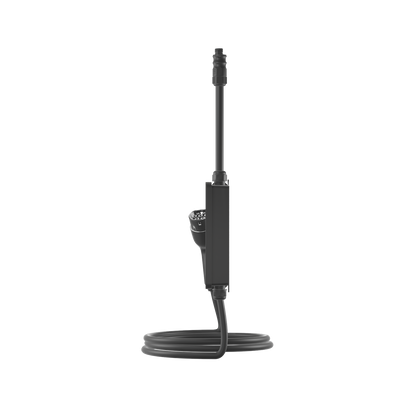

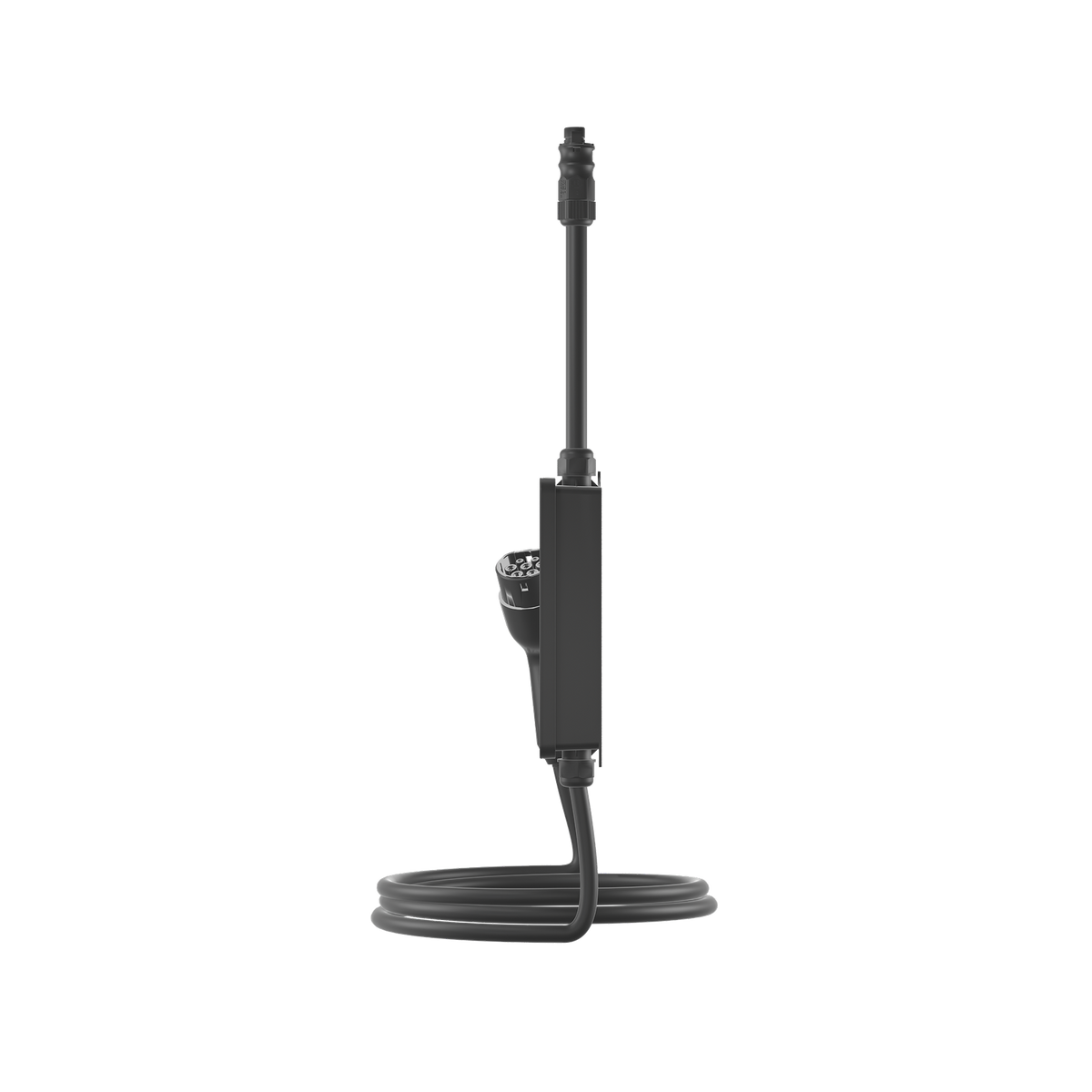

  • Deye Smart Wallbox side view

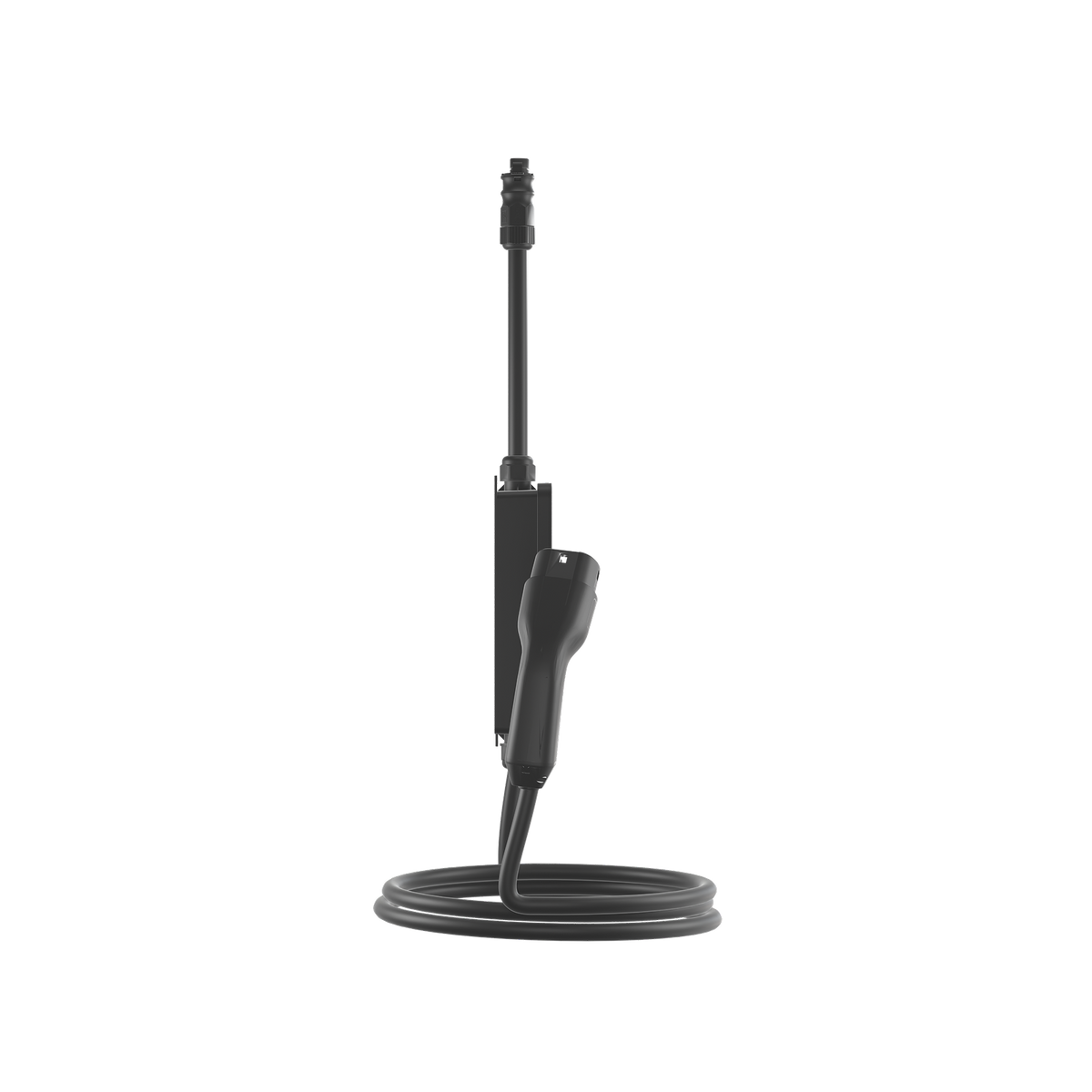

  • Deye Smart Wallbox front view
₦629,600.00
₦629,600.00
Tax included.
Low stock! Only 10 left

AC EV charger for Deye Wireless Energy Management. 22kW three-phase or 7kW single-phase at 32A, Type 2, LoRa / Wi-Fi / BLE, outdoor IP66. 5-year warranty.

Key specifications

Model

SUN-EVSE22K01-EU-AC

Output

22kW 3-phase · 7kW 1-phase · 32A

Connector

IEC 62196 Type 2 · 4.2m cable

Modes

Immediate · Time of Charge · Solar Energy Only

Wireless

LoRa / Wi-Fi / BLE

Enclosure

IP66 · −40°C to +55°C

Size / weight

104×264×57.5mm · 3.7kg

Warranty

5 years

Charging output

This listing is SUN-EVSE22K01-EU-AC only: 32A, 22kW on 3L+N+PE at 230/400V, or 7kW on L+N+PE at 230V. Frequency 50Hz (45–55Hz) / 60Hz (55–65Hz). Current settable 6A–32A in the Deye Cloud App. IEC 62196 Type 2 connector, 4.2m gun cable, one charging gun. SUN-EVSE11K01-EU-AC is a different 11kW SKU.

Installation by a qualified electrician on a dedicated circuit with overcurrent protection. Confirm the supply before you order.

Modes, LoRa and app

Immediate charging, Time of Charge (up to 4 windows), or Solar Energy Only from surplus PV when paired with a Deye hybrid inverter. Starting methods also include charge after scanning and appointment for charging. Control from the Deye Cloud App, inverter LCD, or the body button.

LoRa / Wi-Fi / BLE. LoRa pairing with an inverter needs SUN-SMART-TX01 (sold separately). Standalone Wi-Fi works without an inverter. LoRa keeps local commands if the internet drops.

Safety, outdoor use and standards

OVP, UVP, OLP, SCP, over- and low-temperature, earth fault, DC leakage 6mA, surge Type II. Emergency stop on the charger body. Noise <25dB. MTBF 100,000h.

IP66, −40°C to +55°C, humidity 5–95% no condensation, altitude ≤3000m. Wall-mount or floor stand. Size 104×264×57.5mm, 3.7kg. EN IEC 61851-1:2019, IEC 61851-1:2017, EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021. 5-year warranty. Confirm terms for the installation country.

Deye Smart Wallbox | AC-Charger | SUN-EVSE22K01-EU-AC

₦629,600.00

  • Output

    22kW

    32A · 7kW 1-phase

  • Connector

    Type 2

    4.2m gun cable

  • Enclosure

    IP66

    −40°C to +55°C

  • Weight

    3.7kg

    104×264×57.5mm

Wireless Energy Management System

Power flows. Wires don’t.

SUN-EVSE22K01-EU-AC charges a Type 2 EV from grid or surplus PV. 22kW three-phase or 7kW single-phase, IP66, LoRa / Wi-Fi / BLE.

Why this wallbox

  • 22kW or 7kW

    32A: 22kW on 3L+N+PE, or 7kW on L+N+PE. This SKU is not the 11kW SUN-EVSE11K01-EU-AC.

  • LoRa, Wi-Fi and BLE

    LoRa to a Deye hybrid inverter with SUN-SMART-TX01, or standalone Wi-Fi without an inverter.

  • Three charging modes

    Immediate charging, Time of Charge with up to 4 windows, or Solar Energy Only from surplus PV.

  • IP66 outdoor body

    −40°C to +55°C, Type II surge, DC 6mA leakage. 3.7kg, 4.2m Type 2 cable, 5-year cover.

How it charges

  • Immediate charging

    Connect the Type 2 gun and start at up to 22kW three-phase. Set 6A–32A in the Deye Cloud App.

  • Time of Charge

    Up to 4 time windows. Appointment for charging is available in standalone Wi-Fi mode.

  • Solar Energy Only

    With a Deye hybrid inverter, charge from surplus PV. Household loads stay first.

  • Needs SUN-SMART-TX01 for LoRa

    LoRa pairing uses the Smart Transmitter, sold separately. Wi-Fi / BLE work without it.
Specifications

Technical data

Model SUN-EVSE22K01-EU-AC
Input voltage 230V 1-phase · 230/400V 3-phase
Connection L+N+PE · 3L+N+PE
Input current 32A
Frequency 50Hz (45–55Hz) / 60Hz (55–65Hz)
Maximum output 7kW 1-phase · 22kW 3-phase
Current settable 6A–32A
Connector IEC 62196 Type 2
Gun cable 4.2m · 1 gun
Starting methods Immediate · after scanning · appointment
Charging modes Immediate · Time of Charge · Solar Energy Only
Communication LoRa / Wi-Fi / BLE
LoRa band 863–870MHz
Protections OVP · UVP · OLP · SCP · earth fault · DC 6mA · Type II surge
Temperature −40°C to +55°C
Humidity 5–95% no condensation
Altitude ≤3000m
Noise <25dB
IP rating IP66
Size (W×H×D) 104×264×57.5mm
Weight 3.7kg
MTBF 100,000h
Standards EN IEC 61851-1:2019 · IEC 61851-1:2017
Warranty 5 years
In the box Wallbox ×1 · Type 2 cable 4.2m ×1 · bracket and screws · guides
Required accessory SUN-SMART-TX01 for LoRa inverter pairing

What is SUN-EVSE22K01-EU-AC?

A 32A AC wallbox with a Type 2 gun. 22kW three-phase or 7kW single-phase, IP66, LoRa / Wi-Fi / BLE. This listing is not the 11kW SKU.

Do I need the Smart Transmitter?

Yes for LoRa to a Deye hybrid inverter. SUN-SMART-TX01 is sold separately. Standalone Wi-Fi charging does not need the transmitter.

What is the maximum charging power?

22kW at 32A, 230/400V, three-phase, or 7kW at 32A, 230V, single-phase. Set 6A–32A in the Deye Cloud App. A 60kWh pack is about 3 hours at full 22kW. Confirm the supply before you order.

Which charging modes are included?

Immediate charging, Time of Charge (up to 4 windows), and Solar Energy Only from surplus PV when paired with a Deye hybrid inverter. Appointment for charging is available on standalone Wi-Fi.

Which EVs does it fit?

Vehicles with an IEC 62196 Type 2 inlet. Installation by a qualified electrician.

Can it be installed outdoors?

Yes. IP66, −40°C to +55°C, 5–95% humidity without condensation. Wall-mount or floor stand.

What warranty is included?

5-year product warranty. Confirm terms for the installation country.

Ready for 22kW Type 2 charging

22kW three-phase or 7kW single-phase, 32A, IP66, 4.2m Type 2 cable. LoRa pairing needs SUN-SMART-TX01.
