Deye Smart Switch | SUN-SMART-SWITCH01P3

₦159,900.00

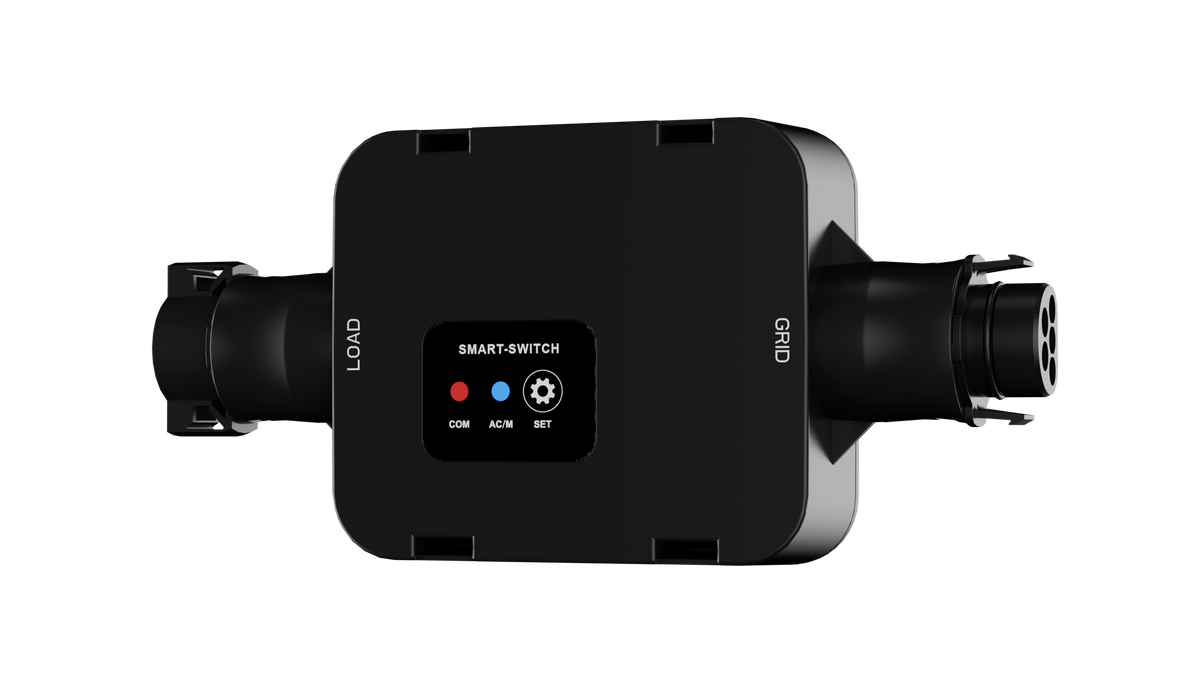

  • Deye SUN-SMART-SWITCH01P3 LoRa smart switch
₦159,900.00
₦159,900.00
Tax included.
Low stock! Only 10 left

LoRa wall switch for Deye Wireless Energy Management. 25A on 1-phase or 3-phase, 200m range, Time and SOC schedules, outdoor IP65. 5-year warranty.

Key specifications

Model

SUN-SMART-SWITCH01P3

Current / voltage

25A · 94–238V AC phase

Connection

L1/N or L1/L2/L3/N · plug-in terminal

Wireless

LoRa · ≈200m · 863–870MHz

Control

Manual · Time · SOC-linked

Enclosure

IP65 · CLASS I · −40°C to +45°C

Size / weight

96.7×204.7×37.7mm · 0.4kg

Warranty

5 years

Electrical and connection

Voltage 94–238V AC (phase). Maximum current 25A AC (phase). Frequency 50Hz (45–55Hz) / 60Hz (55–65Hz). Single-phase L1/N or three-phase L1/L2/L3/N. Plug-in terminal connector.

Built for high-power loads such as heat pumps, air conditioners and water heaters.

LoRa, Time and SOC

LoRa 863–870MHz, internal antenna, 1.58dBi @ 868MHz, about 200m unobstructed. Pairing with a Deye inverter needs SUN-SMART-TX01 (sold separately). Schedules keep running without home Wi-Fi once paired.

Manual ON/OFF from the button, inverter, Deye Cloud App or web. Time Mode runs a weekly schedule (physical button disabled while the schedule is active). SOC-linked mode starts or stops loads from battery state of charge.

Outdoor use and certifications

IP65, CLASS I, humidity 0–100% RH, altitude ≤4000m, −40°C to +45°C. Flame-retardant housing. Standard IEC/EN 61010-1.

Size 96.7×204.7×37.7mm, 0.4kg. Box: switch ×1, quick start guide ×1, warranty card ×1. 5-year warranty. Confirm terms for the installation country.

Deye Smart Switch | SUN-SMART-SWITCH01P3

₦159,900.00

  • Max. current

    25A

    1-phase and 3-phase

  • LoRa range

    200m

    unobstructed · 863–870MHz

  • Enclosure

    IP65

    indoor and outdoor

  • Weight

    0.4kg

    96.7×204.7×37.7mm

Wireless Energy Management System

Power flows. Wires don’t.

SUN-SMART-SWITCH01P3 switches high-power circuits on LoRa. 25A, 1-phase or 3-phase, IP65, Time and SOC control.

Why this smart switch

  • 25A, 1-phase or 3-phase

    Phase current 25A at 94–238V AC. L1/N or L1/L2/L3/N for heat pumps, air conditioners and water heaters.

  • LoRa about 200m

    863–870MHz, internal antenna 1.58dBi @ 868MHz. Direct inverter link, not home Wi-Fi.

  • Time and SOC schedules

    Manual, Time Mode and SOC-linked control from the inverter and Deye Cloud App.

  • IP65 outdoor body

    −40°C to +45°C, 0–100% RH, CLASS I. 0.4kg wall-mount switch with 5-year cover.

Built for hard-wired loads

  • Solar-linked loads

    Run circuits when PV or battery SOC allows. Part of the Wireless Energy Management System.

  • Works if Wi-Fi drops

    After pairing, LoRa keeps inverter control and schedules running without the home router.

  • Needs SUN-SMART-TX01

    LoRa pairing with a Deye inverter uses the Smart Transmitter, sold separately.

  • Not an indoor 16A socket

    For indoor socket loads under 16A use SUN-SMART-PLUG01P1-F. This SKU is the 25A hard-wired switch.
Specifications

Technical data

Model SUN-SMART-SWITCH01P3
Voltage range 94–238V AC (phase)
Connection L1/N (1-phase) · L1/L2/L3/N (3-phase)
Maximum current 25A AC (phase)
Frequency 50Hz (45–55Hz) / 60Hz (55–65Hz)
Terminal Plug-in connector
Communication LoRa
LoRa distance ≈200m barrier-free
Frequency range 863–870MHz
Antenna Internal · 1.58dBi @ 868MHz
Working temperature −40°C to +45°C
Humidity 0–100% RH
IP rating IP65
Protection class CLASS I
Altitude ≤4000m
Size (W×H×D) 96.7×204.7×37.7mm
Weight 0.4kg
Standards IEC/EN 61010-1
Warranty 5 years
In the box Smart Switch ×1 · Quick Start Guide ×1 · Warranty card ×1
Required accessory SUN-SMART-TX01 for LoRa inverter pairing

What is SUN-SMART-SWITCH01P3?

A LoRa load switch for hard-wired 1-phase or 3-phase circuits. 25A phase current, about 200m LoRa, Manual / Time / SOC modes, IP65.

Do I need the Smart Transmitter?

Yes for LoRa inverter pairing. SUN-SMART-TX01 is sold separately. Without it the switch does not join the inverter wirelessly.

What loads can it switch?

Loads up to 25A on 1-phase or 3-phase, including heat pumps, air conditioners, water heaters and pool pumps. Indoor 16A socket loads belong on SUN-SMART-PLUG01P1-F.

Can it be installed outdoors?

Yes. IP65, −40°C to +45°C, 0–100% RH. Install next to an outdoor heat pump or pool pump without a second enclosure.

Does it work without home Wi-Fi?

After pairing, LoRa talks to the inverter without the home router. Internet is for first setup and remote Cloud App access.

What control modes are included?

Manual: ON/OFF from the button, inverter, Cloud App or web. Time Mode: a weekly schedule; the physical button is disabled while the schedule is active. SOC-linked: start or stop loads from battery state of charge.

What warranty is included?

5-year product warranty. Confirm terms for the installation country.

Ready for 25A LoRa switching

25A, 1-phase or 3-phase, 200m LoRa, IP65, 0.4kg. Pair with SUN-SMART-TX01.
