Deye Smart Plug | SUN-SMART-PLUG01P1-F

₦103,400.00

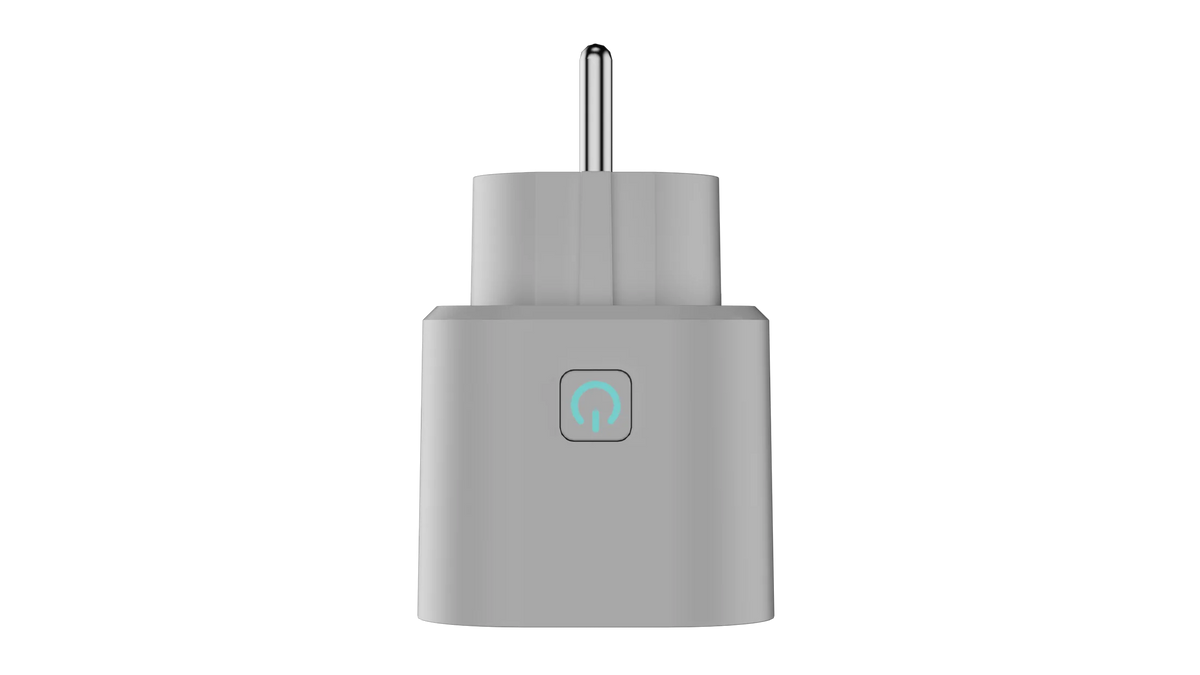

  • Deye Smart Plug, white EU Type F smart socket
Plug standard
₦103,400.00
₦103,400.00
Tax included.
Low stock! Only 10 left

LoRa smart plug for Deye Wireless Energy Management. 16A at 220–250V AC, 200m range, Deye Cloud App and Time Mode, indoor IP20. 2-year warranty.

Key specifications

Model

SUN-SMART-PLUG01P1-F

Current / voltage

16A · 220–250V AC

Wireless

LoRa · 200m · 863–870MHz

Control

Manual · Time Mode · Deye Cloud App

Protection

Auto-shutoff if current >16A for >20s

Enclosure

IP20 indoor · CLASS I

Size / weight

51.2×51.2×64mm · 0.08kg

Warranty

2 years

Electrical and connection

Rated 220–250V AC. Maximum current 16A. Frequency 50Hz (45–55Hz) / 60Hz (55–65Hz). EU Type F (Schuko) plug-type connection for indoor sockets.

Built for heavy household loads and microinverters on a 16A circuit. Indoor use only (IP20).

LoRa, app and Time Mode

LoRa 863–870MHz, internal antenna, about 200m unobstructed. Pairing with a Deye inverter needs SUN-SMART-TX01 (sold separately). Automation can keep running without home Wi-Fi once paired.

Manual ON/OFF from the button, inverter, or Deye Cloud App. Time Mode sets a schedule; the physical button is disabled in that mode. Link loads to battery SOC or grid status through the inverter.

Safety, size and certifications

Auto-shutoff if current exceeds 16A for more than 20s; the plug re-checks after 10 minutes. CLASS I. Working temperature −40°C to +60°C. Altitude ≤3000m.

Size 51.2×51.2×64mm, 0.08kg. Standards VDE 0620-2-1 and EN 61058. 2-year warranty on this listing.

Deye Smart Plug | SUN-SMART-PLUG01P1-F

₦103,400.00

  • Max. current

    16A

    220–250V AC

  • LoRa range

    200m

    unobstructed · 863–870MHz

  • Enclosure

    IP20

    indoor use

  • Weight

    0.08kg

    plug-and-play

Wireless Energy Management System

Power flows. Wires don’t.

SUN-SMART-PLUG01P1-F turns a standard indoor socket into a LoRa smart load for Deye inverters. 16A, App and Time Mode, 0.08kg, IP20.

Why this smart plug

16A capacity, LoRa through walls, Cloud App schedules, and indoor plug-and-play. Needs SUN-SMART-TX01 for inverter pairing.

  • 16A high-power capacity

    Handles heavy loads and microinverters at 16A, 220–250V AC. Auto-shutoff if current stays above 16A for more than 20s.

  • LoRa through walls

    About 200m unobstructed on 863–870MHz. Direct inverter link via LoRa, not home Wi-Fi.

  • App and Time Mode

    Remote ON/OFF in the Deye Cloud App. Time Mode runs a schedule. SOC-linked loads through the inverter.

  • Plug-and-play, 0.08kg

    No tools. EU Type F indoor socket, IP20. Box: plug, quick start guide, warranty card.

In the Deye wireless stack

  • Solar-linked loads

    Run appliances when PV or battery SOC allows. Part of the Wireless Energy Management System.

  • Works if Wi-Fi drops

    After pairing, LoRa keeps inverter control and schedules running without the home router.

  • Overcurrent cut-off

    Disconnects if current exceeds 16A for more than 20s, then re-checks after 10 minutes.

  • Needs Smart Transmitter

    LoRa inverter integration requires SUN-SMART-TX01, sold separately.
Specifications

Technical data

Model SUN-SMART-PLUG01P1-F
Plug standard EU Type F (Schuko)
Rated voltage 220–250V AC
Maximum current 16A AC
Frequency 50Hz (45–55Hz) / 60Hz (55–65Hz)
Connection Plug-type
Communication LoRa
LoRa distance ≈200m barrier-free
Frequency range 863–870MHz
Antenna Internal · 0.23dBi @ 868MHz
Working temperature −40°C to +60°C
IP rating IP20 indoor
Protection class CLASS I
Altitude ≤3000m
Size (W×H×D) 51.2×51.2×64mm
Weight 0.08kg
Standards VDE 0620-2-1 · EN 61058
Warranty 2 years on this listing
In the box Smart Plug ×1 · Quick Start Guide ×1 · Warranty card ×1
Required accessory SUN-SMART-TX01 for LoRa inverter pairing

What is SUN-SMART-PLUG01P1-F?

A LoRa smart plug for ordinary indoor appliances on the Deye solar stack. 16A at 220–250V AC, about 200m LoRa, Manual and Time modes, IP20.

Do I need the Smart Transmitter?

Yes for LoRa inverter pairing. SUN-SMART-TX01 is sold separately. Without it the plug does not join the inverter wirelessly.

What can I plug in?

Single-phase indoor loads up to 16A. Outdoor use needs SUN-SMART-SWITCH01P3 instead.

Does it work without home Wi-Fi?

After pairing, LoRa talks to the inverter without the home router. Internet is for first setup and remote Cloud App access.

What are Manual and Time Mode?

Manual: ON/OFF from the button, inverter, or Cloud App. Time Mode: a schedule; the physical button is disabled so the schedule cannot be overridden.

What warranty is included?

2-year product warranty on this listing. Confirm terms for the installation country.

Ready to put loads on LoRa

16A, 200m LoRa, App and Time Mode, IP20, 0.08kg. Pair with SUN-SMART-TX01.
