Deye Balcony Battery Expansion Pack | AE-F2.56

₦968,600.00

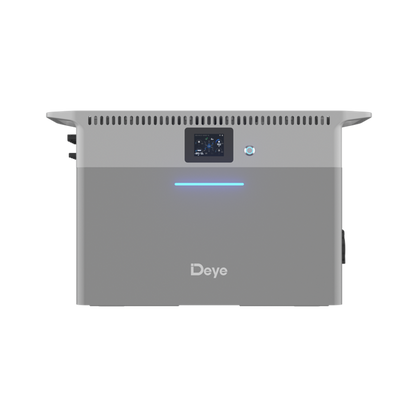

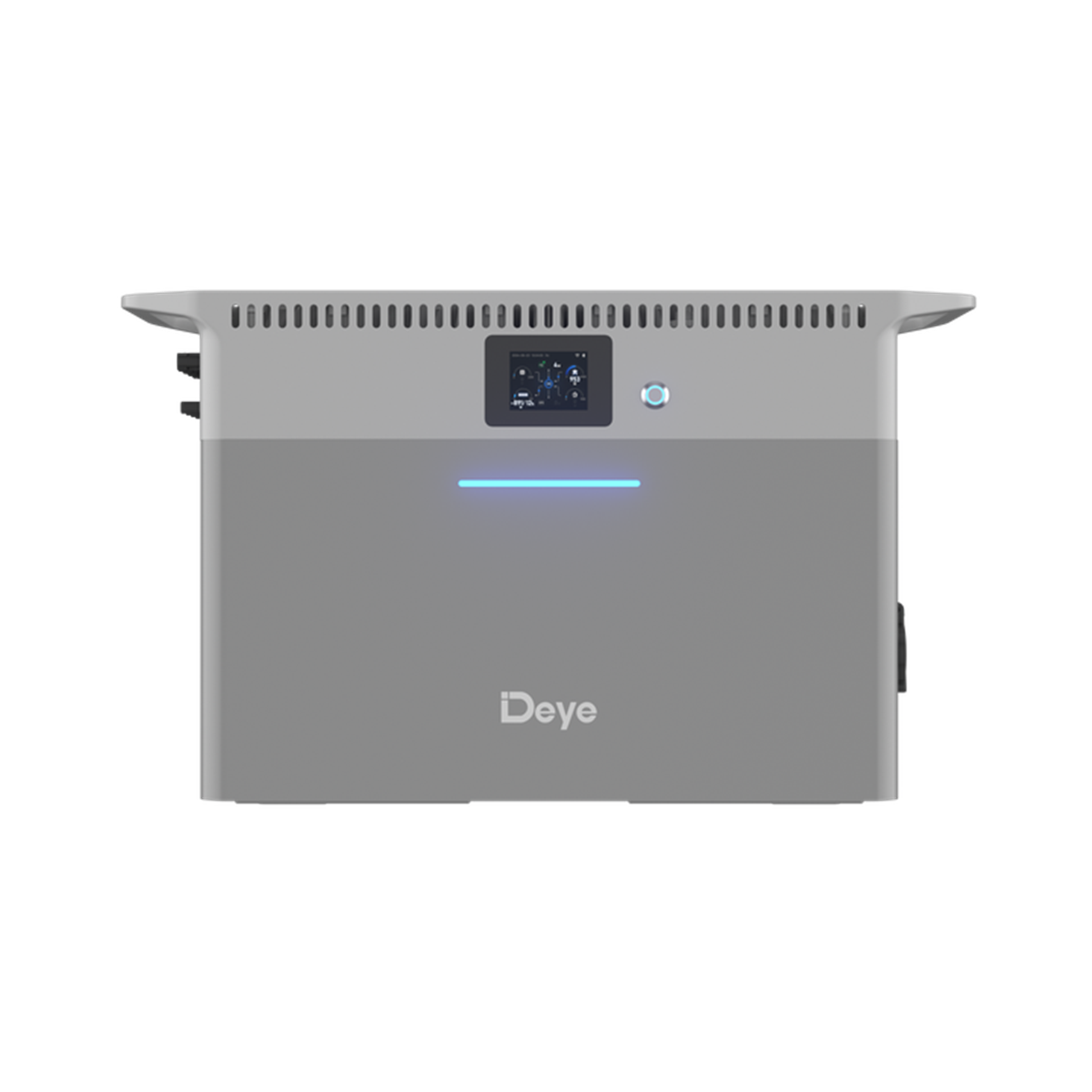

  • Deye AE-F2.56 battery expansion pack for SUN-BK

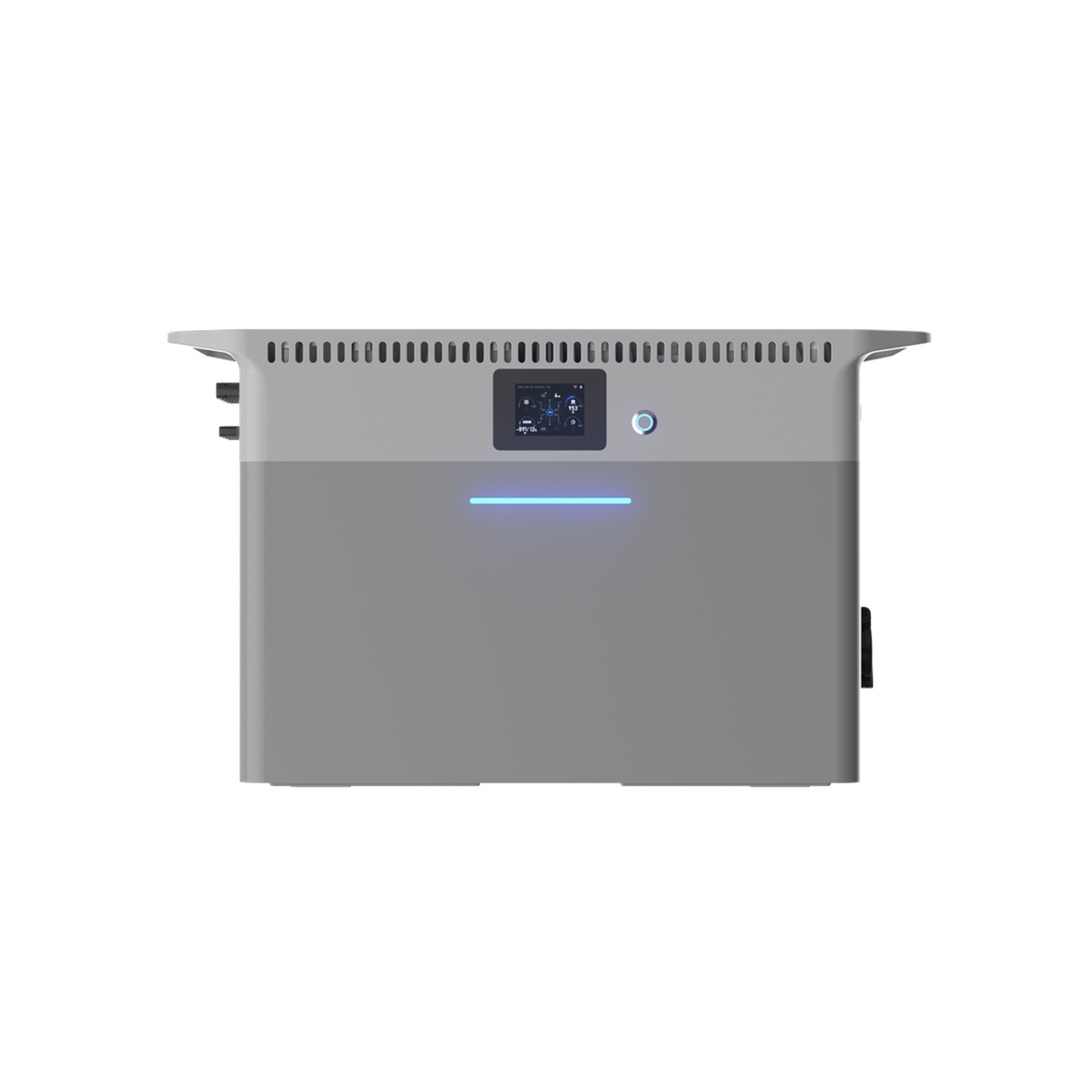

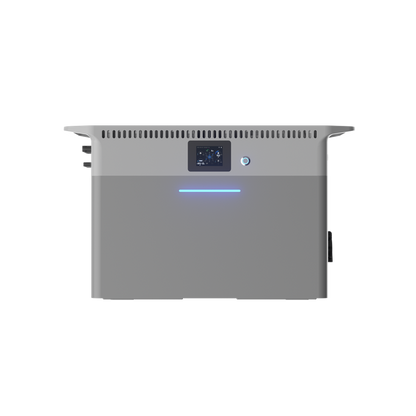

  • Deye AE-F2.56 pack and SUN-BK system contents
₦968,600.00
₦968,600.00
Tax included.
Low stock! Only 10 left

Dedicated LiFePO₄ expansion pack for the Deye SUN-BK Micro Hybrid ESS. Adds 2.56kWh per module. Stack up to 5 packs (12.8kWh) or 40 packs (102.4kWh) on a full SUN-BK design.

Model AE-F2.56. Not the AE-F2.0 pack used with AE-FS2.0-2H2.

Key specifications

Model

AE-F2.56

Fits

SUN-BK Micro Hybrid ESS

Energy

2.56kWh · 51.2V LiFePO₄

Current

50A charge / discharge

Stack

5 packs / 12.8kWh

System

40 packs / 102.4kWh

Enclosure

IP65 · 450×210×244mm · 24kg

Warranty

Up to 5 years on this listing

Battery

LiFePO₄, 2.56kWh, 51.2V. Operating 44.8–57.6V. Max. charge/discharge 50A. Cycle life ≥6000 at 25°C, 70% EOL. LED shows SOC and alarm.

Adds 2.56kWh to a compatible SUN-BK Micro Hybrid ESS. This is a battery pack only — it does not invert or connect PV on its own.

Compatibility and stacking

Made for SUN-BK(80–250)-2.56KWH systems. Not AE-F2.0 and not for AE-FS2.0-2H2.

Up to 5 packs in one vertical stack (12.8kWh). Up to 8 clusters / 40 packs (102.4kWh) on a complete SUN-BK design. Communication is LoRa.

Mechanics and certifications

IP65. 450×210×244mm without terminals, about 24kg. Floor-mounted or stacked. −10°C to +55°C (−20°C with optional heating). Humidity 0–95%. Altitude ≤3000m.

UN38.3, IEC 62619, CE. Up to 5 years warranty.

Deye Balcony Battery Expansion Pack | AE-F2.56

₦968,600.00

  • Module energy

    2.56kWh

  • Max packs

    40

  • Cycle life

    6000+

  • Enclosure

    IP65

SUN-BK expansion

More hours from the same balcony stack

AE-F2.56 adds 2.56kWh of LiFePO₄ to a SUN-BK Micro Hybrid ESS. Stack five, or scale the full plant to 102.4kWh.

Why this expansion pack

2.56kWh LFP for SUN-BK only. Stack 5, system 40, IP65, LoRa. Not AE-F2.0.

  • 2.56kWh LiFePO₄

    51.2V, 50A charge/discharge, ≥6000 cycles at 70% EOL. LED SOC and alarm.

  • Made for SUN-BK

    Dedicated pack for Deye SUN-BK Micro Hybrid ESS. Do not mix with AE-F2.0 / AE-FS2.0-2H2.

  • 5 per stack, 40 per plant

    12.8kWh in one vertical stack. Up to 40 packs / 102.4kWh on the full SUN-BK design.

  • IP65, 24kg

    450×210×244mm without terminals. Floor or stacked. LoRa to the SUN-BK host.
Specifications

Technical data

Model AE-F2.56
Type Battery expansion pack
Compatible host Deye SUN-BK Micro Hybrid ESS
Not compatible AE-FS2.0-2H2 (uses AE-F2.0)
Battery chemistry LiFePO₄
Nominal voltage 51.2V
Nominal energy 2.56kWh (2560Wh)
Operating voltage 44.8–57.6V
Max. charge / discharge 50A
Cycle life ≥6000 @ 25°C, 70% EOL
Max. stack 5 packs · 12.8kWh
Parallel / clusters 40 packs · 8 clusters · 102.4kWh
Display LED (SOC, alarm)
Communication LoRa
Size (W×D×H) 450×210×244mm without terminals
Weight 24kg
IP rating IP65
Mounting Floor-mounted · stacked
Operating temperature −10°C to +55°C (−20°C with optional heating)
Humidity 0–95%
Altitude ≤3000m
Certifications UN38.3 · IEC 62619 · CE
Warranty Up to 5 years

What is AE-F2.56?

A 2.56kWh LiFePO₄ expansion pack for the Deye SUN-BK Micro Hybrid ESS. Battery only — the SUN-BK host does PV and AC.

Will it work with AE-FS2.0-2H2?

No. FS2.0 uses AE-F2.0 (2.0kWh). AE-F2.56 is the SUN-BK pack.

How many can I stack?

Up to 5 packs in one vertical stack (12.8kWh). A full SUN-BK design can take 40 packs (102.4kWh) across 8 clusters.

Is it outdoor-rated?

IP65. About 24kg. Floor or stacked. −10°C to +55°C; optional heating to −20°C.

What warranty is included?

Up to 5 years warranty. Confirm for the installation country.

Ready to add 2.56kWh to SUN-BK

LiFePO₄ expansion pack. 5 per stack, 40 per plant, IP65, LoRa. Not AE-F2.0.

Add to cart Contact sales
2.56kWh
12.8kWh stack
IP65
SUN-BK only
