Deye Balcony Power Plant with Storage | AE-FS2.0-2H2

$785.08

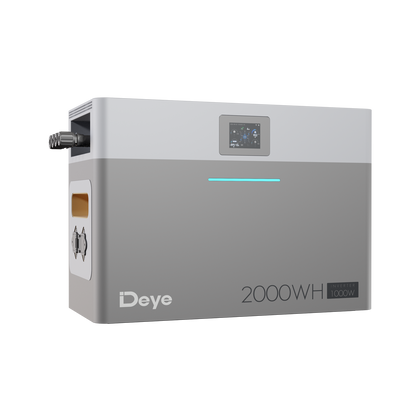

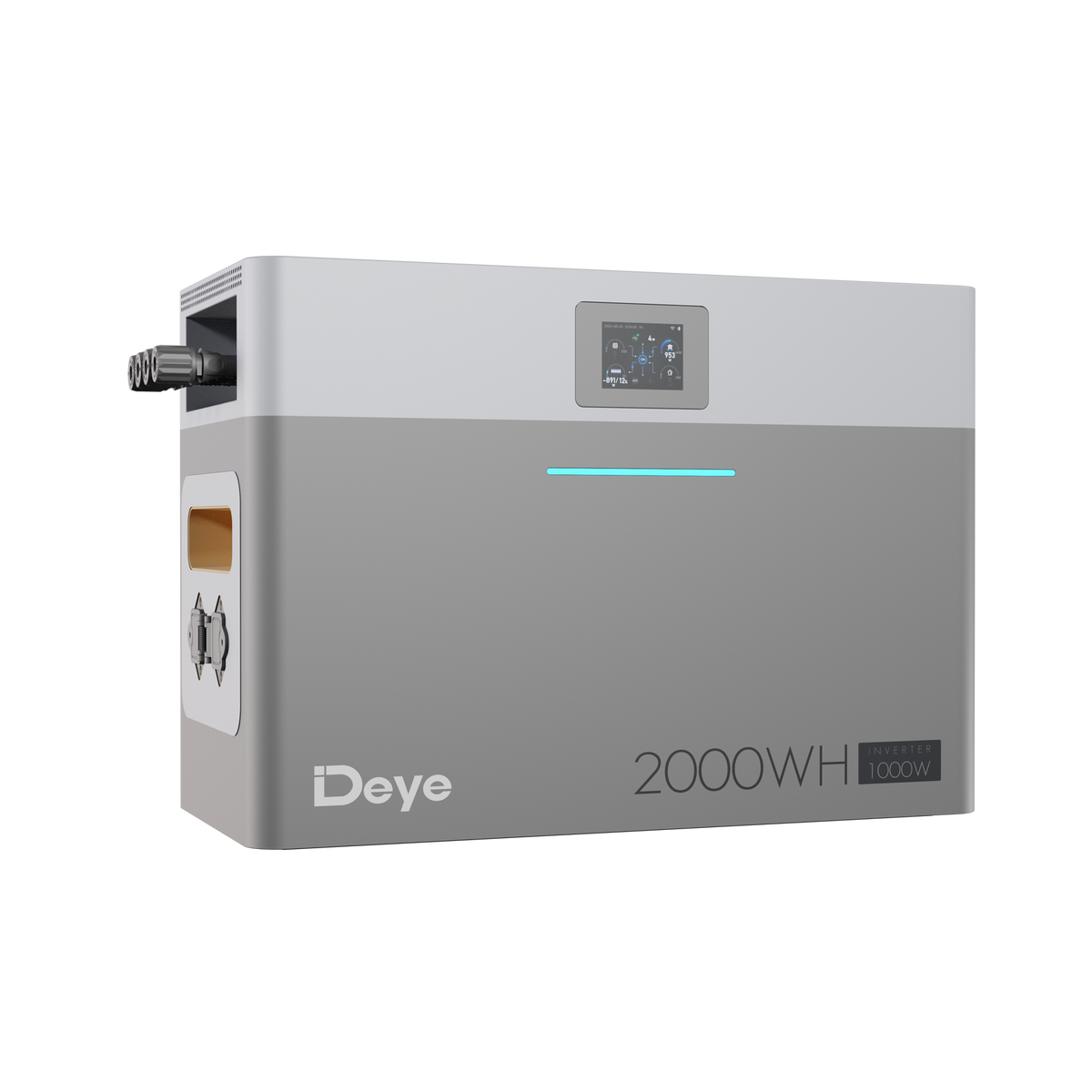

  • Deye AE-FS2.0-2H2 balcony storage front

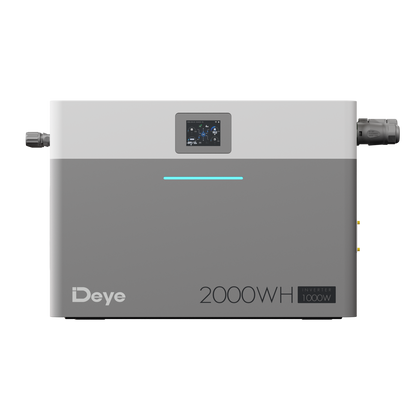

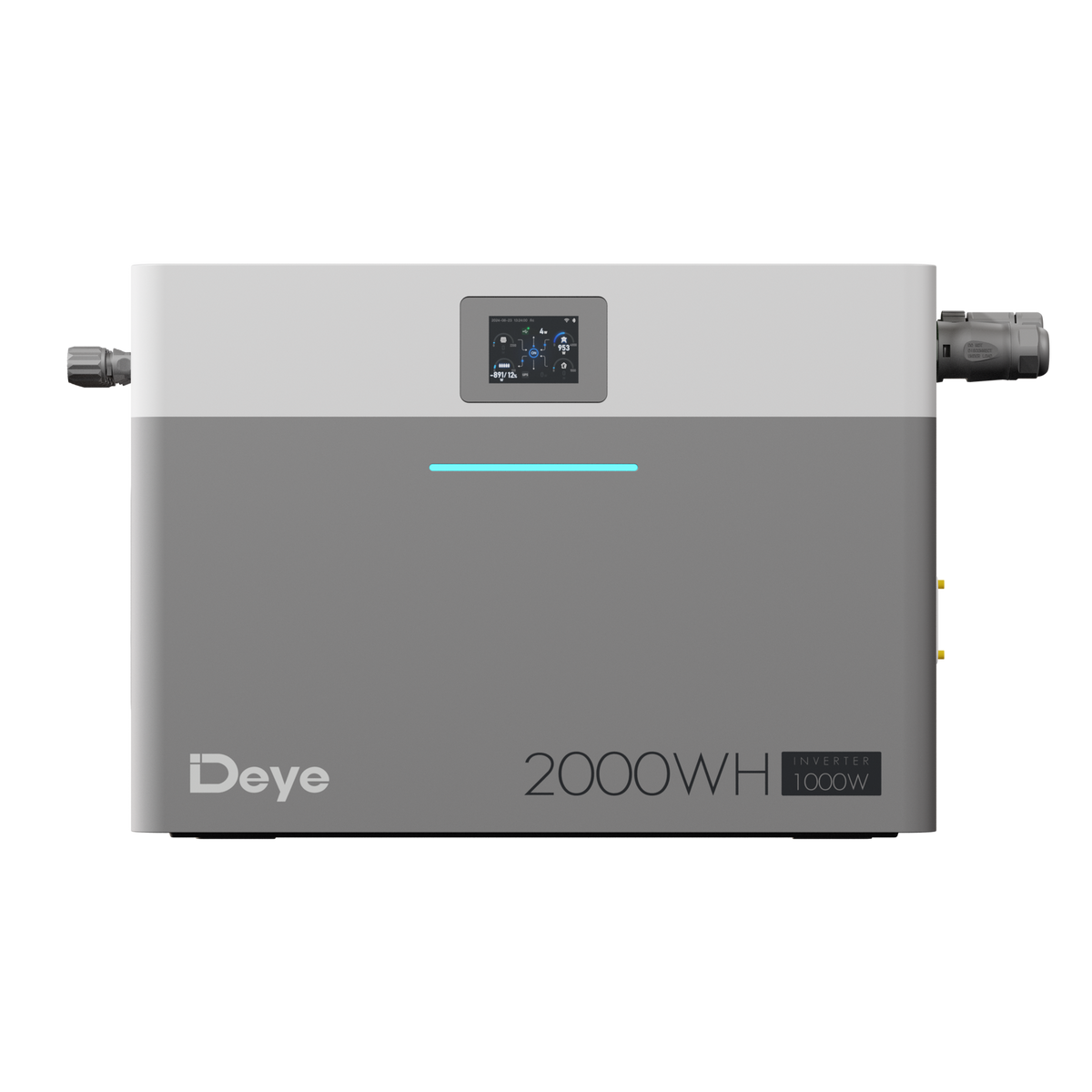

  • Deye AE-FS2.0-2H2 ports and LCD

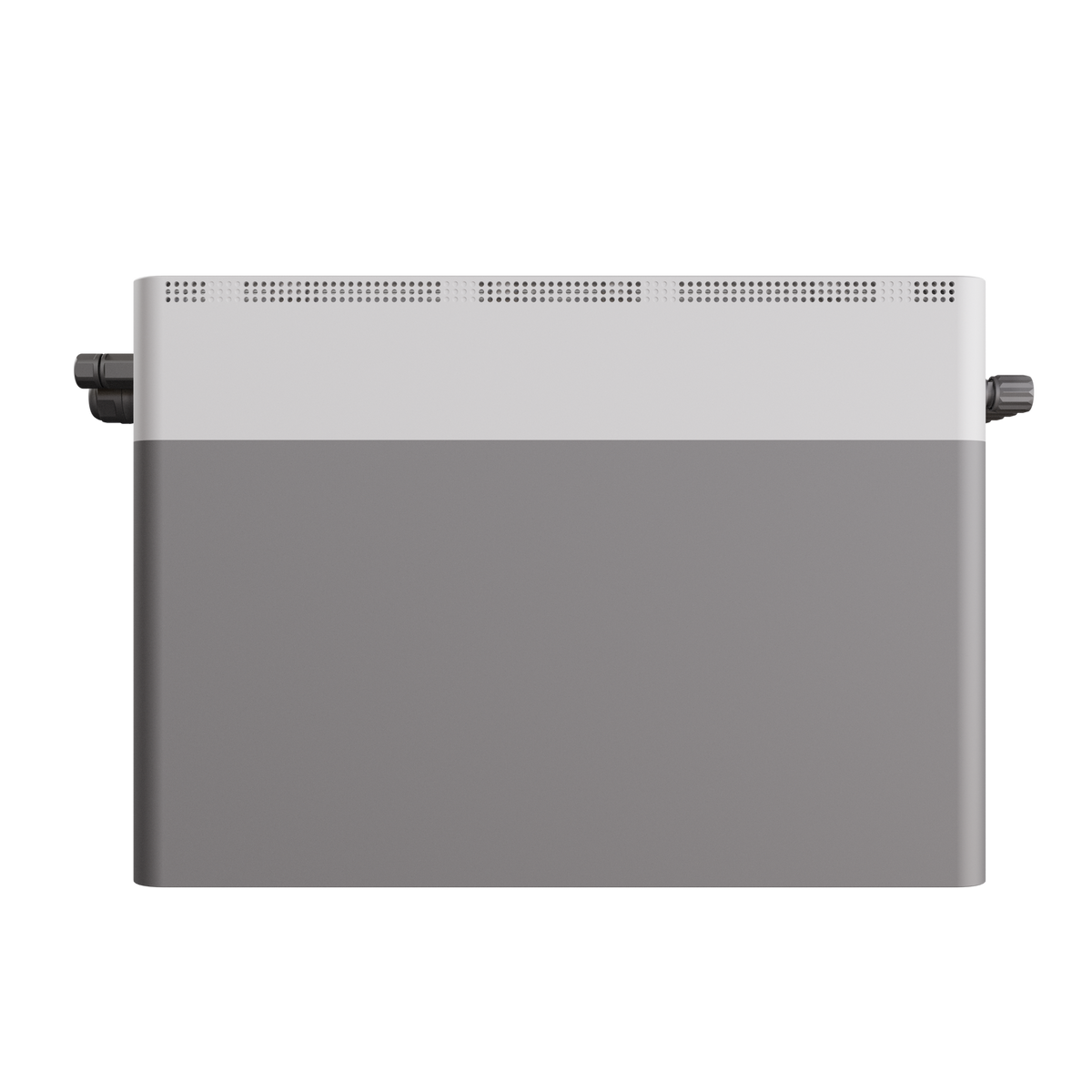

  • Deye AE-FS2.0-2H2 side view

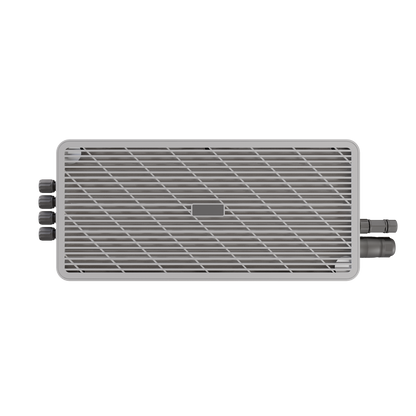

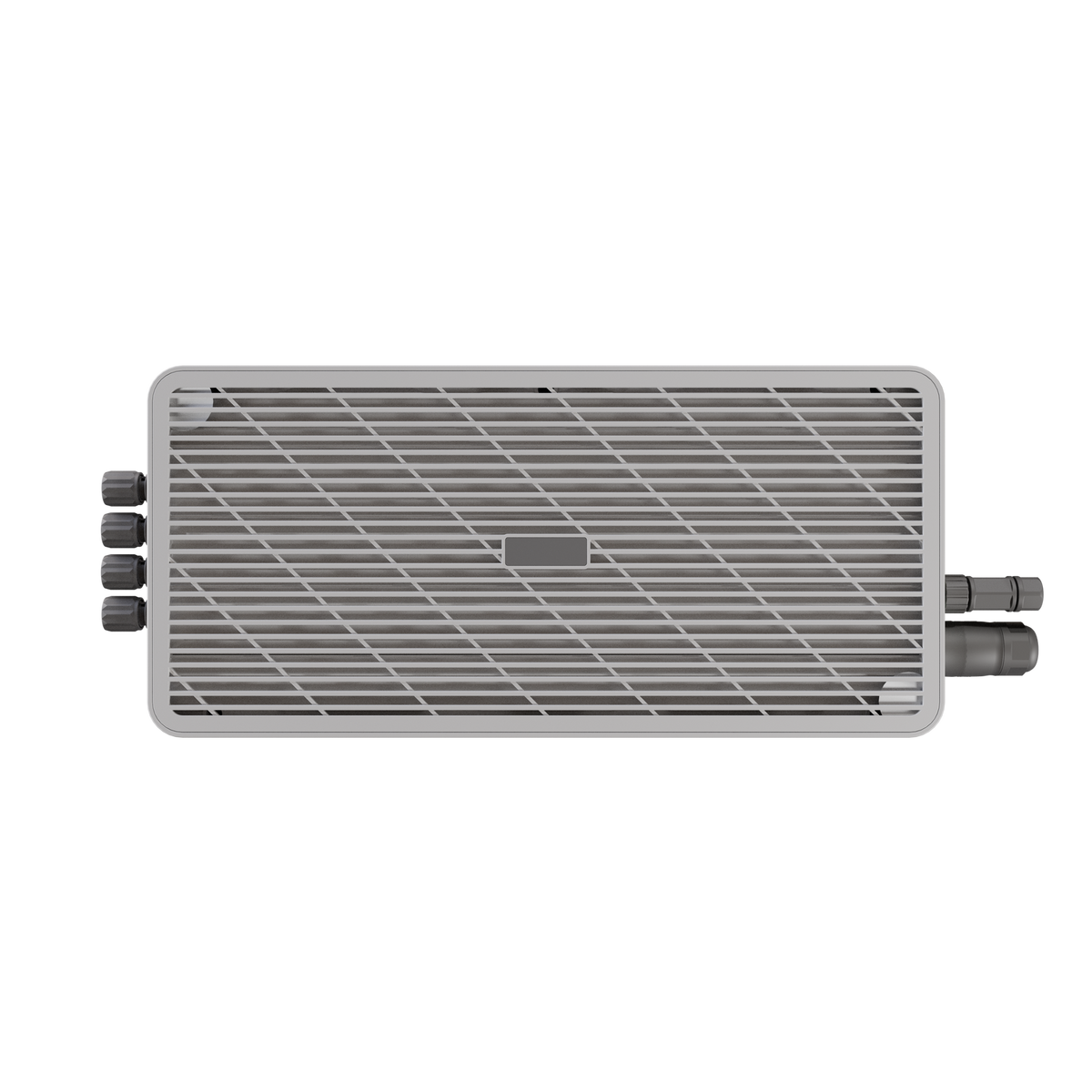

  • Deye AE-FS2.0-2H2 with expansion module

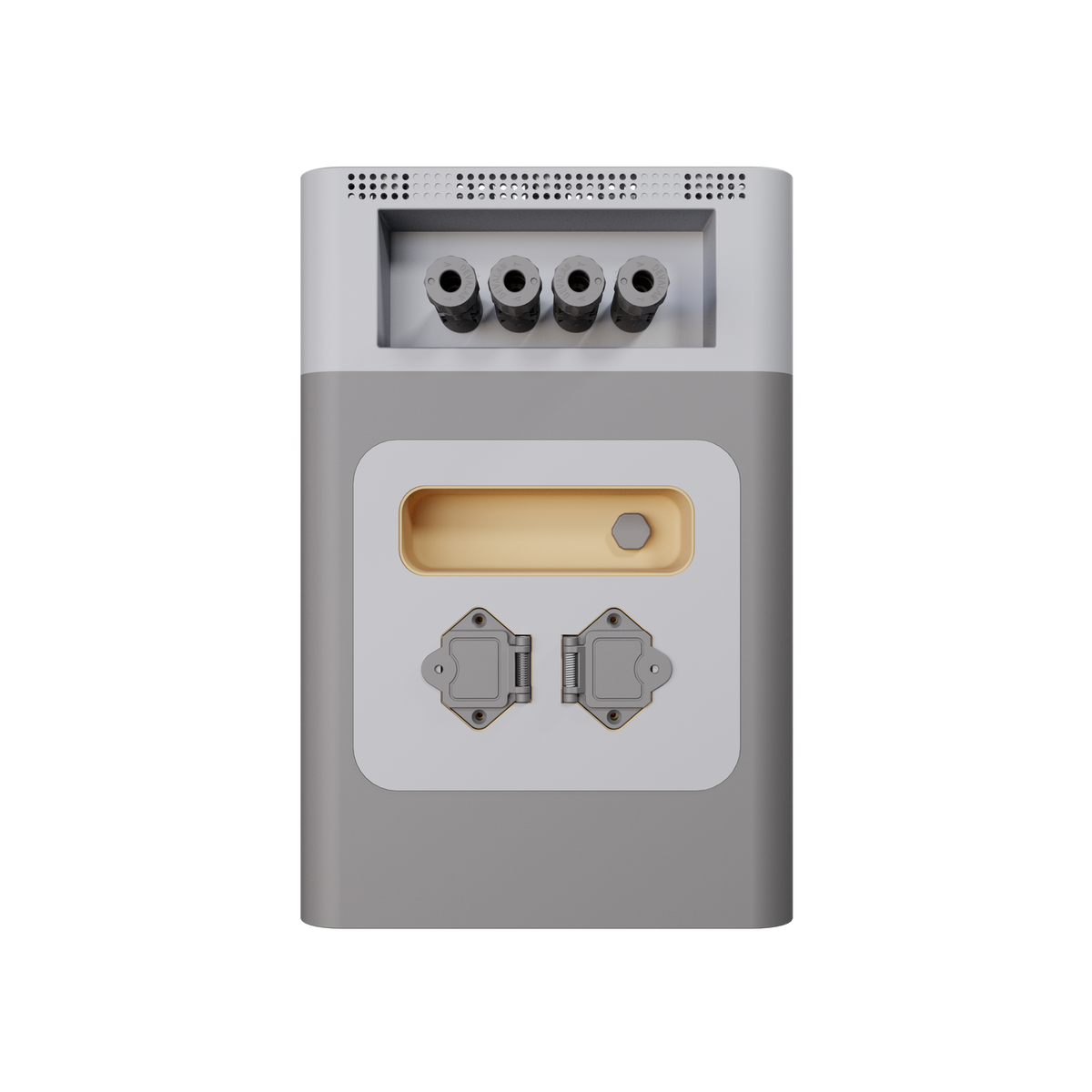

  • Deye AE-FS2.0-2H2 outdoor balcony install
$785.08
$785.08
Tax included.
Low stock! Only 10 left

Plug-in balcony storage with hybrid inverter and LiFePO₄ battery. This listing is the 4.0kWh bundle: AE-FS2.0-2H2 (2.0kWh) plus one AE-F2.0 module. Dual MPPT, 800W AC, IP65, UPS <4ms. Battery 10-year / inverter 5-year on that listing.

Model AE-FS2.0-2H2. Expand with up to four AE-F2.0 modules for 10kWh. Connect PV and the AC lead per the user manual and local balcony-PV rules.

Key specifications

Model

AE-FS2.0-2H2

This listing

4.0kWh bundle (2.0kWh + AE-F2.0)

AC / UPS

800W · <4ms · 220/230V

PV

2200W access · 2 MPPT · 20–60V

Battery

LiFePO₄ · 51.2V · >6000 cycles

Expand

Up to 10kWh with 4× AE-F2.0

Enclosure

IP65 · 450×210×321mm · 24kg

Warranty

10-year battery · 5-year inverter

Battery and expansion

Built-in 2.0kWh LiFePO₄ at 51.2V, operating 43.2–57.6V. Cycle life ≥6000 at 70% EOL (25°C, 0.5C/0.5C). This listing already includes one AE-F2.0 (2.0kWh), so nominal capacity is 4.0kWh. Add up to three more AE-F2.0 modules for 10kWh.

Intelligent BMS. Floor-standing stack. Optional wall-mount accessories are available.

PV, AC and UPS

PV access 2200W. Integrated MPPT 1000W, two trackers, 20–60V, start-up 25V, 15A input / 18A short-circuit.

Nominal AC / UPS 800W at 220/230V, 50Hz (45–55Hz), L/N/PE. Peak off-grid 2× rated for 10s. UPS switchover <4ms. Plug-in GRID lead; follow local balcony-PV rules.

Ports, outdoor use and cover

IP65, natural cooling, USB-A and Type-C, LCD, Bluetooth and Wi-Fi to Deye Cloud. Size 450×210×321mm, 24kg per main unit. Bundle of two modules is about 52kg. Footprint <0.25m². −10°C to +50°C.

Safety IEC/EN 62109-1/2, IEC 62619, UN38.3, EMC IEC/EN 61000-6-1/2/3/4. Listing also cites DIN VDE 0620-1 and CE. Battery 10-year and inverter 5-year. Confirm terms for the installation country.

Deye Balcony Power Plant with Storage | AE-FS2.0-2H2

$785.08

  • This listing

    4.0kWh

    2.0kWh + AE-F2.0

  • Rated AC / UPS

    800W

    switchover <4ms

  • PV access

    2200W

    2 MPPT · 20–60V

  • Enclosure

    IP65

    expand to 10kWh

Balcony energy storage

Power that takes care of you

AE-FS2.0-2H2 is an all-in-one balcony hub: 1000W MPPT, 800W bidirectional AC, 2.0kWh LFP, USB ports, LCD and app. This SKU ships as the 4.0kWh bundle.

Why this balcony storage kit

4.0kWh LiFePO₄ in two IP65 modules, dual MPPT, UPS under 4ms, and Deye Cloud. Expand later to 10kWh.

  • 4.0kWh LiFePO₄ bundle

    Base 2.0kWh plus one AE-F2.0. ≥6000 cycles at 70% EOL. Add up to three more modules for 10kWh.

  • Dual MPPT, 2200W PV access

    Two independent trackers, 20–60V, 15A. Store surplus for evening loads. AC-coupling is supported.

  • IP65 and UPS <4ms

    Outdoor balcony rating. UPS holds 800W loads through a grid drop in under 4ms.

  • LCD, app, USB-A and Type-C

    Read SOC on the display or in Deye Cloud over Bluetooth/Wi-Fi. Charge small devices from the unit.
Specifications

Technical data

Model AE-FS2.0-2H2
This listing 4.0kWh bundle: AE-FS2.0-2H2 + AE-F2.0
Type Hybrid inverter + LiFePO₄ (all-in-one)
Display / control LCD · Deye Cloud App (Bluetooth + Wi-Fi)
Max. PV access 2200W
Integrated MPPT input 1000W
MPP trackers / strings 2 / 1+1
MPPT voltage range 20–60V
Start-up voltage 25V
Rated PV voltage 35V (20–60V)
Max. PV input current 15A
Max. PV short-circuit current 18A
Rated AC / UPS 800W / 800W
Inverter power (listing) 1000W
AC voltage / frequency 220/230V · 50Hz (45–55Hz) · L/N/PE
Grid type Single-phase
Rated / max. grid current 3.5A / 3.7A
Peak power (off-grid) 2× rated, 10s
UPS switchover <4ms
Built-in battery 2.0kWh · 51.2V LiFePO₄
Battery operating voltage 43.2–57.6V
Cycle life ≥6000 @ 25°C, 0.5C/0.5C, 70% EOL
Expansion Up to 4× AE-F2.0 · 10kWh system
USB USB-A · Type-C
IP rating IP65
Size (W×D×H) 450×210×321mm
Weight (main unit) 24kg · ~26kg listing
Bundle net weight ~52kg (two modules)
Footprint <0.25m²
Mounting Floor-standing · optional wall-mount accessories
Operating temperature −10°C to +50°C
Storage temperature −20°C to +60°C (listing)
Humidity 15–85% non-condensing
Altitude ≤3000m
Safety / battery IEC/EN 62109-1/2 · IEC 62619 · UN38.3
EMC IEC/EN 61000-6-1/2/3/4
Grid VDE4105 · IEC 61727/62116 · EN50549-1 · G98/G99
EU listing extra DIN VDE 0620-1 · CE
Warranty (listing) 10-year battery · 5-year inverter
In the box (listing) AE-FS2.0-2H2 ×1 · AE-F2.0 ×1 · cable set · PV connectors · GRID 1.5m · CT 5m · manuals

What is included in this bundle?

One AE-FS2.0-2H2 (2.0kWh) and one AE-F2.0 (2.0kWh), 4.0kWh nominal. Dual MPPT hybrid, 800W AC. Box also lists the AE-F2.0 cable set, PV tools and connectors, 1.5m GRID lead, 5m CT, and manuals.

How does it work with balcony panels?

Connect panels to the two MPPT inputs (up to 2200W access, 1000W integrated MPPT, 20–60V). The unit can serve loads and store surplus. Follow the user manual and local plug-in solar rules.

Can I add more batteries?

Yes. One AE-F2.0 is already in this listing. The system takes up to four AE-F2.0 modules, 10kWh total.

Is it for outdoor balcony use?

IP65. −10°C to +50°C. Two modules, about 52kg combined — use a stable floor and clearance. Not a one-hand portable pack.

What happens in a grid outage?

UPS switches in under 4ms at 800W continuous. Peak off-grid is 2× rated for 10s.

What warranty is included?

10-year battery and 5-year inverter. Confirm cover for the installation country.

Ready for a 4.0kWh balcony plant

800W AC, dual MPPT, IP65, UPS <4ms. This listing is AE-FS2.0-2H2 plus one AE-F2.0.
